MCMA240UI1600ED

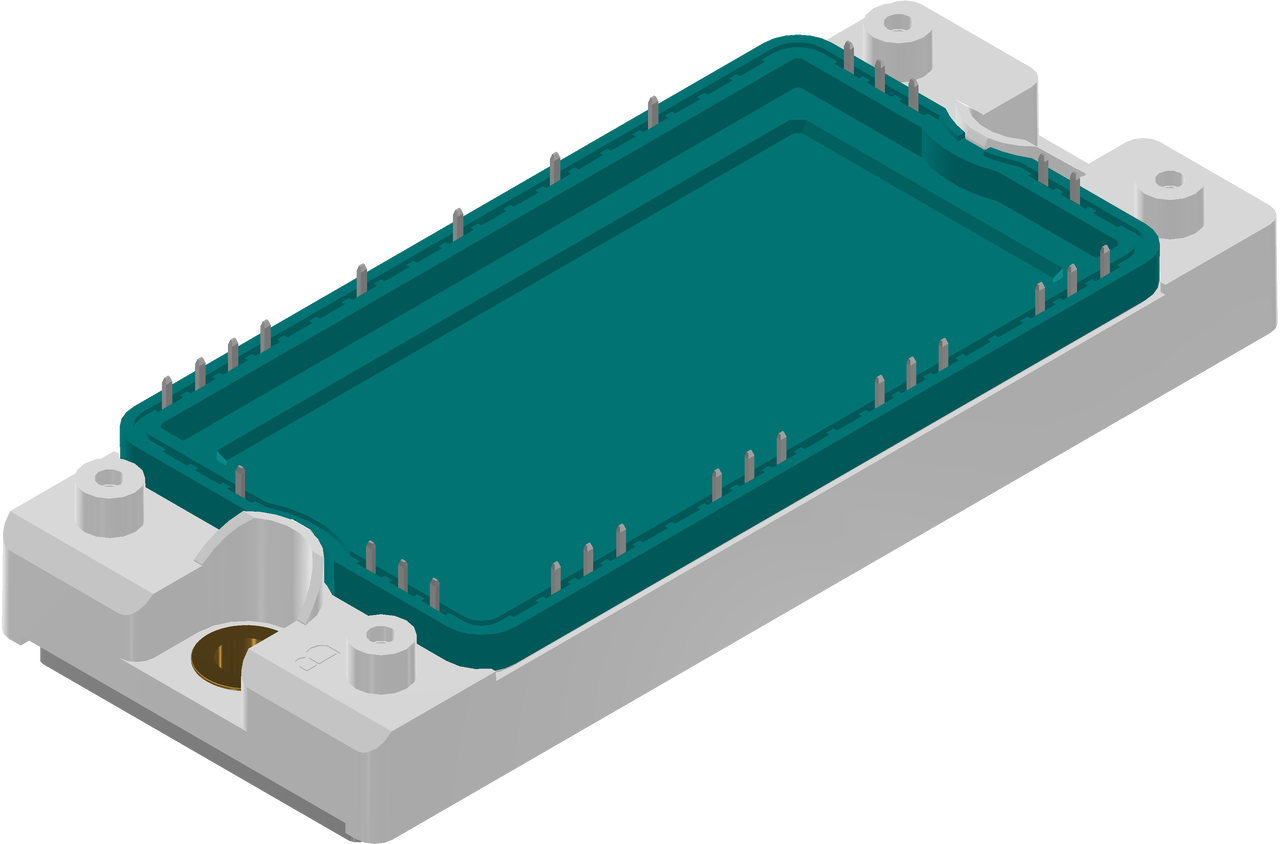

Bipolar Module - Thyristor E2-Pack | Series: Three Phase Bridges Half-And Full-ControlledThe Three Phase Bridge half and full controlled series comes in various packages and breakdown voltages up to 2200V.
| Property | Value |
|---|---|
VRRM [Rect] (V) | 1600 |
IDAV [Rect] (A) | 240 |
TC (°C) | 80 |
IFSM (A) | 1500 |
TVJM (°C) | 150 |
rF (mΩ) | 5.3 |
RthJC (K/W) | 0.4 |
VFO (V) | 0.83 |
RthCH (K/W) | 0.1 |
MCMA240UI1600ED Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| MCMA240UI1600ED | Bipolar Module - Thyristor E2-Pack | View More |
