NYC0102BLT1G

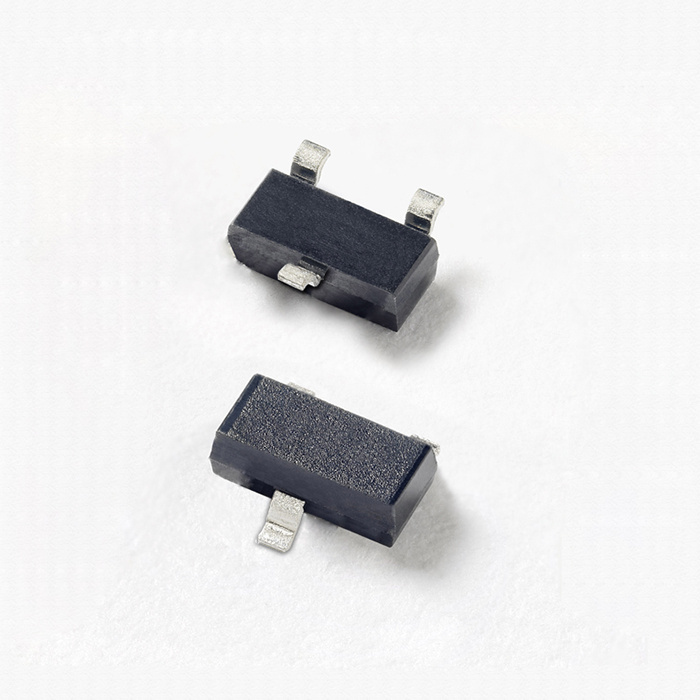

THY SOT23 SCR | Series: Low Power SCR up to 1200V
The NYC0102BLT1G is a 200 V, 0.25 A sensitive gate Silicon Controlled Rectifier in the SOT-23 package. It is designed for highly-sensitive triggering in low-power switching applications.
End Products:
- Ground Fault Interrupter (GFCI)
- Relay and Lamp drivers
- Small motor control
- Gate driver for large Thyristors
- Sensing and detection circuits, smoke alarm detector
- LCV TV power supply
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 0.25 |
VDRM (V) | 200 |
IGTMAX (mA) | 0.2 |
ITSM 60Hz (A) | 7 |
Gate Trigger Voltage MAX | 0.8 |
- Miniature surface mount SOT-23 package for high package density
- High ITSM for small SOT-23 package
- High dv/dt, higher noise immunity
- Ground Fault Interrupter (GFCI)
- Relay and Lamp drivers
- Small motor control
- Gate driver for large Thyristors
- Sensing and detection circuits, smoke alarm detector
- LCV TV power supply
- Lead-free and halogen-free
- Suitable for high-density PCB
- Provides optimized performance per board space utilization
- High performance blocking control stste under the influence of voltage transients
NYC0102BLT1G Applications
- NYC0102BLT1G is highly Suitable for low-power switching application(s)
NYC0102BLT1G Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| NYC0102BLT1G | THY SOT23 SCR |  7/14/2017 | No |  CoC_RoHS9_NYC0102BLT1G | REACH_SVHC Declaration_NYC0102BLT1G.pdf | Does Not Contain | Yes7/14/2017 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
