S6002ESRP
Sen SCR 600V 2A 200 ?A TO92WB | Series: Low Power SCR up to 1200V
The S6002xS offers high very high di/dt capability through small die planar construction design. It is glass-passivated to ensure long term reliability and parametric stability.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 2 |
VDRM (V) | 600 |
IGTMAX (mA) | 0.2 |
ITSM 60Hz (A) | 2.5 |
IDRM@VDRM 25°C (mA) | 0.005 |
VTM (V) | 1.5 |
di/dt @ 110°C (A/µs) | 500 |
Itav (A) | 1.2 |
tgt (µs) | 3 |
dvdt at 25C | 25 |
Non-Repetitive Surge Current ITSM 50Hz | 22.5 |
Igm | 1 |
IDRM@VDRM 125°C (mA) | 0.5 |
PGAV (W) | 0.2 |
Turn-off Time (µs) | 55 |
Gate Trigger Voltage MAX | 0.8 |
Min Gate Trigger Current IGT MAX | 0.02 |
Type | Sensitive Gate |
IH (A) | 5 |
I2t | 2.5 |
- Surge capability > 25 Amps
- Blocking voltage (VDRM / VRRM) capability — up to 600 V
- High di/dt capability of 500 A/μs
- Improved turn-off time (tq) < 55 μsec
- Sensitive gate for direct microprocessor interface

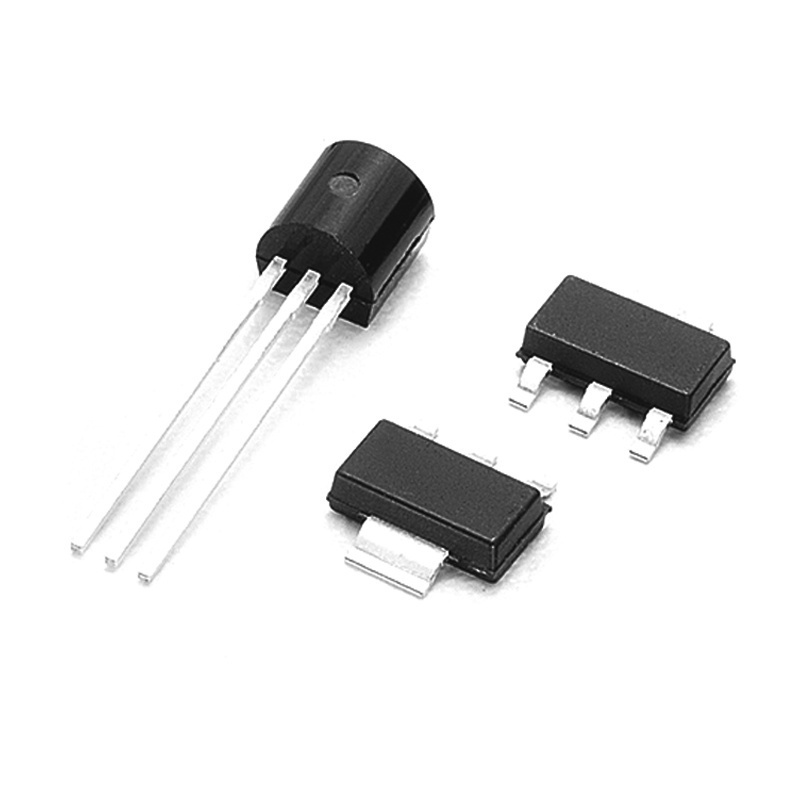

- Thru hole and surface mount packages
- RoHS compliant and Halogen-free
S6002ESRP Applications
- The S6002xS is specifically designed for capacitor discharge application such as high-power gas flame ignition.
