S602ES1
Sen SCR 600V 1.5A 100 µA TO92WB | Series: Low Power SCR up to 1200V
New 1.5Amp sensitive gate SCR series offers high static dv/dt with low turn off time (tq) through small die planar construction design. All SCR™ junctions are glass — passivated to ensure long term reliability and parametric stability.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 1.5 |
VDRM (V) | 600 |
IGTMAX (mA) | 0.1 |
ITSM 60Hz (A) | 15 |
IDRM@VDRM 25°C (mA) | 0.005 |
VTM (V) | 1.7 |
di/dt @ 110°C (A/µs) | 50 |
Itav (A) | 0.95 |
tgt (µs) | 3 |
Non-Repetitive Surge Current ITSM 50Hz | 12.5 |
dv/dt @ 125°C (V/µs) | 25 |
Igm | 1 |
IDRM@VDRM 125°C (mA) | 0.5 |
PGAV (W) | 0.1 |
Turn-off Time (µs) | 35 |
Gate Trigger Voltage MAX | 0.8 |
Peak Reverse Gate Voltage | 5 |
Min Gate Trigger Current IGT MAX | 0.015 |
Type | Sensitive Gate |
IH (mA) | 3 |
I2t | 0.78 |
- RoHS Compliant

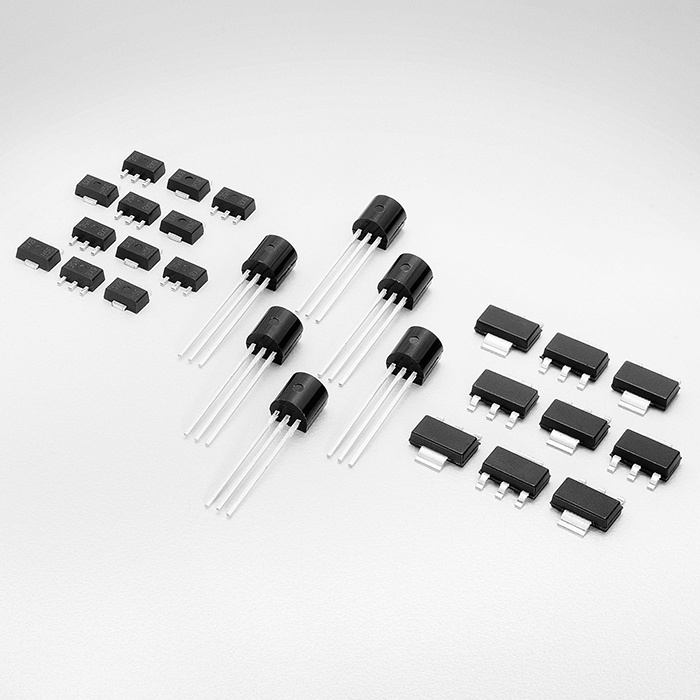

- Through hole and surface mount packages
- Blocking voltage (VDRM/VRRM) capability - to 600V
- Surge capability >15 A
- Improved turn-off time (Tq) < 35μsec
- Sensitive gate for direct microsprocessor interface
S602ES1 Applications
- The Sx02xS series is specifically designed for Gas Ignition applications that require high pulse surge current capability.
