S8X5ECS

Product Status| Activei

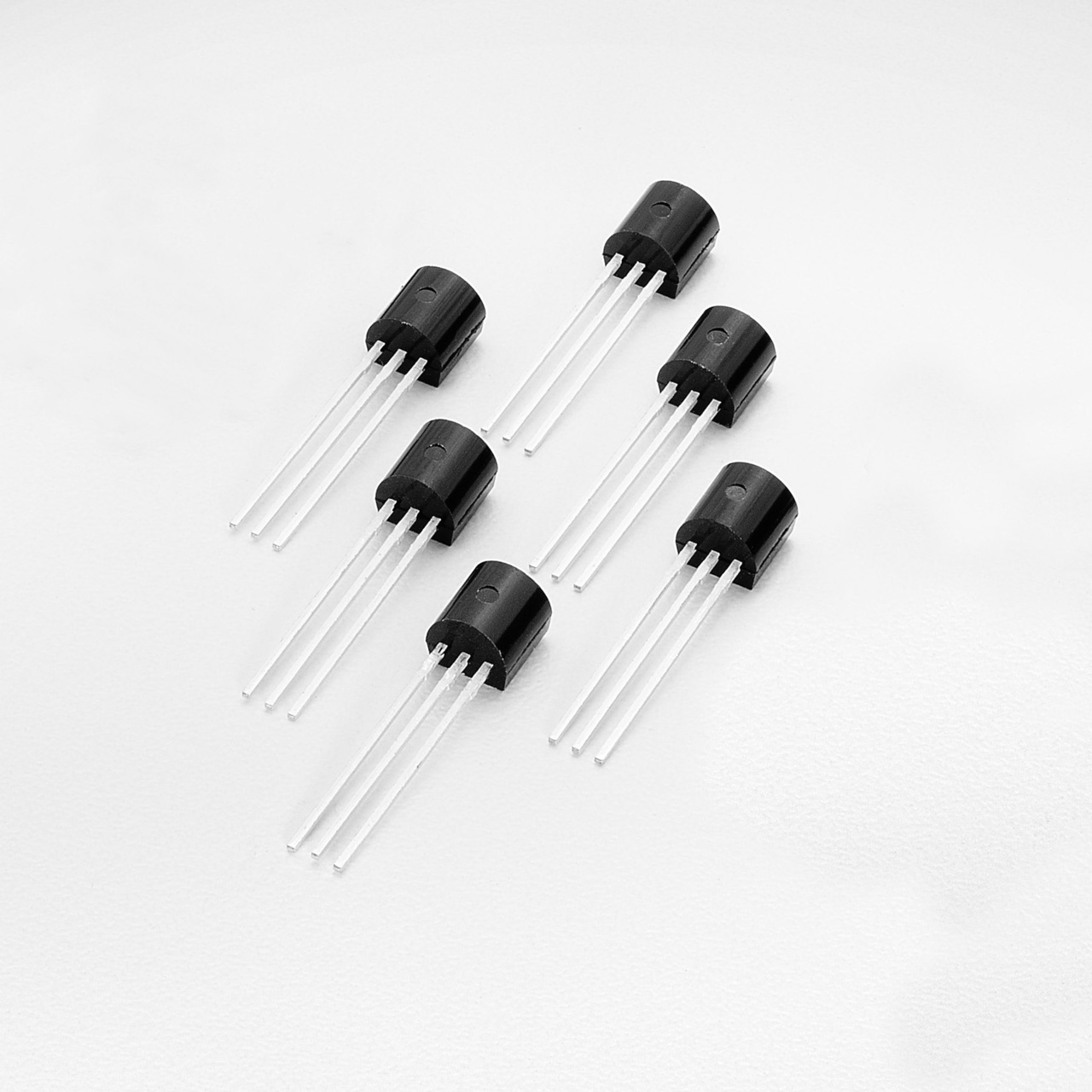

Power Semiconductor Discrete Thyristor S8X5ECS Image

S8X5ECS

Sen SCR 800V .5A 100 ?A TO92WB | Series: Low Power SCR up to 1200V
info

The S8X5ECS offers a high static dv/dt with a low turn off (tq) time. It is specifically designed for GFCI (Ground Fault Circuit Interrupter) and AFCI (Arc Fault Circuit Interrupter), RCD (Residual Current Device) and RCBO (Residual Current Circuit Breaker with Overload Protection) applications. All SCRs junctions are glass-passivated to ensure long term reliability and parametric stability.

PropertyValue
On-State Current (Itrms) (A)
0.5
VDRM (V)
800
IGTMAX (mA)
0.1
ITSM 60Hz (A)
12
IDRM@VDRM 25°C (mA)
0.003
VTM (V)
1.8
di/dt @ 110°C (A/µs)
80
Itav (A)
0.3
tgt (µs)
2.3
dvdt at 25C
60
Non-Repetitive Surge Current ITSM 50Hz
10
dv/dt @ 125°C (V/µs)
40
Igm
0.5
IDRM@VDRM 125°C (mA)
0.5
PGAV (W)
0.2
Turn-off Time (µs)
35
Gate Trigger Voltage MAX
0.8
Peak Reverse Gate Voltage
8
Min Gate Trigger Current IGT MAX
0.02
Type
Sensitive Gate
Mount Method
Through Hole Radial
IH (A)
3
I2t
0.5
  • Thru-hole packages
  • Surge current capability
  • Blocking voltage ( VDRM / VRRM ) capability - up to 800 V
  • Non-repetitive direct surge peak off-state voltage (VDSM) up to 1200V
  • Non-repetitive reverse surge peak off-state voltage (VRSM) up to 1 kV
  • High dv/dt noise immunity
  • Improved turn-off time (tq)
  • Sensitive gate for direct microprocessor interface
  • Halogen free and RoHS compliant
