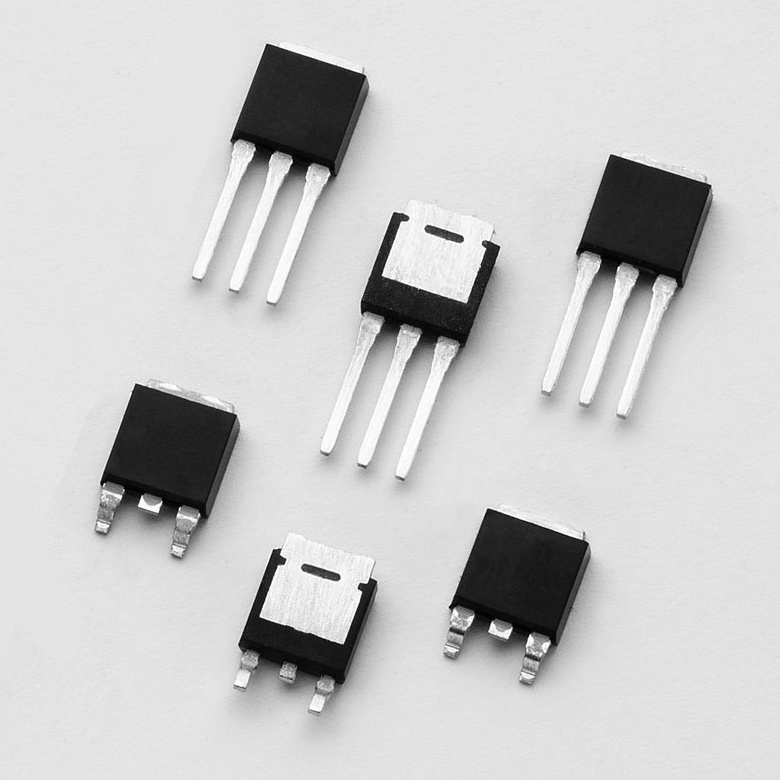

SJ6004DS2TP
Sen SCR 600V 4A 200µA TO252 | Series: Low Power SCR up to 1200V
This SJxx04x high temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions These SCRs have a low gate current trigger level of 20μA maximum at approximately 1.5V.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 4 |
VDRM (V) | 600 |
IGTMAX (mA) | 0.2 |
ITSM 60Hz (A) | 30 |
IDRM@VDRM 25°C (mA) | 0.005 |
VTM (V) | 1.6 |
di/dt @ 110°C (A/µs) | 50 |
Itav (A) | 2.56 |
tgt (µs) | 3 |
Non-Repetitive Surge Current ITSM 50Hz | 25 |
dv/dt @ 125°C (V/µs) | 45 |
Igm | 0.5 |
IDRM@ VDRM 150°C (mA) | 3 |
PGAV (W) | 0.1 |
Turn-off Time (µs) | 60 |
Gate Trigger Voltage MAX | 0.8 |
Peak Reverse Gate Voltage | 6 |
Min Gate Trigger Current IGT MAX | 0.02 |
Type | Sensitive Gate |
IH (A) | 6 |
I2t | 3.7 |
- Voltage capability up to 600 V
- Surge capability up to 100 A at 60Hz half cycle
- 150°C maximum junction temperature
- Halogen free and RoHS compliant
SJ6004DS2TP Applications
- Capacitive discharge system for motorcycle engines
- Portable generator engine ignition systems
- Strobe lights
- Nailers
- Rectifiers
- Battery voltage regulators and converters
- Commercial and home appliances
