SJ6008D1RP

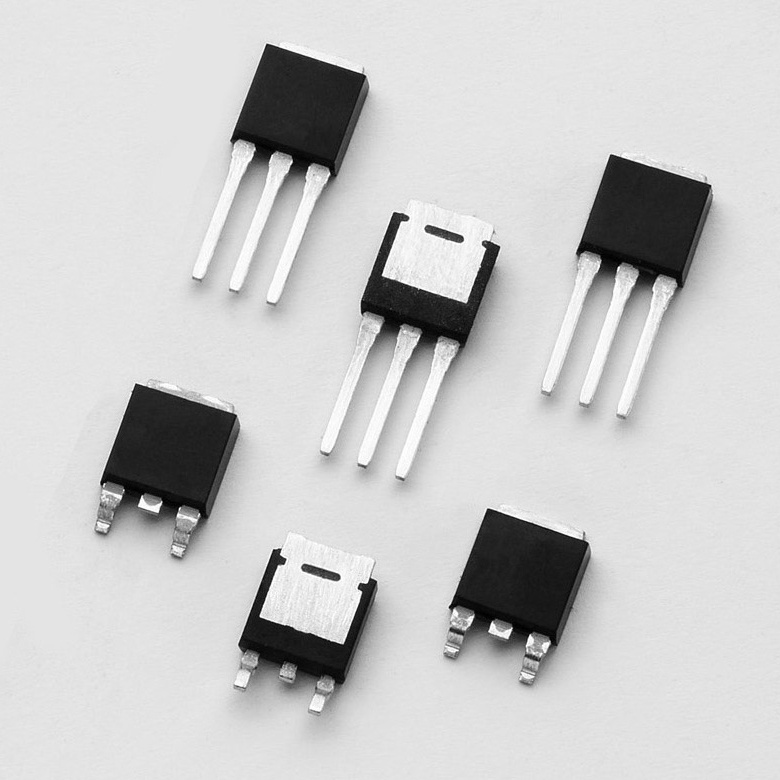

SCR 600V 8A TO252 | Series: Low Power SCR up to 1200V
This SJxx080xx high temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 6mA or 15mA maximum at approximately 1.5V, with a sensitive version of this series having a gate trigger current less than 200µA. The sensitive gate SCR version is easily triggered by sense coils, proximity switches, and microprocessors.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 8 |
VDRM (V) | 600 |
IGTMAX (mA) | 6 |
ITSM 60Hz (A) | 100 |
IDRM@VDRM 25°C (mA) | 0.01 |
VTM (V) | 1.6 |
di/dt @ 110°C (A/µs) | 100 |
tgt (µs) | 0.5 |
Non-Repetitive Surge Current ITSM 50Hz | 83 |
Igm | 0.5 |
IDRM@ VDRM 150°C (mA) | 3 |
PGAV (W) | 0.1 |
Turn-off Time (µs) | 30 |
Gate Trigger Voltage MAX | 1.5 |
dvdt at 150C | 50 |
Type | Standard Gate |
IH (A) | 20 |
I2t | 41 |
- Voltage capability up to 600 V
- 150°C maximum junction temperature
- Surge capability up to 100 A at 60 Hz half cycle
- Halogen free and RoHS compliant
SJ6008D1RP Applications
- Capacitive discharge system for motorcycle engines
- Portable generator engine ignition systems
- Strobe lights
- Nailers
- Rectifiers
- Battery voltage regulators and converters
- Commercial and home appliances
