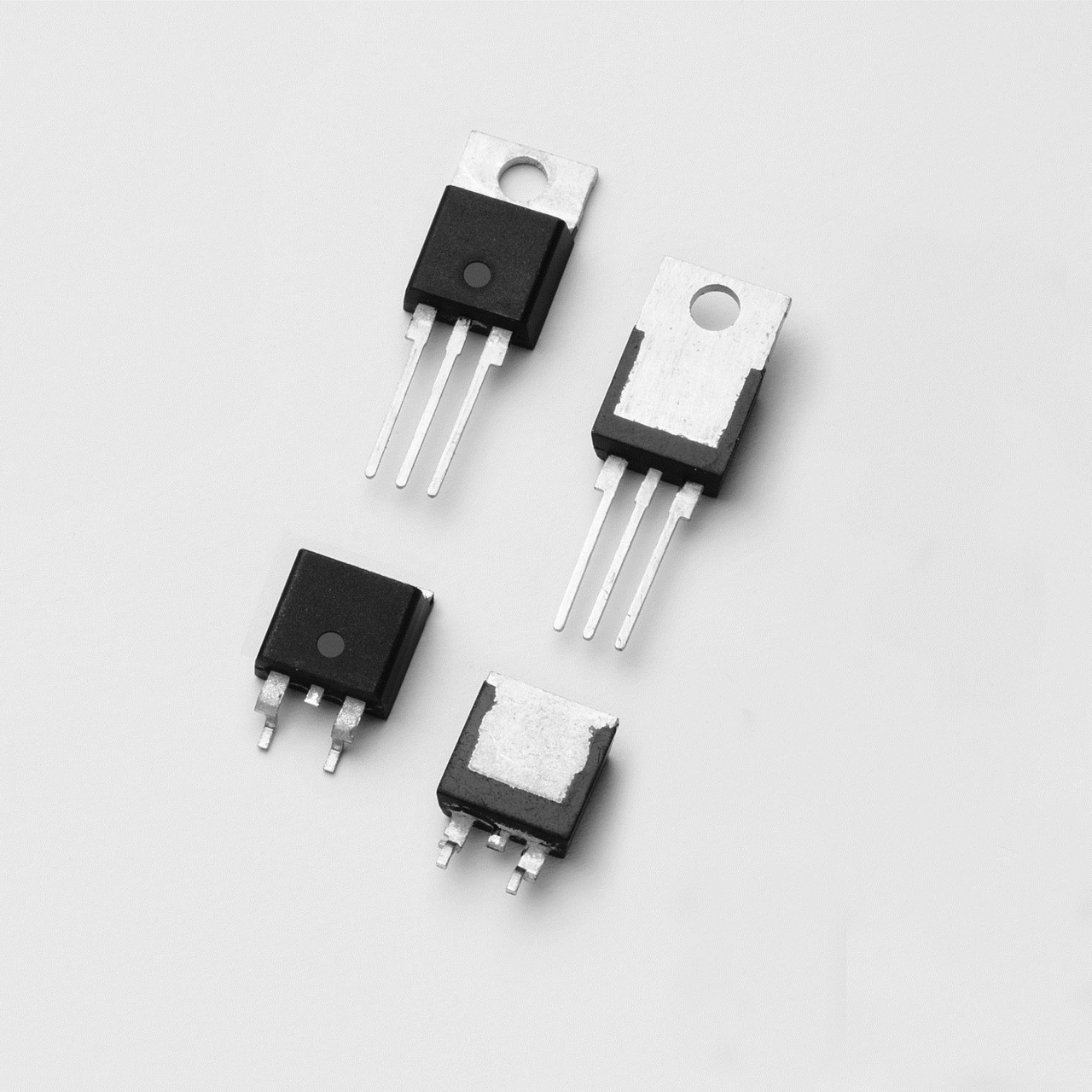

SJ6040RTP
High TJ SCR 600V 40A TO220 Tube pack | Series: Low Power SCR up to 1200V
This SJxx40xx high temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls and AC rectifier and voltage regulator.
These SCRs have a low gate current trigger level of 40 mA maximum at approximately 1.5 V, with a sensitive version of this series having a gate trigger current of 15 mA maximum.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 40 |
VDRM (V) | 600 |
IGTMAX (mA) | 40 |
ITSM 60Hz (A) | 520 |
IDRM@VDRM 25°C (mA) | 0.01 |
VTM (V) | 1.7 |
di/dt @ 110°C (A/µs) | 150 |
Itav (A) | 25 |
tgt (µs) | 2 |
Gate Non-Trigger Voltage | 0.2 |
Non-Repetitive Surge Current ITSM 50Hz | 430 |
dv/dt @ 125°C (V/µs) | 600 |
Igm | 4 |
IDRM@VDRM 125°C (mA) | 2 |
PGAV (W) | 1 |
Turn-off Time (µs) | 35 |
Gate Trigger Voltage MAX | 1.5 |
Min Gate Trigger Current IGT MAX | 5 |
Type | High Tj Standard SCRs |
IH (A) | 60 |
I2t | 1122 |
- High junction temperature
- Voltage capability up to 600 V
- Surge capability up to 520 A at 60 Hz half cycle
- Halogen free and RoHS compliant
SJ6040RTP Applications
- Ac rectifiers
- Commercial and home appliances
- Exercise equipment
- Industrial power tools
- Solid state ac switches
- Voltage regulators
