SJxx08VTP

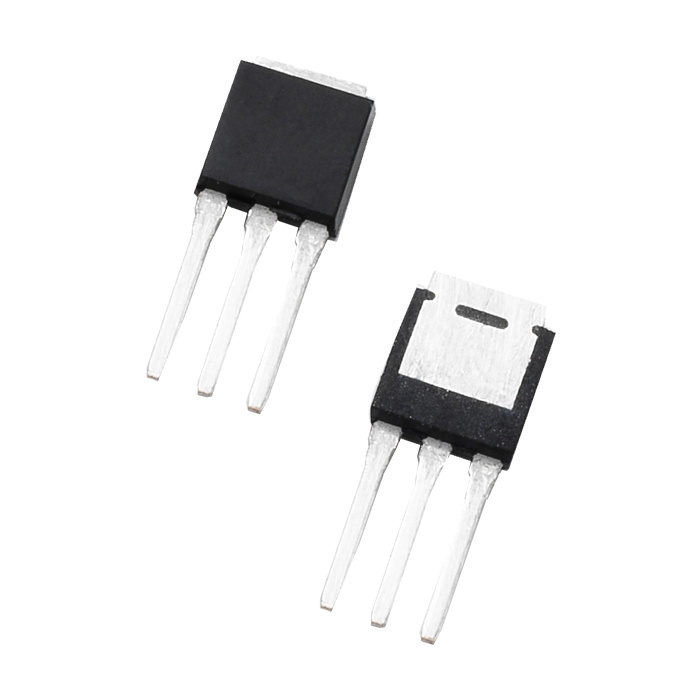

HT SCR 800V 8A TO251 | Series: Low Power SCR up to 1200V
The SJxx080xx high temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/rectifiers, and capacitive discharge ignitions.
These SCRs have a low gate current trigger level of 6 mA or 15 mA maximum at approximately 1.5 V gate trigger voltage, with a sensitive version of this series having a gate trigger current less than 200 μA. The sensitive gate SCR version is easily triggered by sense coils, proximity switches, and microprocessors.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 8 |
VDRM (V) | 800 |
IGTMAX (mA) | 15 |
ITSM 60Hz (A) | 100 |
IDRM@VDRM 25°C (mA) | 0.01 |
VTM (V) | 1.6 |
di/dt @ 110°C (A/µs) | 100 |
Itav (A) | 5.1 |
tgt (µs) | 2 |
Gate Non-Trigger Voltage | 0.2 |
Non-Repetitive Surge Current ITSM 50Hz | 83 |
dv/dt @ 125°C (V/µs) | 200 |
Igm | 0.5 |
IDRM@ VDRM 150°C (mA) | 3 |
IDRM@VDRM 125°C (mA) | 1 |
PGAV (W) | 0.1 |
Turn-off Time (µs) | 35 |
Gate Trigger Voltage MAX | 1.5 |
dvdt at 150C | 120 |
Type | Standard SCRs |
Mount Method | Through Hole |
IH (A) | 0.03 |
I2t | 41 |
- Voltage capability up to 800 V
- Maximum Tvj(max) of 150 °C
- Surge current capability up to 100 A at 60 Hz half cycle
SJxx08VTP Applications
- Capacitive discharge system for motorcycle engine CDI
- Portable generator engine ignition
- Strobe lights
- Nailers
