SK002TS

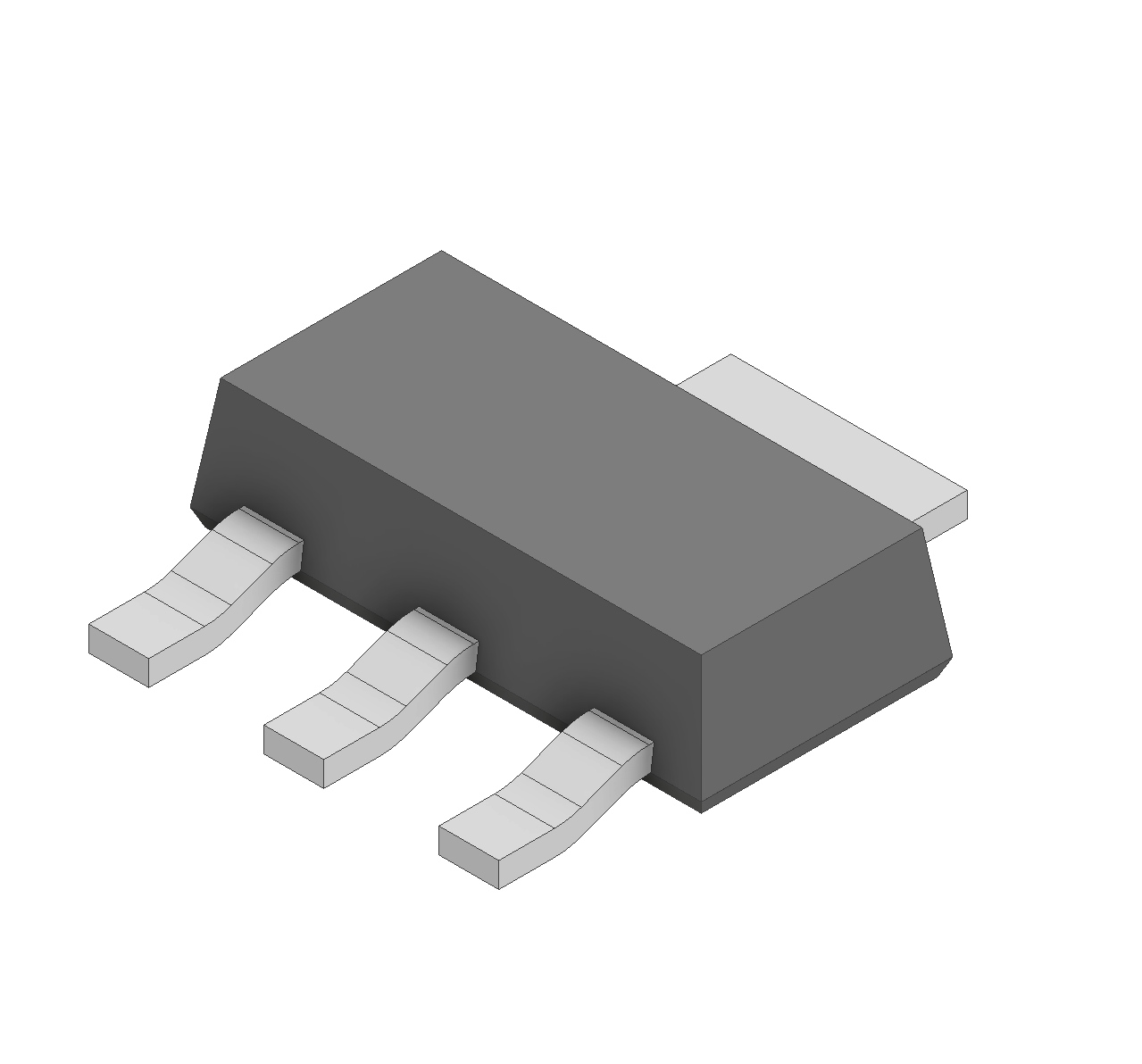

Sen SCR 1000V 1.5A 100 µA SOT223 | Series: Low Power SCR up to 1200V
The SK002xSx series offers a high static dv/dt with a low turn off (tq) time.
All SCR junctions are glass-passivated to ensure long term reliability and parametric stability.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 1.5 |
VDRM (V) | 1000 |
IGTMAX (mA) | 0.1 |
ITSM 60Hz (A) | 24 |
IDRM@VDRM 25°C (mA) | 0.003 |
VTM (V) | 1.8 |
di/dt (A/µs) | 80 |
Itav (A) | 0.9 |
tgt (µs) | 2.3 |
Gate Non-Trigger Voltage | 0.2 |
Non-Repetitive Surge Current ITSM 50Hz | 20 |
dv/dt @ 125°C (V/µs) | 250 |
Igm | 0.5 |
IDRM@VDRM 125°C (mA) | 0.5 |
PGAV (W) | 0.2 |
Turn-off Time (µs) | 35 |
Gate Trigger Voltage MAX | 0.8 |
Type | Sensitive Gate |
Mount Method | Surface Mount |
IH (A) | 0.003 |
I2t | 2 |
- Surge current capability up to 24 A
- Non-repetitive direct surge peak off-state voltage (VDSM/VRSM) up to 1250 V
- High noise immunity against dv/dt up to 250 V/μs
- Sensitive gate for direct microprocessor interface
- Simplified input current protection
- Lower effort in input voltage protection
- Suited for environments with high EMI
- Allows direct microprocessor drive
SK002TS Applications
- Ground Fault Circuit Interrupter
- Arc Fault Circuit Interrupter
- Residual Current Device
- Residual Current Circuit Breaker with Overload Protection
SK002TS Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| SK002TSRP | Sen SCR 1000V 1.5A 100 µA SOT223 | View More |
