SRU6008DS2RP

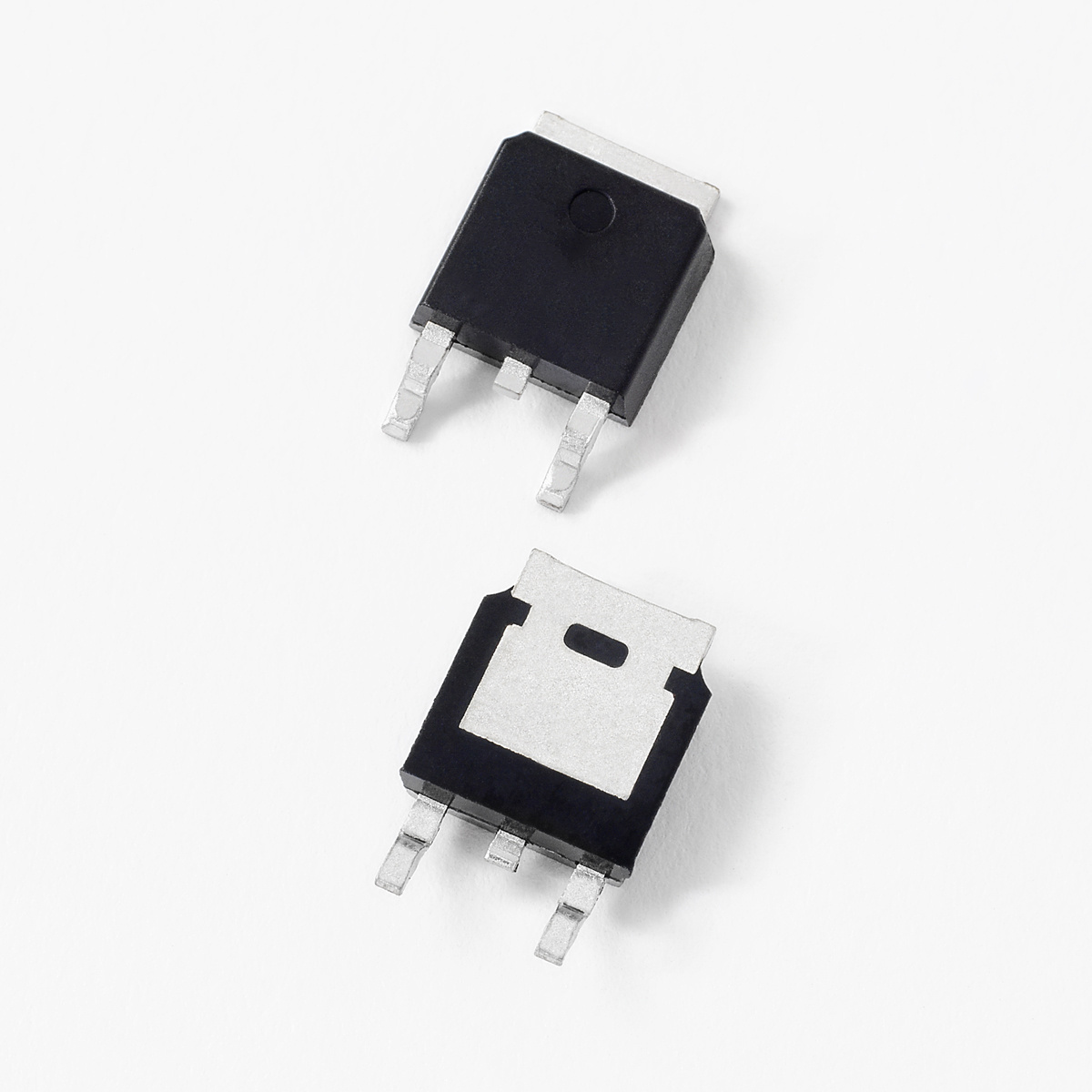

SCR Uni 600V 8A TO252 | Series: Low Power SCR up to 1200V
The SRU6008xSx SCR series is specifically designed for high voltage capacitor discharge applications.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 8 |
VDRM (V) | 600 |
IGTMAX (mA) | 0.2 |
ITSM 60Hz (A) | 100 |
IDRM@VDRM 25°C (mA) | 0.005 |
VTM (V) | 1.6 |
di/dt @ 110°C (A/µs) | 100 |
Itav (A) | 5.1 |
tgt (µs) | 6 |
Gate Non-Trigger Voltage | 0.1 |
Non-Repetitive Surge Current ITSM 50Hz | 83 |
dv/dt @ 125°C (V/µs) | 15 |
Igm | 0.5 |
IDRM@ VDRM 150°C (mA) | 2 |
PGAV (W) | 0.1 |
Turn-off Time (µs) | 55 |
Gate Trigger Voltage MAX | 1 |
Min Gate Trigger Current IGT MAX | 0.02 |
Type | Sensitive Gate |
Mount Method | Surface Mount |
Gate Trigger Voltage at 110C | 0.8 |
I2t | 41 |
- Forward blocking voltage capability up to 600 V
- 150ºC Maximum junction temperature
- High di/dt of 100 A/μs
- Reverse direction not desgined to function
SRU6008DS2RP Applications
- Capacitive discharge ignitions system for motorcycle engines and portable generators
- Battery voltage regulators
- Switched-mode power supplies
