STP802U2SRP

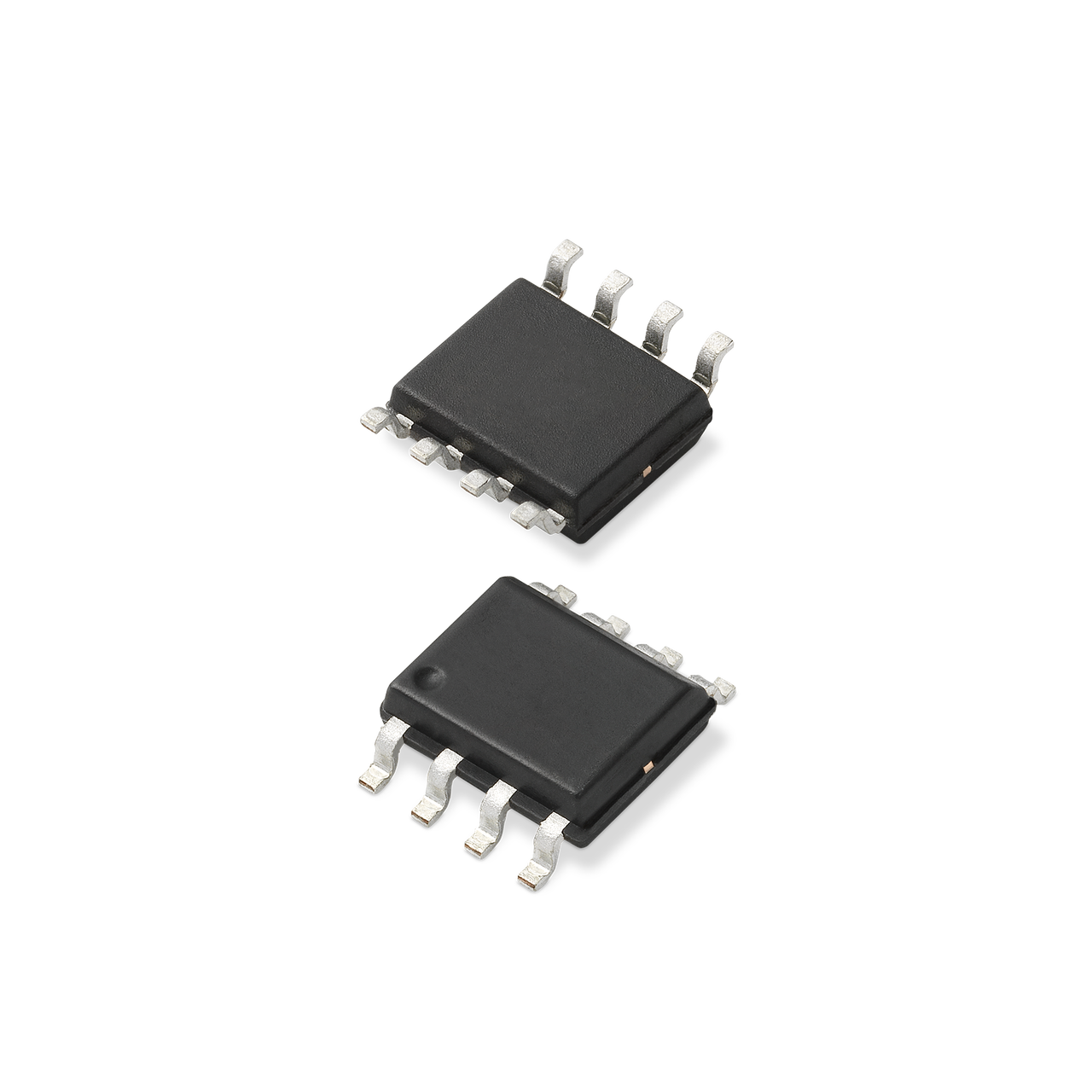

Name: Sen SCR 800V 1.5A 200 µA SOP8
Brand: Littelfuse

Product Status| Activei

STP802U2SRP

Sen SCR 800V 1.5A 200 µA SOP8 | Series: Low Power SCR up to 1200V

This 1.5 A Dual SCR part offers a high static dv/dt with a low turn off (tq) time. It is specifically designed for Ground Fault Circuit Interrupter (GFCI) and Arc Fault Circuit Interrupter (AFCI), Residual Current Device (RCD) and Residual Current Circuit Breaker with Overload Protection (RCBO) applications.

Property	Value
On-State Current (Itrms) (A)	1.5
V_DRM (V)	800
I_GTMAX (mA)	0.1
I_TSM 60Hz (A)	24
V_TM (V)	1.8
di/dt @ 110°C (A/µs)	80000
t_gt (µs)	3
Gate Non-Trigger Voltage	0.2
Non-Repetitive Surge Current ITSM 50Hz	20
dv/dt @ 125°C (V/µs)	40
Igm	0.5
P_GAV (W)	0.2
Turn-off Time (µs)	35
Gate Trigger Voltage MAX	0.8
Min Gate Trigger Current IGT MAX	0.02
Type	Sensitive Gate
Mount Method	Surface Mount
I_H (A)	0.003
I²t	2

Glass-passivated junctions
Surge capability up to 20 A
Non-repetitive forward direction peak off-state voltage, VDSM, up to 1150 V
Non-repetitive reverse blocking voltage, VRSM, up to 900 V
High dv/dt noise immunity
Sensitive gate for direct microprocessor interface
Halogen-free and RoHS compliant

STP802U2SRP Applications

Highlights Section

GFCI
AFCI
Circuit breaker
