TCR22-6

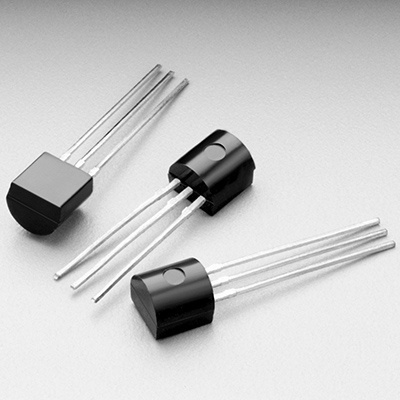

Name: Sen SCR 400V 1.5A 200µA TO92
Brand: Littelfuse

Product Status| Activei

TCR22-6

Sen SCR 400V 1.5A 200µA TO92 | Series: Low Power SCR up to 1200V

Excellent unidirectional switches for phase control applications such as heating and motor speed controls.

Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.

Property	Value
On-State Current (Itrms) (A)	1.5
V_DRM (V)	400
I_GTMAX (mA)	0.2
I_TSM 60Hz (A)	20
I_DRM@V_DRM 25°C (mA)	0.001
V_TM (V)	1.5
di/dt @ 110°C (A/µs)	50
Itav (A)	0.95
t_gt (µs)	20
dvdt at 25C	40
Non-Repetitive Surge Current ITSM 50Hz	16
Igm	1
P_GAV (W)	0.1
I_DRM@ V_DRM 110°C (mA)	0.1
Turn-off Time (µs)	50
Gate Trigger Voltage MAX	0.8
Peak Reverse Gate Voltage	6
Type	Sensitive Gate
I_H (A)	5
Gate Trigger Voltage at 110C	0.25
I²t	1.6

RoHS compliant
Glass-passivated junctions
Voltage capability up to 600 V
Surge capability up to 20 A

TCR22-6 Applications

Highlights Section

Capacitive discharge systems for strobe lights and gas engine ignition
Commercial and home appliances
Power tool controls

TCR22-6 Resources

Link has been copied to clipboard

Showing 1 to 3 of 3 Total Results

Part Number	Part Description	RoHS	Pb-Free	RoHS (2015/863/EU) Certificate	REACH (SVHC's) Declaration	REACH (SVHC's)	Halogen Free
TCR22-6	Sen SCR 400V 1.5A 200µA TO92	11/1/2004	No	CoC_RoHS9_TCR22-6	REACH_SVHC Declaration (Contain)_TCR22-6	Contains	Yes12/11/2009	View More
TCR22-6AP	Sen SCR 400V 1.5A 200µA TO92	11/1/2004	No	CoC_RoHS9_TCR22-6AP			Yes12/11/2009	View More
TCR22-6RP	Sen SCR 400V 1.5A 200µA TO92	11/1/2004	No	CoC_RoHS9_TCR22-6RP	REACH_SVHC Declaration (Contain)_TCR22-6RP	Contains	Yes12/11/2009	View More

If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
