CMA160E1600HF
Power Thyristor Discretes - SCR PLUS247 | Series: Standard SCR up to 1800V
| Property | Value |
|---|---|
VRRM / VDRM (V) | 1600 |
ITAV (A) | 160 |
TC (°C) | 80 |
ITSM (A) | 1400 |
(dv/dt)cr (V/µs) | 1000 |
TVJM (°C) | 150 |
VT0 (V) | 0.88 |
rT (mΩ) | 4.96 |
RthJC [Thy] (K/W) | 0.15 |
RthCH (K/W) | 0.15 |

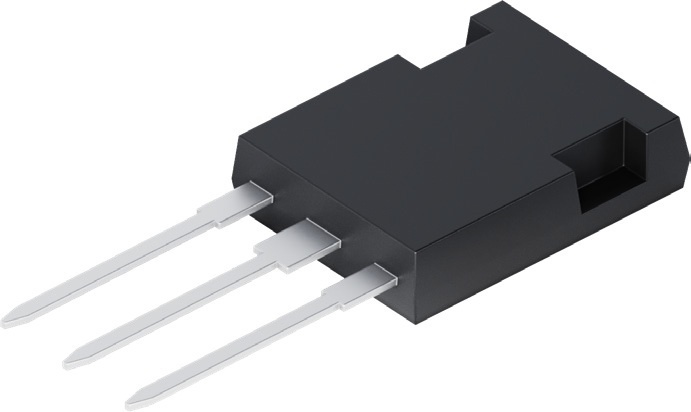

Package Type | PLUS247 |
- 1600 V 160 A at Tc = 80ºC in PLUS247 package
- Thermal resistance of RthJC = 0.15 K/W
- Leakage current Ir < 200 µA at Tc = 25ºC
- Max. forward surge current ITSM = 1.4 kA at Tvj = 45ºC
- Max. voltage drop VT = 1.66 V at Tvj = 125ºC, ITAV = 160 A
- Higher current compared to TO247
- Simplified thermal management
- Low off-state losses
- Improved surge robustness
- Increased system efficiency
CMA160E1600HF Applications
- Soft starters
- Industrial Power Supplies (UPS, SMPS & Power converters)
- Solid State Relays (SSRs)
- Crowbar and Discharge Circuit
