LX807MB
Sen SCR 600V .8A 200?A SOT89 | Series: Low Power TRIAC up to 1200V
New 0.8Amp bi-directional solid state switch series offering direct interface to microprocessor drivers in economical TO-92 and surface mount packages. The die voltage blocking junctions are glass-passivated to ensure long term reliability and parametric stability.
The LX8 Series is especially designed for low current applications such as heating controls in hair care products, as well as replacement of mechanical switch contacts where long life is required.
The LX8 Series is especially designed for low current applications such as heating controls in hair care products, as well as replacement of mechanical switch contacts where long life is required.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 0.8 |
VDRM (V) | 400 |
ITSM 60Hz (A) | 9.5 |
tgt (µs) | 2 |
dv/dt @ 110°C (V/µs) | 10 |
Igtm | 1 |
IDRM@VDRM 25°C (mA) | 0.005 |
Type | Sensitive Gate |
IH (A) | 5 |
di/dt @ 110°C (A/µs) | 20 |
IGTQ4 MAX (mA) | 5 |
dvdt Minimum | 1.5 |
PGAV (W) | 0.1 |
IGTQ2 MAX (mA) | 3 |
Nominal Melting I2T (A2sec) | 0.37 |
IDRM@ VDRM 110°C (mA) | 0.1 |
IGTQ1 MAX (mA) | 3 |
Non-Repetitive Surge Current ITSM 50Hz | 8 |
IGTQ3 MAX (mA) | 3 |
VTM (V) | 1.6 |
Gate Trigger Voltage at 25C | 1.3 |
- RoHS Compliant
- Blocking voltage (VDRM) capability - to 600 V
- Surge capability >9.5 A
- Static dv/dt > 10V/μs

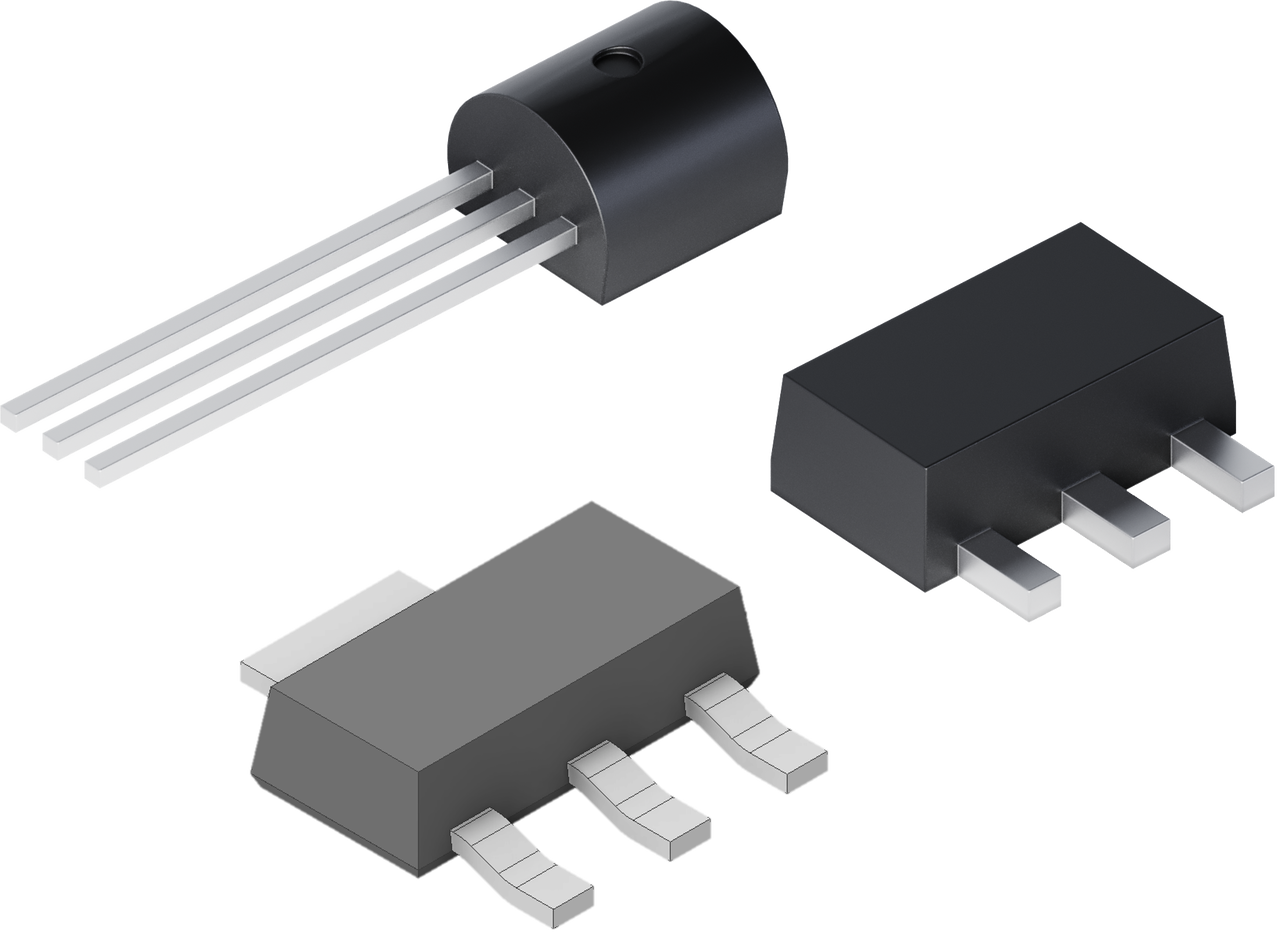

- Through hole and surface mount packages
LX807MB Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| LX807MBRP | Sen SCR 600V .8A 200?A SOT89 |  6/15/2020 | No | Yes6/15/2020 | View More |
