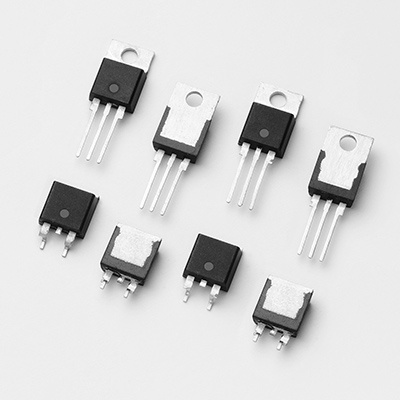

Q6008RH1LED
Altenstr App 600v 8A 10-10-10mA TO220 | Series: Low Power TRIAC up to 1200V
Littelfuse Q6008xH1LED and Q6012xH1LED Series Alternistor Triacs and Q6008LTH1LED and Q6012LTH1LED Series QUADRACs for LED Dimming offer robust solutions for power switching control of AC line based LED dimmer applications. They are designed to work as the switching device in the dimmer circuit to vary the light output of new dimmable LED bulbs and strings. They are well suited to the needs of LED lighting dimmer designers who want to combine the widest range of operating parameters with high reliability and without degrading the dimmer’s performance. The market-leading low load current capability of these devices allows creating a single dimmer design that can handle all dimmable lighting loads: LED, CFL, and traditional incandescent.
| Property | Value |
|---|---|
On-State Current (Itrms) (A) | 8 |
VDRM (V) | 600 |
ITSM 60Hz (A) | 85 |
tgt (µs) | 4 |
dv/dt @ 110°C (V/µs) | 50 |
Igtm | 1.6 |
Type | Alternistor (LED Application) |
IH (A) | 6 |
di/dt @ 110°C (A/µs) | 70 |
dvdt Minimum | 10 |
PGAV (W) | 0.5 |
IGTQ2 MAX (mA) | 10 |
Nominal Melting I2T (A2sec) | 30 |
IDRM@ VDRM 110°C (mA) | 0.5 |
IGTQ1 MAX (mA) | 10 |
Non-Repetitive Surge Current ITSM 50Hz | 80 |
IGTQ3 MAX (mA) | 10 |
VTM (V) | 1.6 |
Gate Trigger Voltage at 25C | 1.3 |
PCN | ESW490-26 |
- Maximum holding current as low as 6 mA
- L-Package is UL recognized for 2500Vrms
- 110°C rated junction temperature
- Static dv/dt performance of 35 V/µs
- di/dt performance of 70 A/µs
- QUADRAC version includes integrated DIAC
- Gated Triacs have 10 mA gate sensitivity
- Full control of light output at the extreme low end of load conditions
- Minimum isolation voltage rating of 2.5 kV ac between mounting tab and active terminals
- Improves margin of safe operation with less heat sinking required
- Provides enhanced immunity from electrical noise
- Enables survivability of typical LED load operating characteristics
- Simplicity of circuit design and layout
- 600 V blocking capability
Q6008RH1LED Applications
- Light dimmers designed to accommodate LED loads
- LED dimmers or combination dimmers
