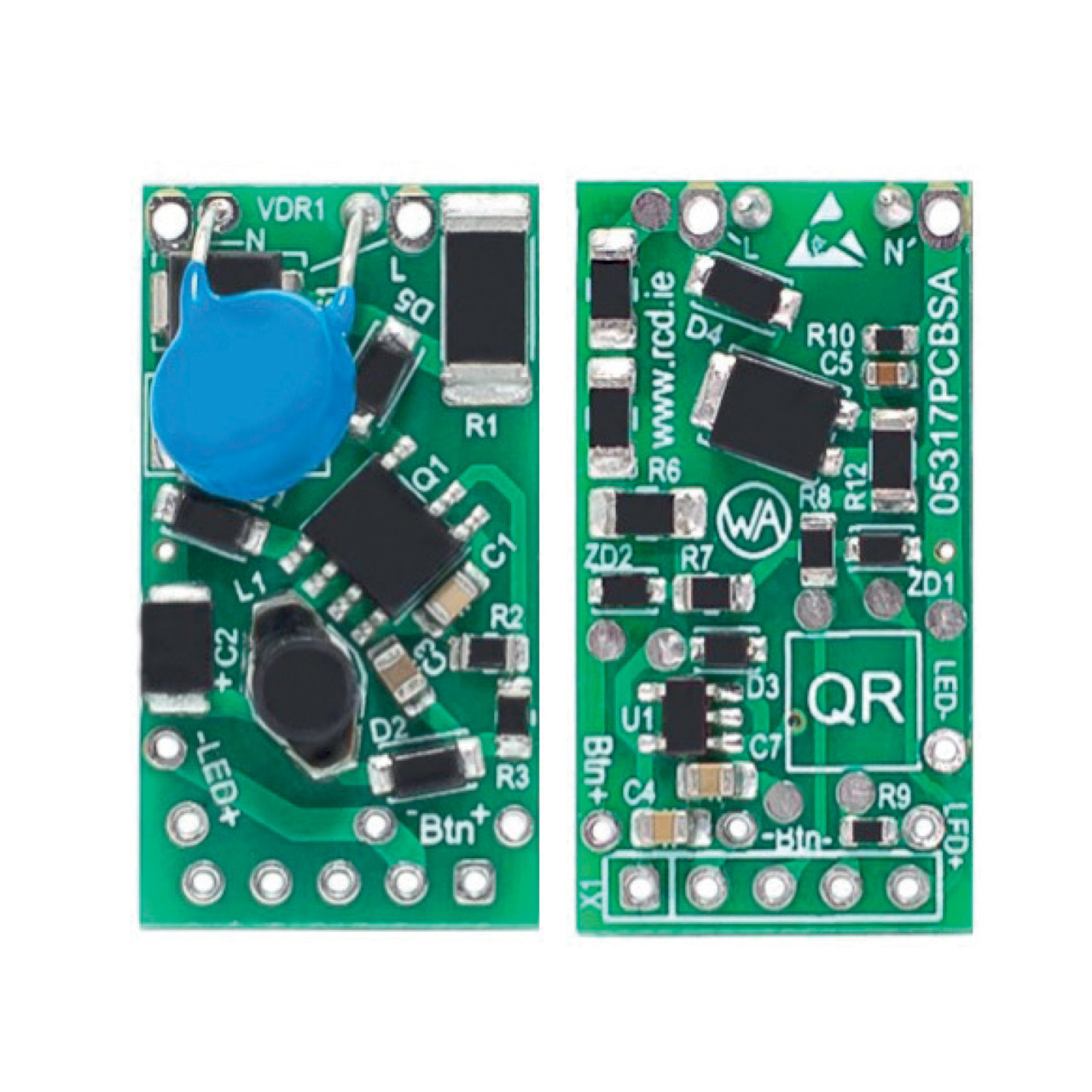

The PSU-01 is a compact AC-to-DC converter that delivers a regulated 5V output, designed for integration with the WA AFD-01 module to enable a space-efficient Arc Fault Detection solution for OEM circuit breakers. It includes a built-in SCR driver to activate a solenoid-based trip mechanism and supports external connections for a test button and status LED.
- Operates directly from AC mains
- High stability and very low noise output
- Integrated SCR driver for circuit breakers based on solenoid tripping
- Simplifies system design by eliminating the need for external transformers or converters, reducing component count and overall cost.
- Ensures reliable performance of sensitive electronics, minimizing interference with adjacent circuitry.
- Streamlines the tripping mechanism by removing the need for separate driver circuitry, saving board space and development time.
PSU-01 Parts
Link has been copied to clipboard
Filters
PSU-01 Applications
- OEM Circuit Breakers
