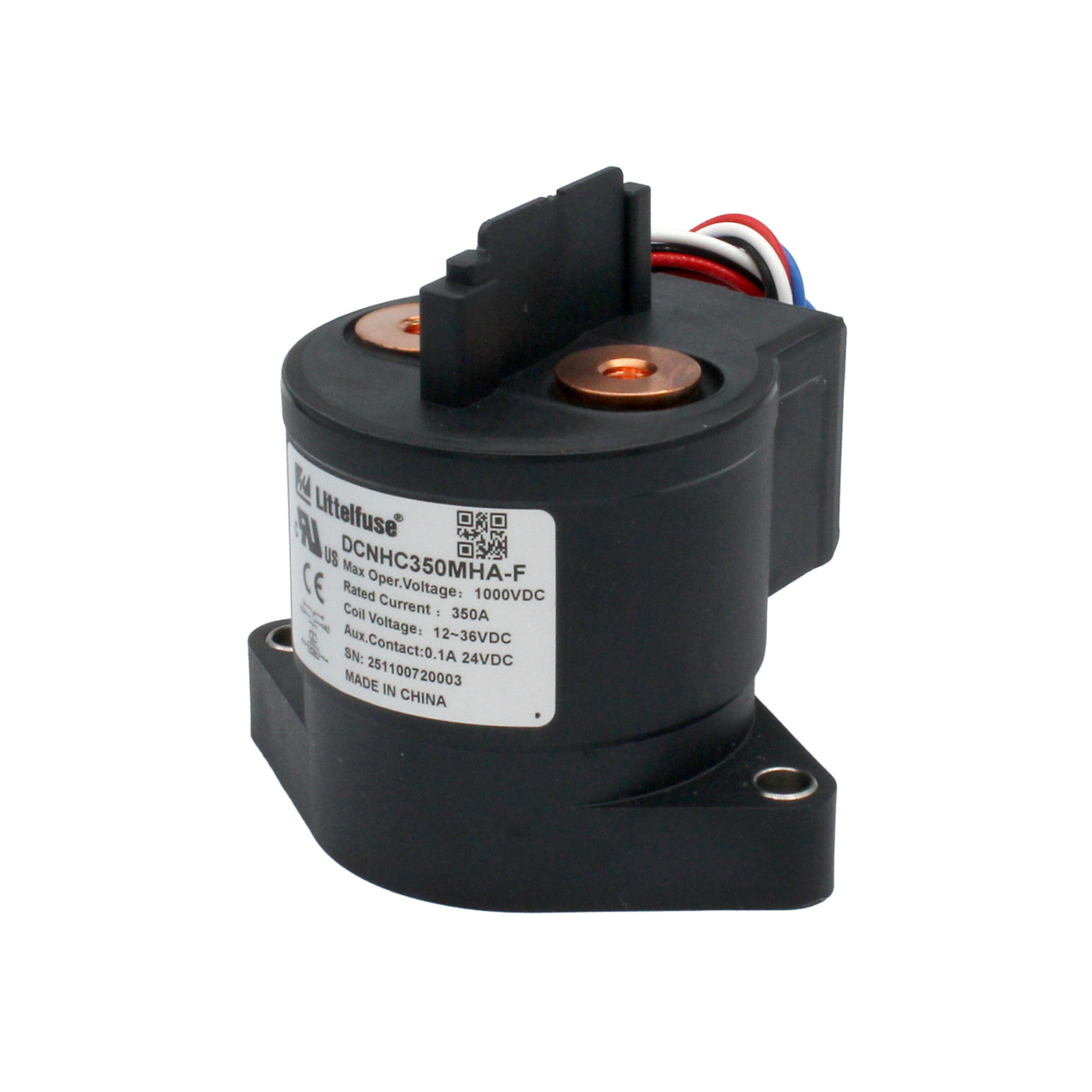

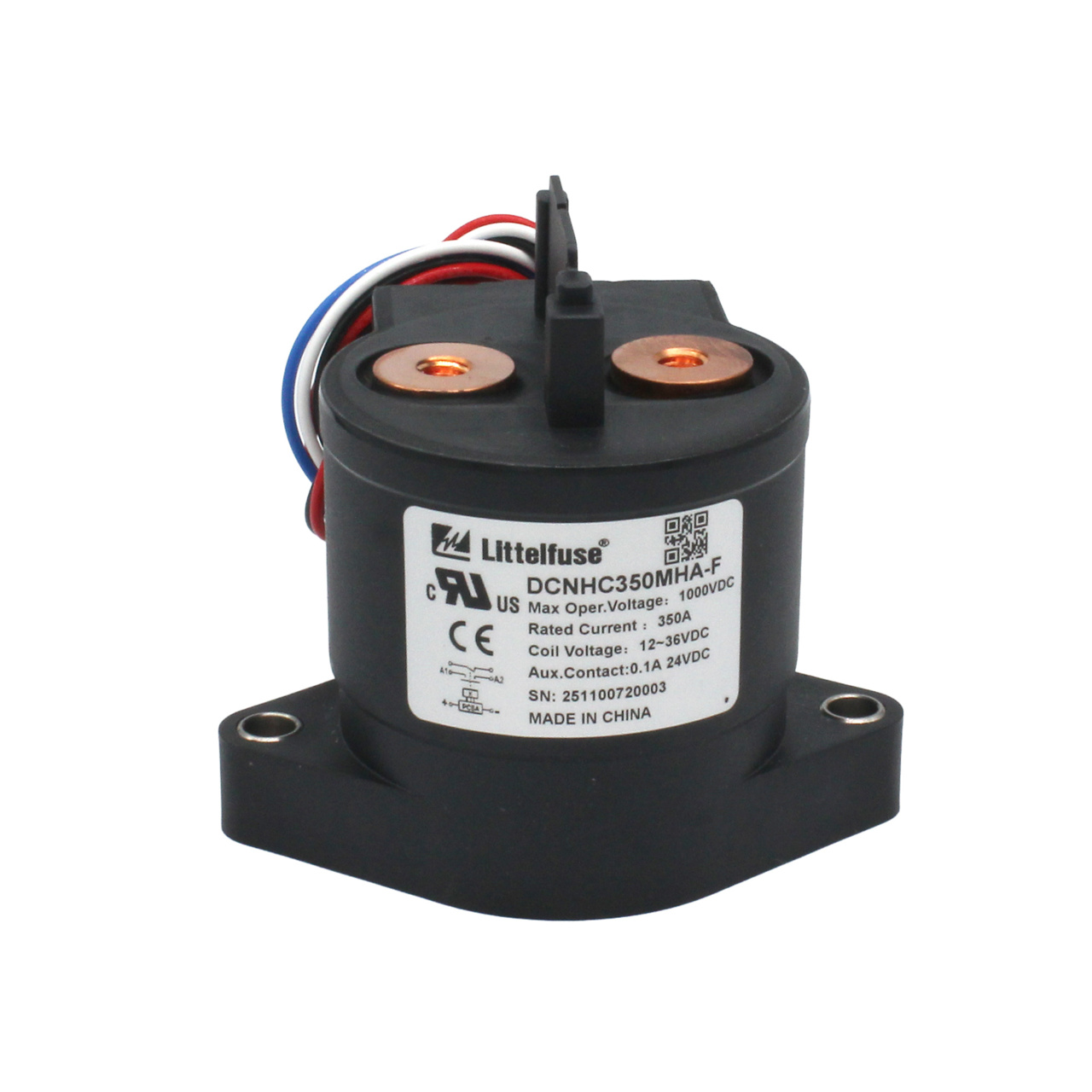

DCNHC350MHA-F
CONTACTOR 350A 1KV 12-24Vcoil NP Aux Fem | Series: DCNHC350
Designed for electric vehicles and industrial machinery, the DCNHC350 Series high-voltage DC contactor is suited for demanding applications, including battery power supply, charging pile, motor control, circuit insulation, circuit protection, and industrial safety devices. Its compact design helps reduce operational noise, while the corrosion-resistant resin housing delivers reliable performance even in harsh environments.
Sealed, non-polarized contacts prevent electrical arc leakage for safety and ensure the contactor is a match for a variety of electrical systems. Using Pulse Width Modulation (PWM), the attached Coil Economizer minimizes coil power draw and heat once the contactor is energized, ensuring efficient operation.
This model (DCNHC350MHA-F) has a 12-36V DC coil rating and an auxiliary contact.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 350 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M6 |
Contacts | Copper Alloy |
Connector | Wire Leads |
Housing | Nylon UL 94-V0 |
Coil Type | PWM |
Aux Contacts | Yes |
Input Terminals | M6 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 3-4Nm Terminal: 8-10Nm |
Coil Voltage | 12-36 |
- 12-36V DC coil rating
- Auxiliary contact
