DCNHE150MFA-F
CONTACTOR 150A 1KV 12-36Vcoil NP NOaux F | Series: DCNHE150
The DCNHE150 Series contactor is a high-current (150A continuous), high-voltage (1000V DC max) relay designed for electric vehicle and energy storage applications requiring reliable DC power control and protection. Typical uses include battery power supply, DC power distribution, charging systems, uninterruptible power supply, and other electronic control circuits.
Featuring a compact structure and resin housing, the DCNHE150 contactor features corrosion resistance and reduced operational noise. Its sealed contact design prevents arc leakage for maximum safety, while the attached Coil Economizer, once energized, minimizes coil power consumption and heating through Pulse Width Modulation (PWM) control.
Available in both polarized and non-polarized versions to suit system polarity requirements, the DCNHE150 contactor offers flexibility in design and installation with no mounting orientation restrictions. Mechanically linked auxiliary contact options are also available.

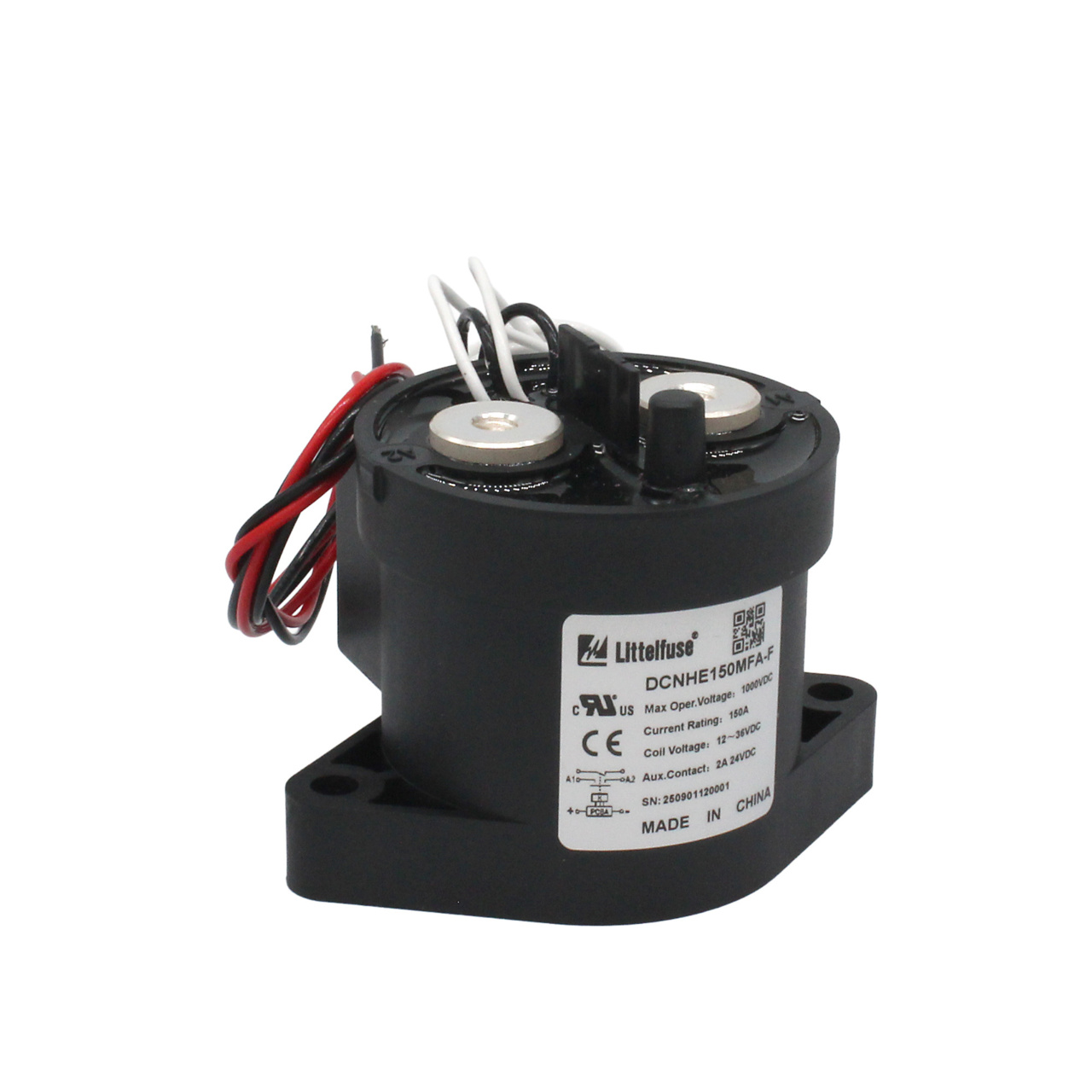

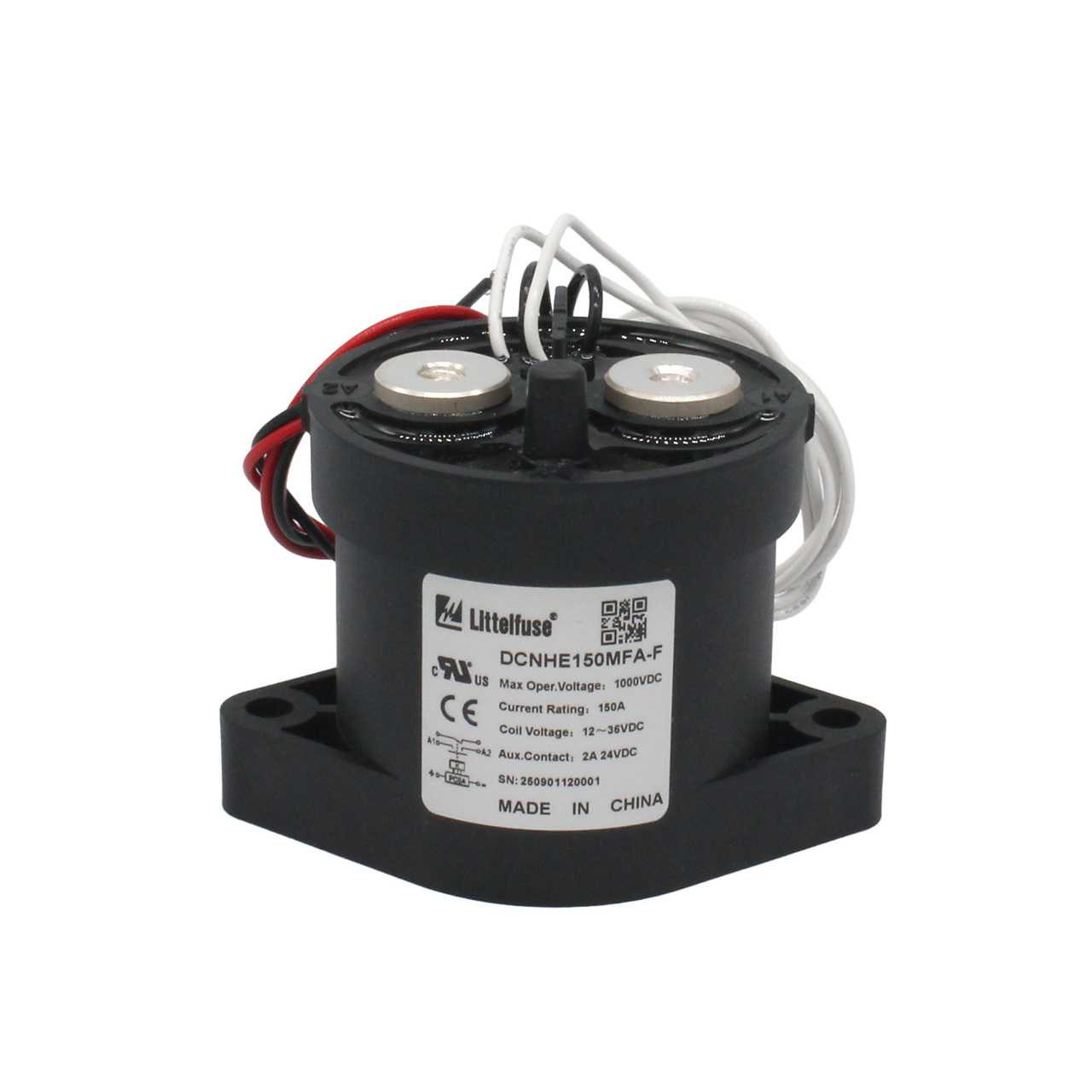

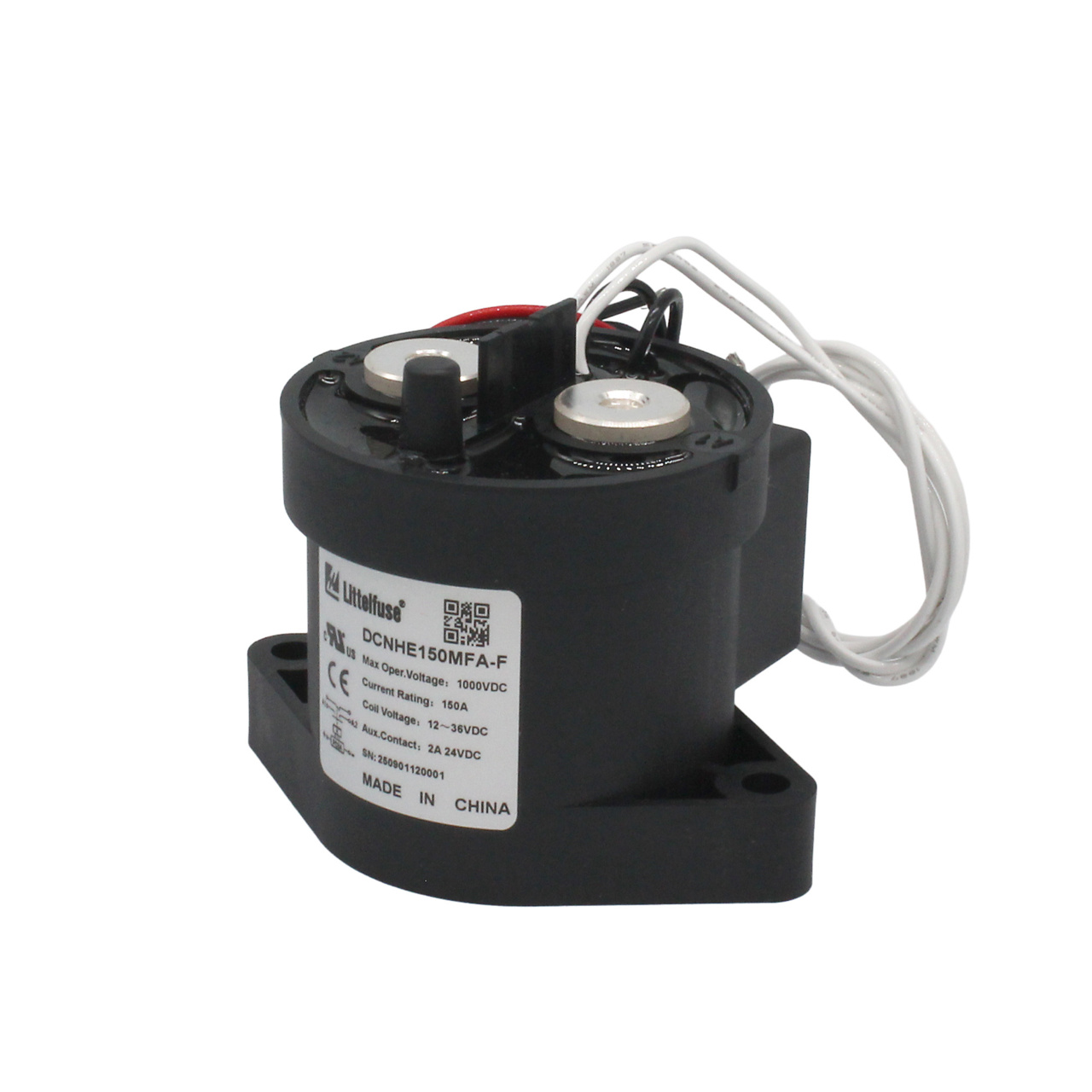

This non-polarized model (DCNHE150MFA-F) of the DCNHE150 Series contactor features internal thread terminals and an SPST-NO auxiliary contact.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 150 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Connector | Wire Leads |
Housing | Nylon UL 94-V0 |
Coil Type | PWM |
Input Terminals | M6 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 1.7-3.5Nm Terminal: 6-8Nm |
Coil Voltage | 12-36 |
- Non-polarized contact terminals
- Internal thread power connection
- SPST-NO auxiliary contact
