DCNHE20PF24-P

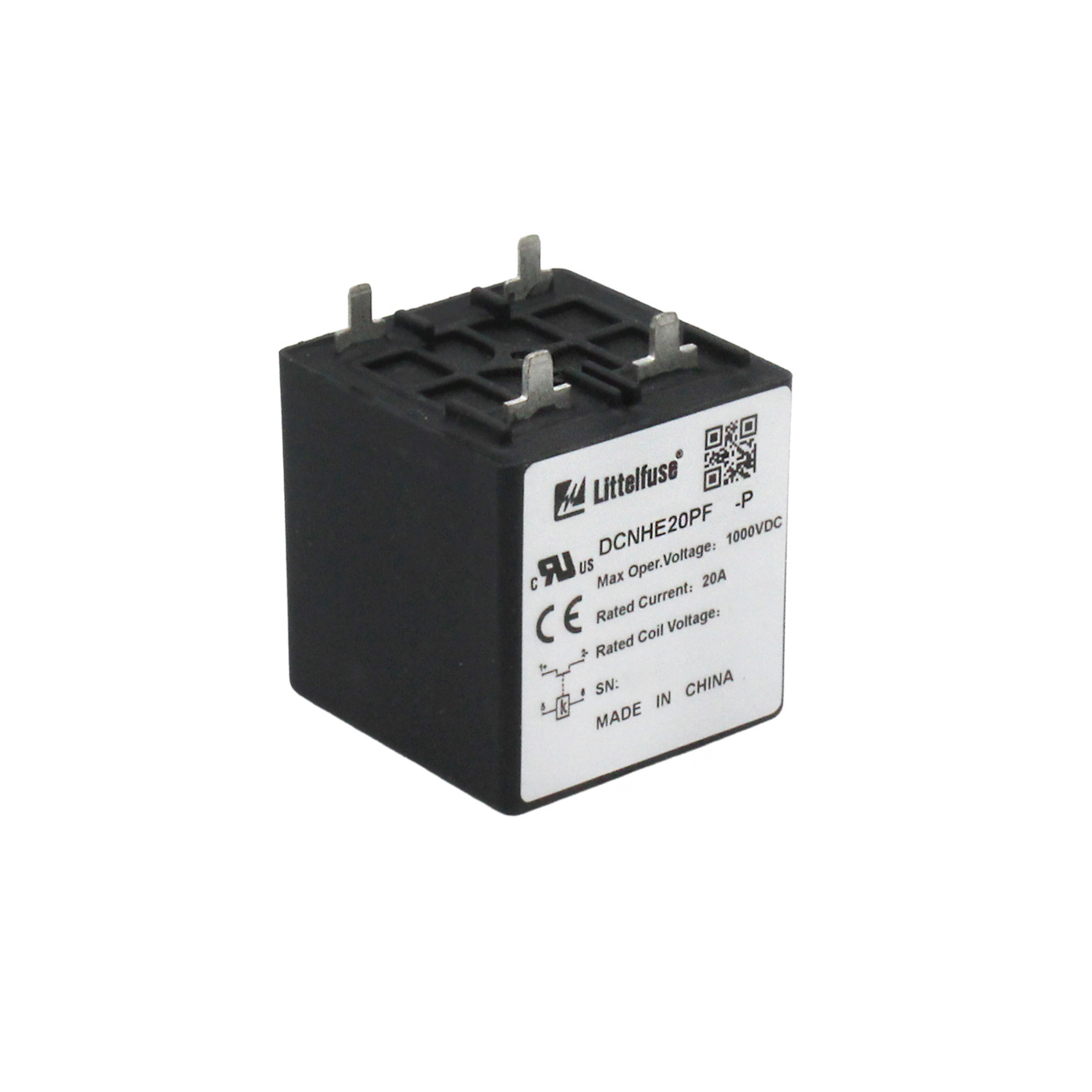

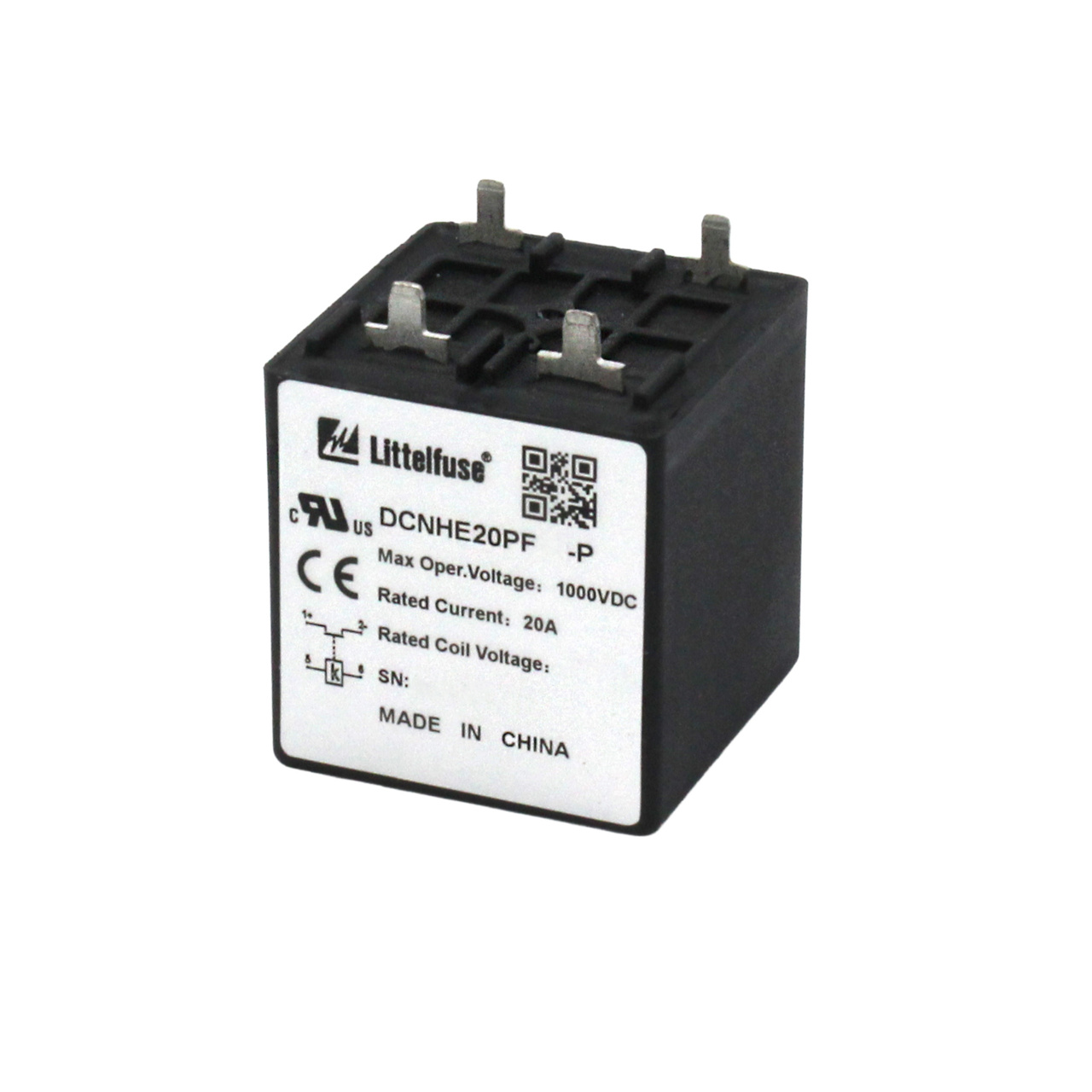

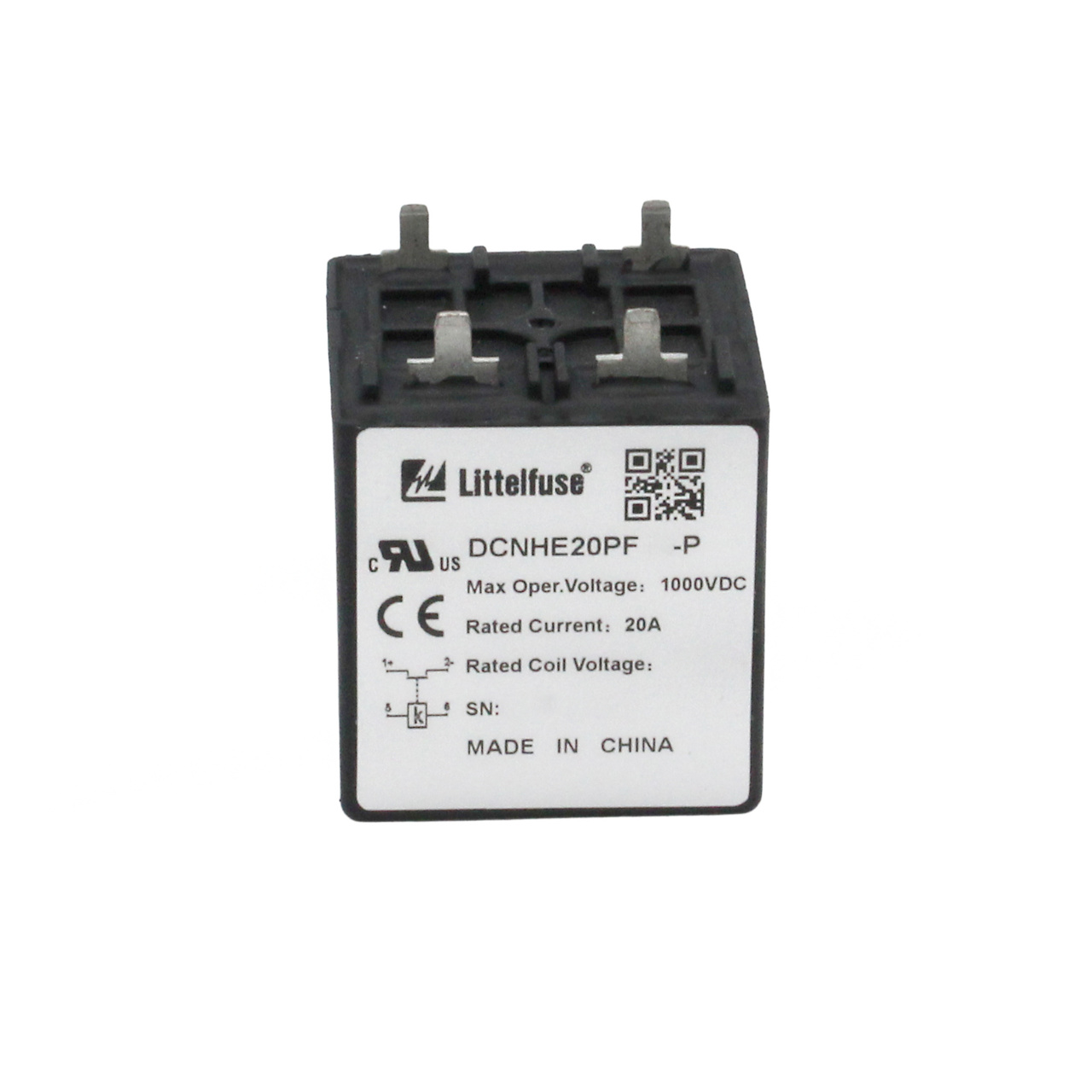

CONTACTOR 20A 1KV 24Vcoil P PCB. | Series: DCNHE20
The DCNHE20 Series high-voltage DC contactor relay is designed for electric vehicle and industrial high-voltage DC applications requiring safe, reliable switching in a compact form factor. Rated for up to 1000V DC, it is well suited for use in battery power supply systems, charging piles, motor control, circuit isolation, circuit protection, and industrial safety devices.
Featuring SPST normally open (NO) circuitry, the DCNHE20 Series contactor delivers dependable performance with a compact structure that helps reduce operational noise. A durable resin housing provides excellent corrosion resistance for harsh automotive and industrial environments, while sealed contacts prevent electrical arc leakage to enhance safety and long-term reliability.
The DCNHE20 Series contactor is available in a bottom-mounting polarized load quick-connect (QC) terminal version or polarized load potted thru-hole PCB version, offering design flexibility. Multiple coil voltage options (12V, 24V, 48V, and 60V) support a wide range of EV and industrial control requirements.
This model (DCNHE20PF24-P) features potted thru-hole PCB power connection and a 24V DC coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 20 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | Thru-Hole PCB |
Contacts | Copper Alloy |
Housing | Nylon UL 94-V0 |
Coil Type | Single |
Aux Contacts | No |
Input Terminals | Thru-Hole PCB |
Mounting Method | Thru-Hole PCB |
Normal Position | Normally Open |
Polarized | Yes |
Recommended Torque | Terminal: Pull/Push Force MAX 49N |
Coil Voltage | 24 |
- Polarized load
- Potted thru-hole PCB power connection
- 24V DC coil rating
