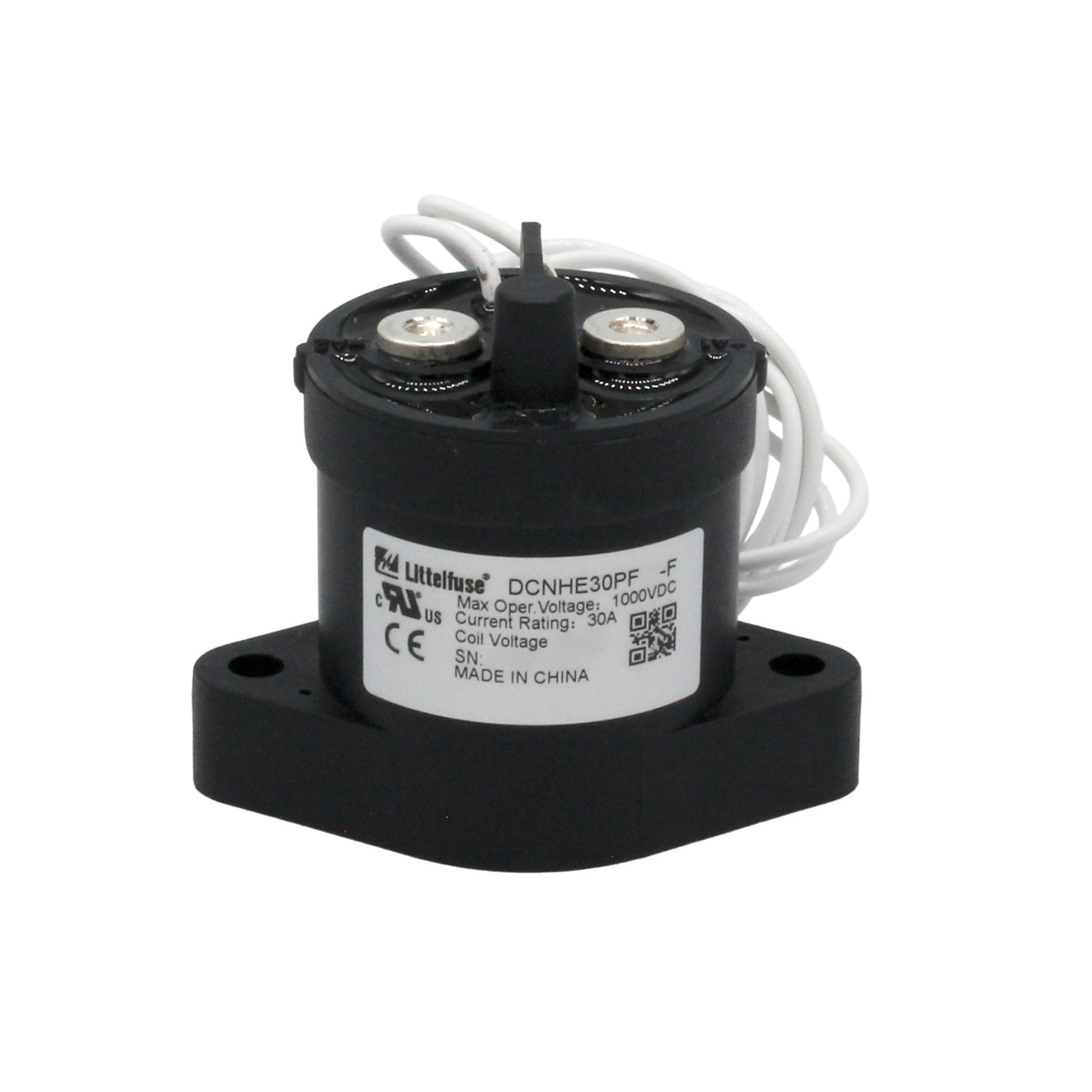

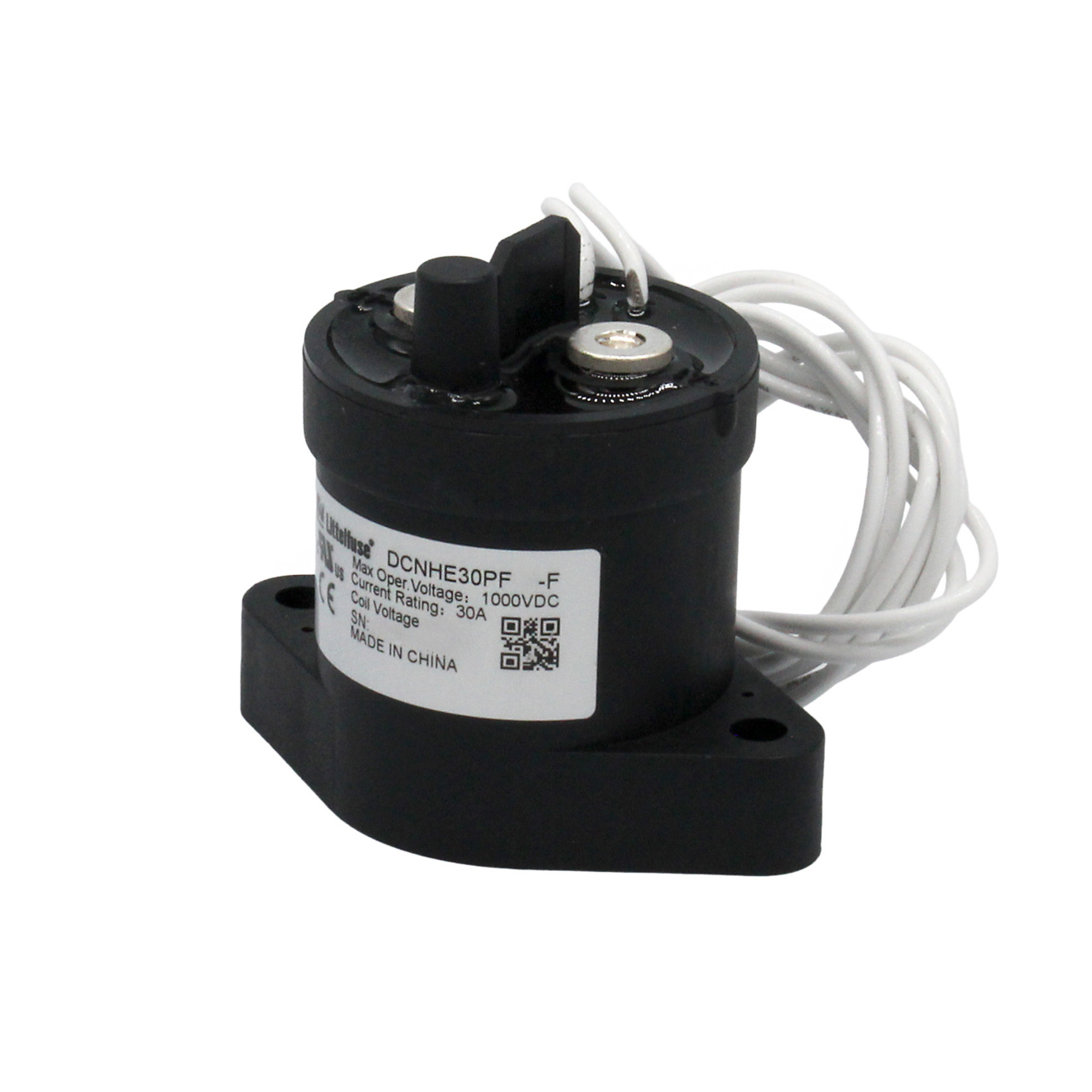

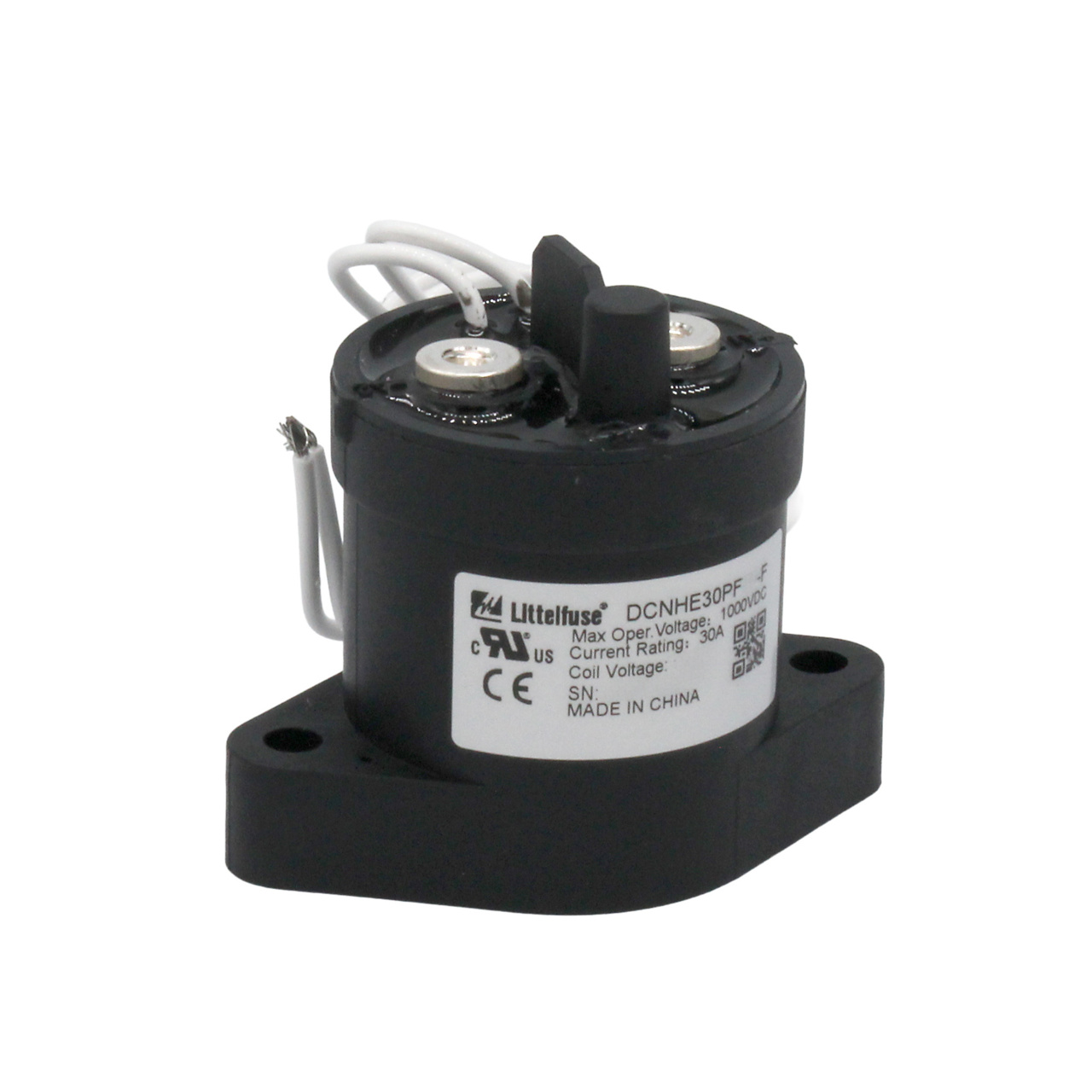

DCNHE30PF48-F
CONTACTOR 30A 1KV 48Vcoil P Fem | Series: DCNHE30
Ideal for electric vehicle and industrial applications, including battery power supply, charging pile, motor control, circuit insulation, circuit protection, and industrial safety devices, the DCNHE30 Series high-voltage DC contactor relay is engineered for long-term durability with polarized contacts.
Its compact, bottom-mounting design reduces noise and allows flexible installation, while durable resin housing provides corrosion resistance. Sealed contacts prevent electrical arc leakage, and internal-thread M4 terminals ensure secure connections. IP67-rated, the DCNHE30 Series contactor is suitable for BEVs, HEVs, material handling, and electric transport vehicles.
This configuration of the DCNHE30 Series contactor (DCNHE30PF48-F) features a single-coil design with a coil rating of 48V DC.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 30 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M4 |
Contacts | Copper Alloy |
Connector | Wire Leads |
Housing | Nylon UL 94-V0 |
Coil Type | Single |
Aux Contacts | No |
Input Terminals | M4 Internal Thread |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | Yes |
Recommended Torque | Mounting: 1.8-2.3Nm Terminal: 1.5-2Nm |
Coil Voltage | 48 |
- 48V DC coil rating
