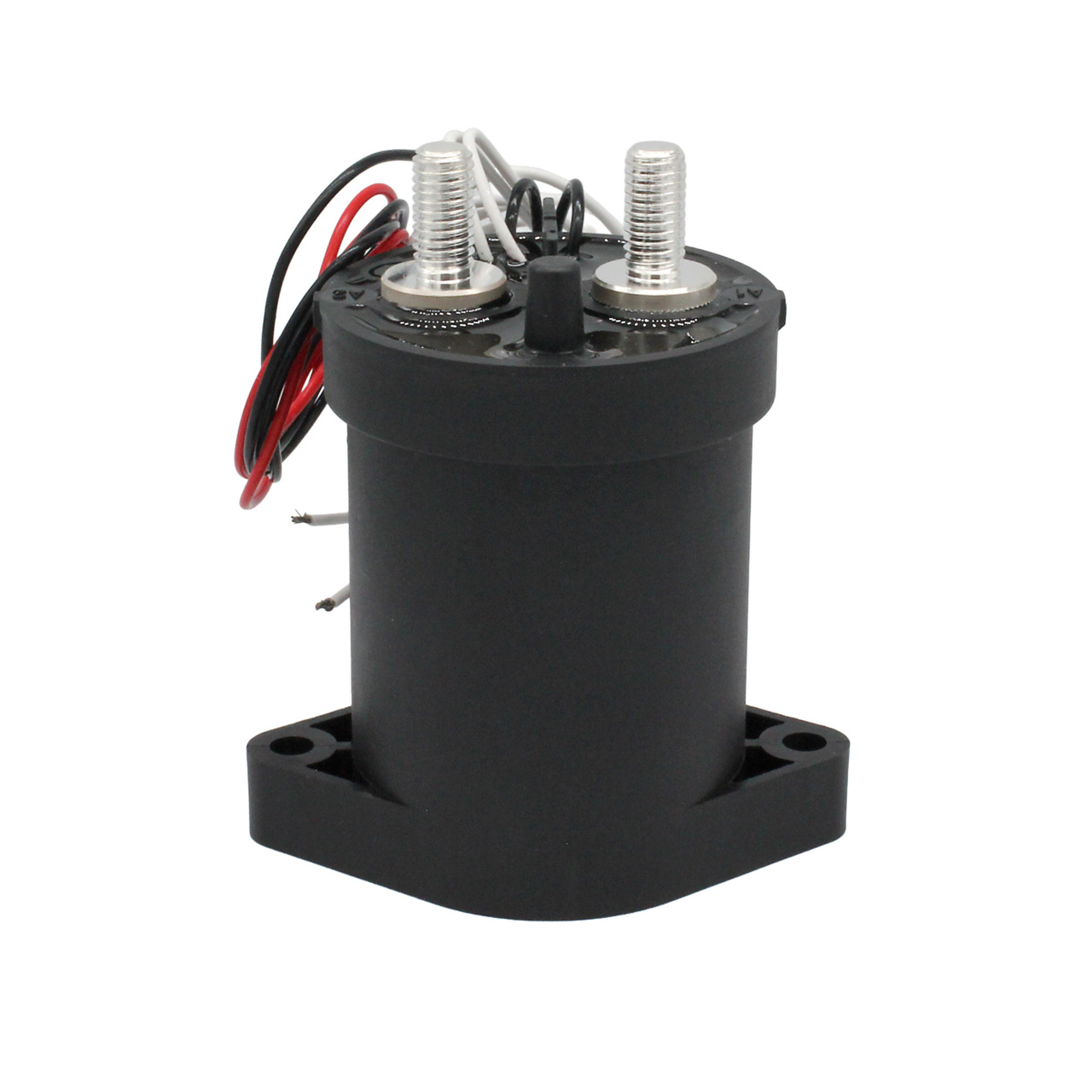

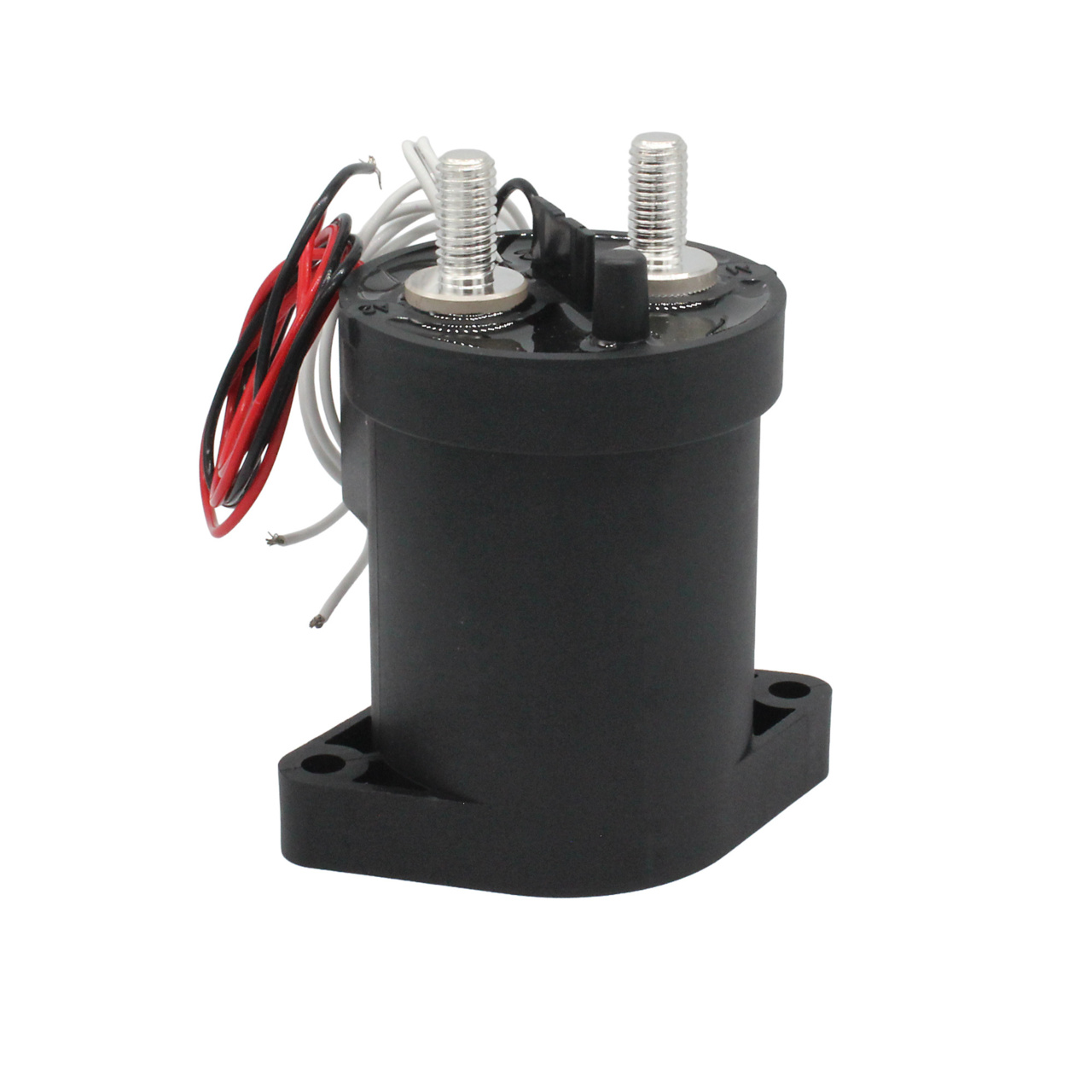

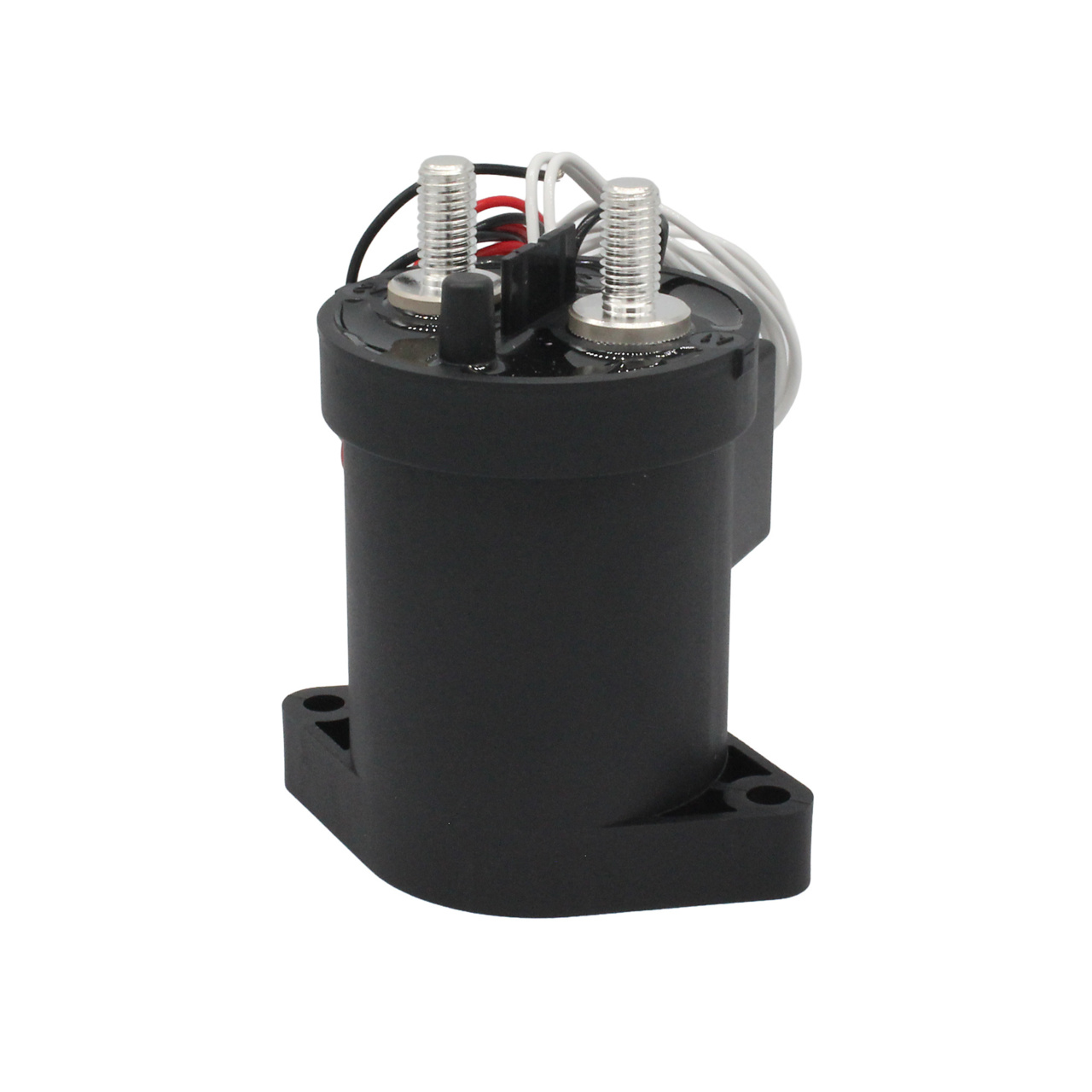

DCNHE300MFA-B
CONTACTOR 300A 1KV 12-36Vcoil NP NOAux. | Series: DCNHE300
The DCNHE300 Series high-voltage DC contactor relay is designed for electric vehicle and industrial applications, including battery power supply, charging systems, motor control, circuit isolation, and circuit protection. Its compact, corrosion-resistant resin housing ensures reliable performance in harsh environments. Sealed contacts prevent contamination and electrical arc leakage, providing maximum safety and long-term reliability.
Supporting 300A continuous current—or up to 500A when using 400 MCM cable—the SPST normally open (NO) contact circuitry handles a maximum voltage of 1000V DC. A PWM coil design reduces power consumption and heat generation during operation. The DCNHE300 Series contactor is offered with non-polarized load terminals in internal-thread or stud terminal configurations, along with a 12–36V DC coil voltage rating, delivering flexible, high-performance DC switching for demanding applications.
This model (DCNHE300MFA-B) features stud terminals and an auxiliary contact.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 300 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Connector | Wire Leads for Control Circuit |
Housing | Nylon UL 94-V0 |
Coil Type | Single (PWM) |
Input Terminals | M6 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 2.5-3.5Nm Terminal: 6-8Nm |
Coil Voltage | 12-36 |
Aux Contacts | Yes |
- Stud terminal power connection
- Auxiliary contact
DCNHE300MFA-B Resources
