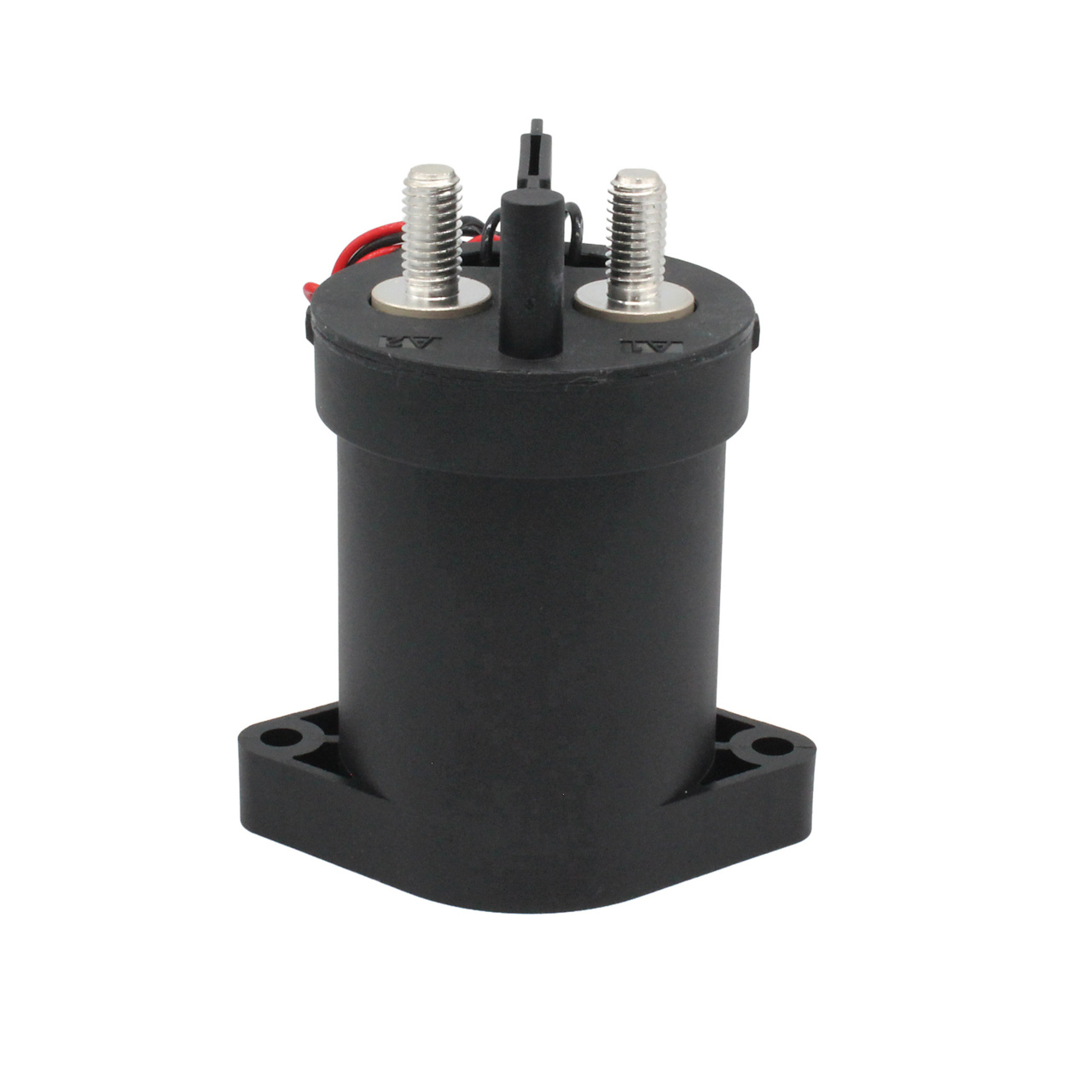

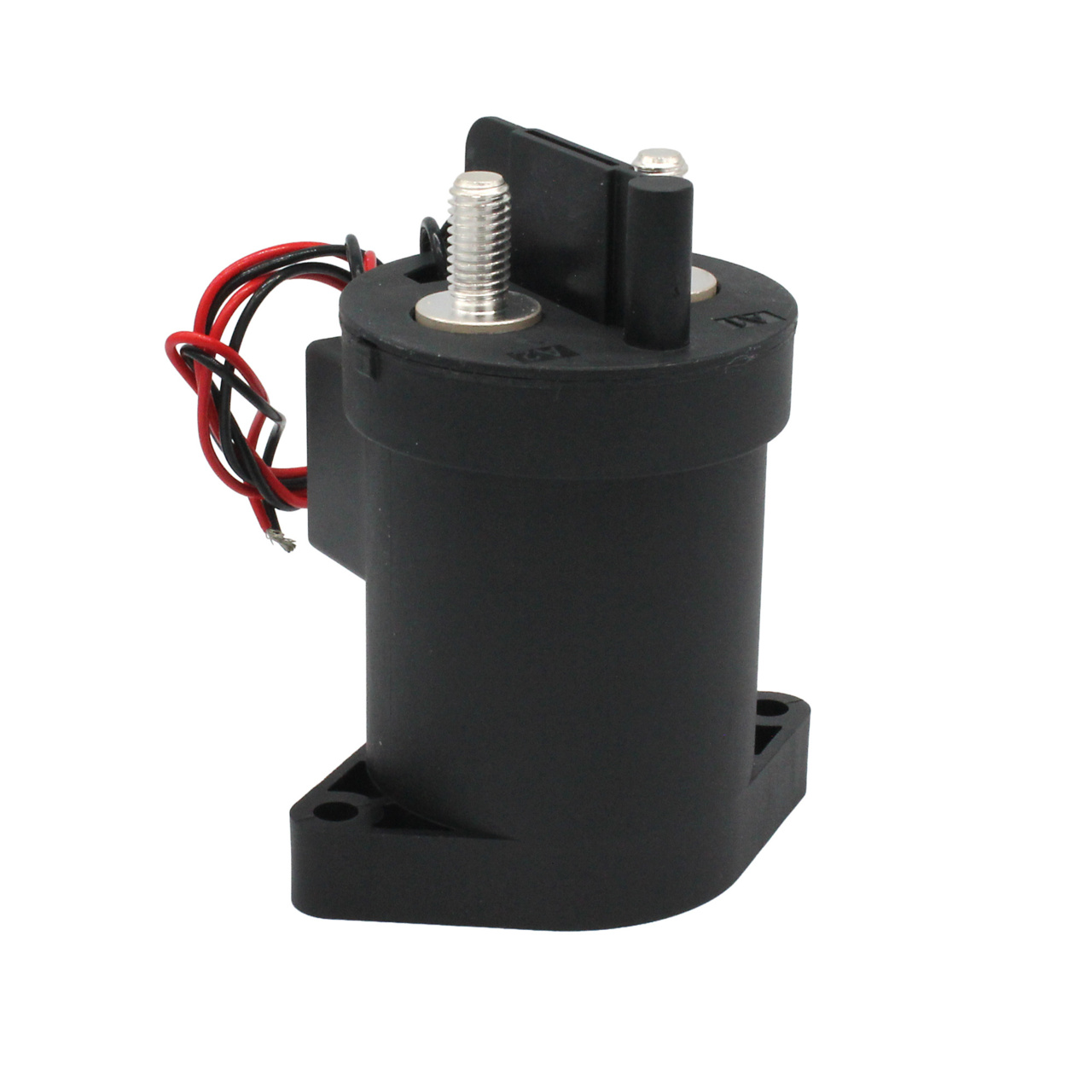

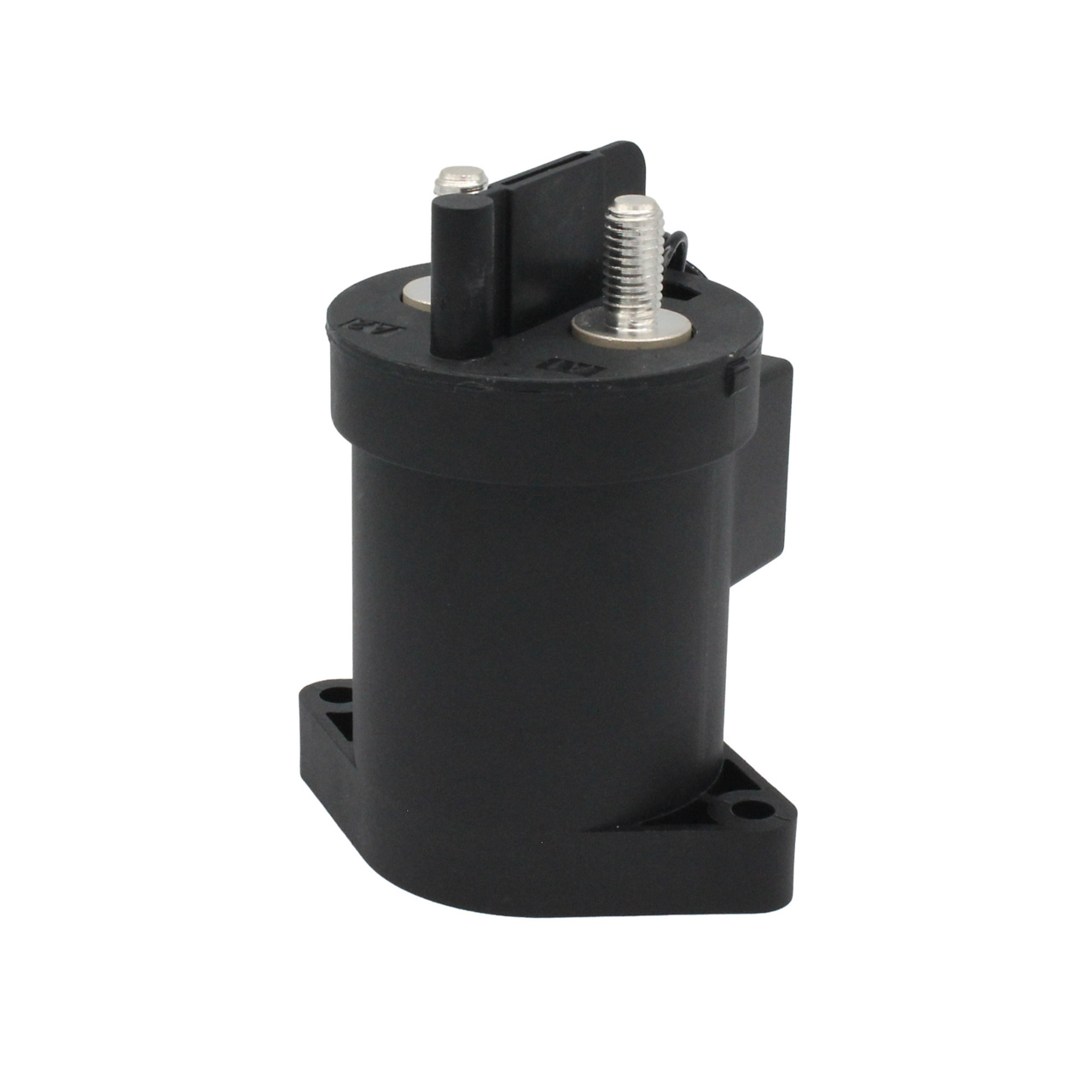

DCNHE400NF24-B
CONTACTOR 400A 1KV 24Vcoil NP Std. | Series: DCNHE400
The DCNHE400 Series high-voltage DC contactor, rated for 400A continuous current (500A with 400MCM cable) and 1000V maximum contact voltage, is designed for industrial and electric vehicle (EV) applications such as battery power supply, charging pile, motor control, circuit insulation, circuit protection, and safety devices for industrial machinery.
Featuring non-polarized, sealed contacts and a double coil design, the DCNHE400 Series industrial and EV contactor supports reliable operation in electrical systems regardless of polarity and can be mounted in any orientation.
With internal thread and stud terminal types, 12V and 24V coil voltage ratings, and the availability of mechanically linked auxiliary contacts, the DCNHE400 Series contactor relay offers versatile installation and operation, accommodating a wide range of system requirements.
This model (DCNHE400NF24-B) features stud terminals and a 24V DC coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 400 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Connector | Wire Leads for Control Circuit |
Housing | Nylon UL 94-V0 |
Coil Type | Double |
Aux Contacts | No |
Input Terminals | M6 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 2.5-3.5Nm Terminal: 6-8Nm |
Coil Voltage | 24 |
- Stud terminals
- 24V DC coil rating
