DCNHE50QF12-F
CONTACTOR 50A 1KV 12Vcoil P Aux Fem. | Series: DCNHE50
Designed for use in battery electric vehicles (BEVs), hybrid electric vehicles (HEVs), and other high-voltage DC systems, the DCNHE50 Series DC Contactor Relay is rated for a continuous current of 50A and a maximum voltage of 1000V. Its compact structure minimizes operational noise and supports flexible, orientation-free installation.
A UL 94 V-0 nylon housing provides corrosion resistance in harsh environments, while sealed SPST-NO contacts prevent electrical arc leakage for enhanced safety. Optional mechanically linked auxiliary contacts enable system status monitoring.
IP67-rated, the DCNHE50 Series ensures durable, dependable performance in demanding EV and industrial applications, with a wide variety of configurations available, including those with polarized or non-polarized contacts, stud or internal thread terminals, side- or bottom-mount options, and 12V, 24V, or 48V coil voltages to meet diverse system requirements.

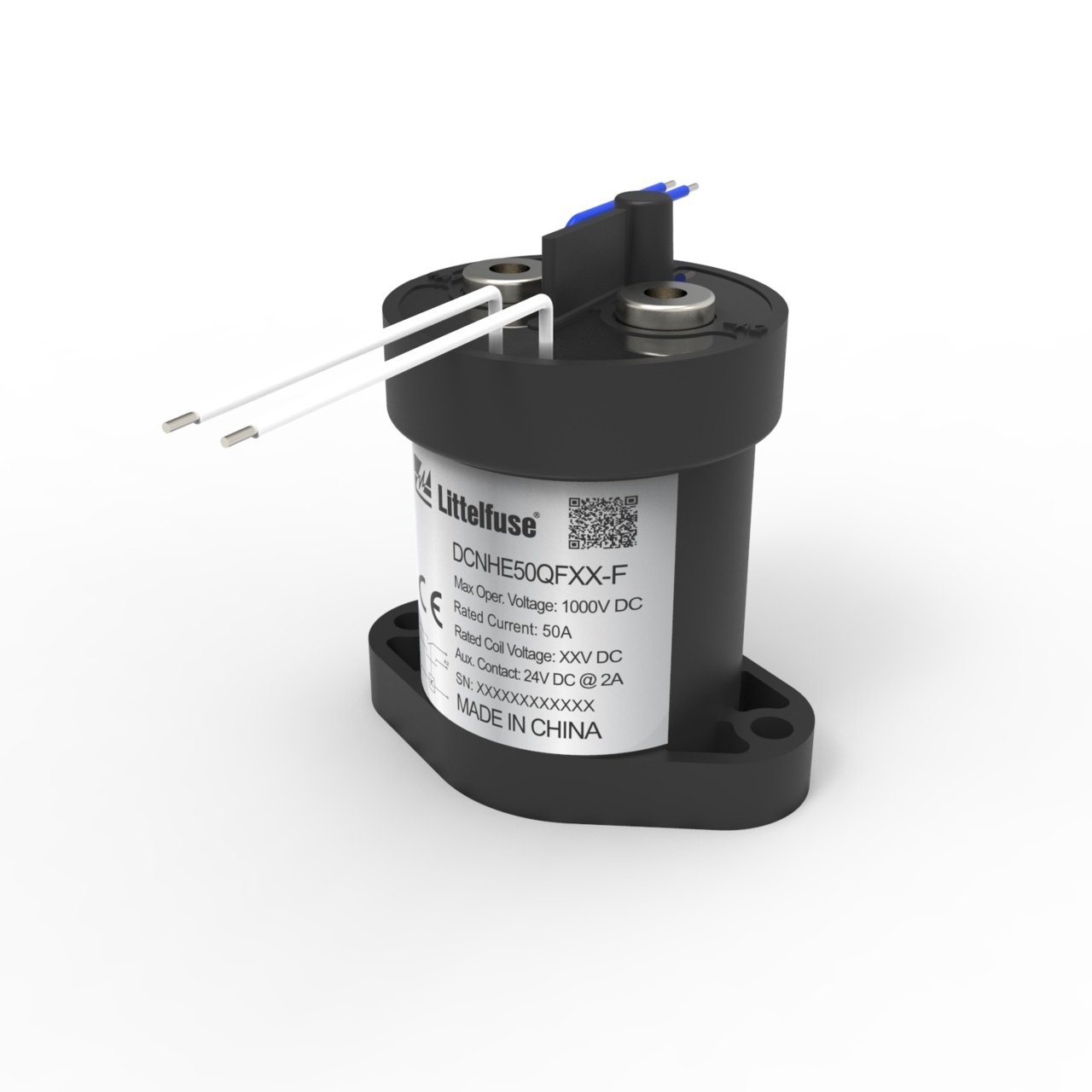

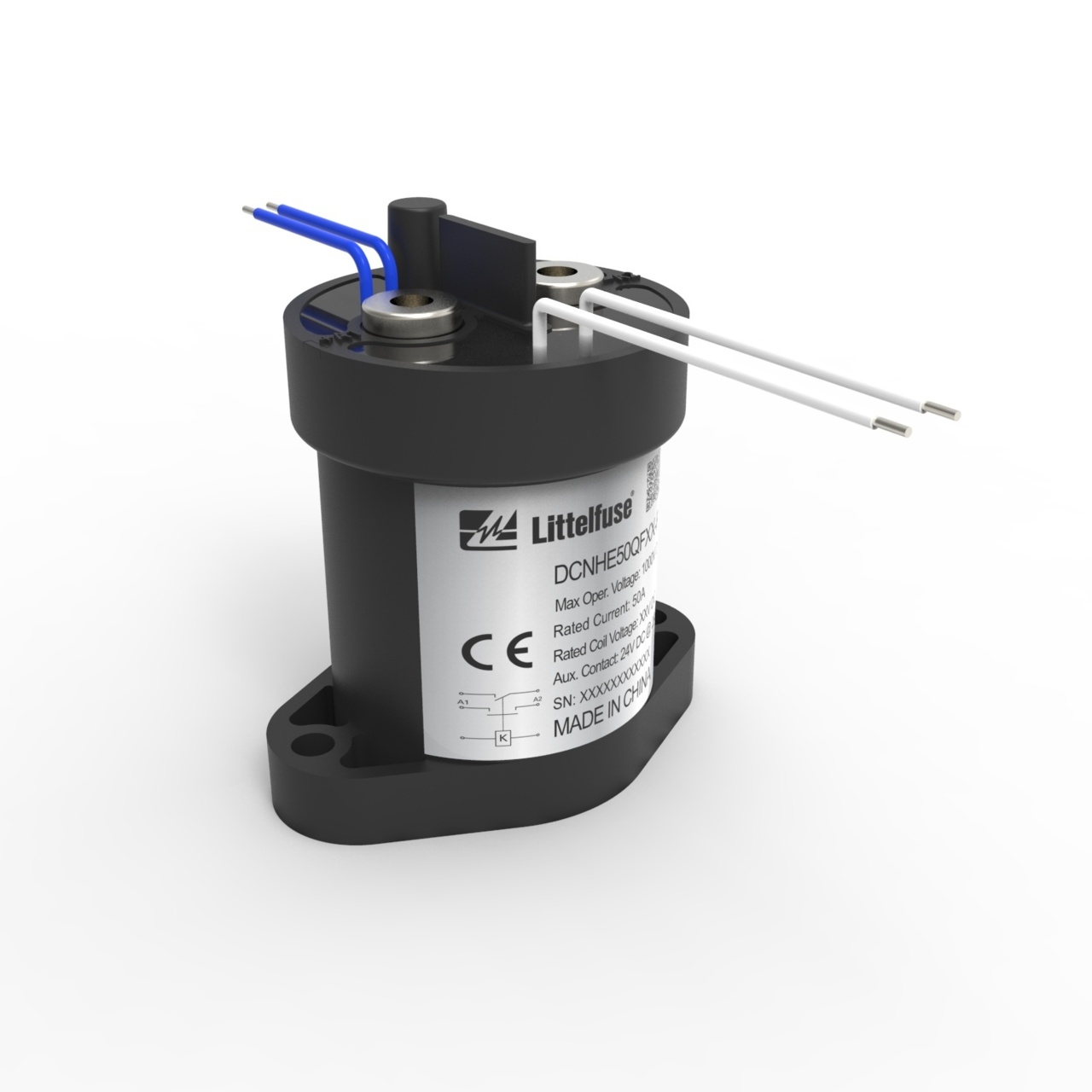

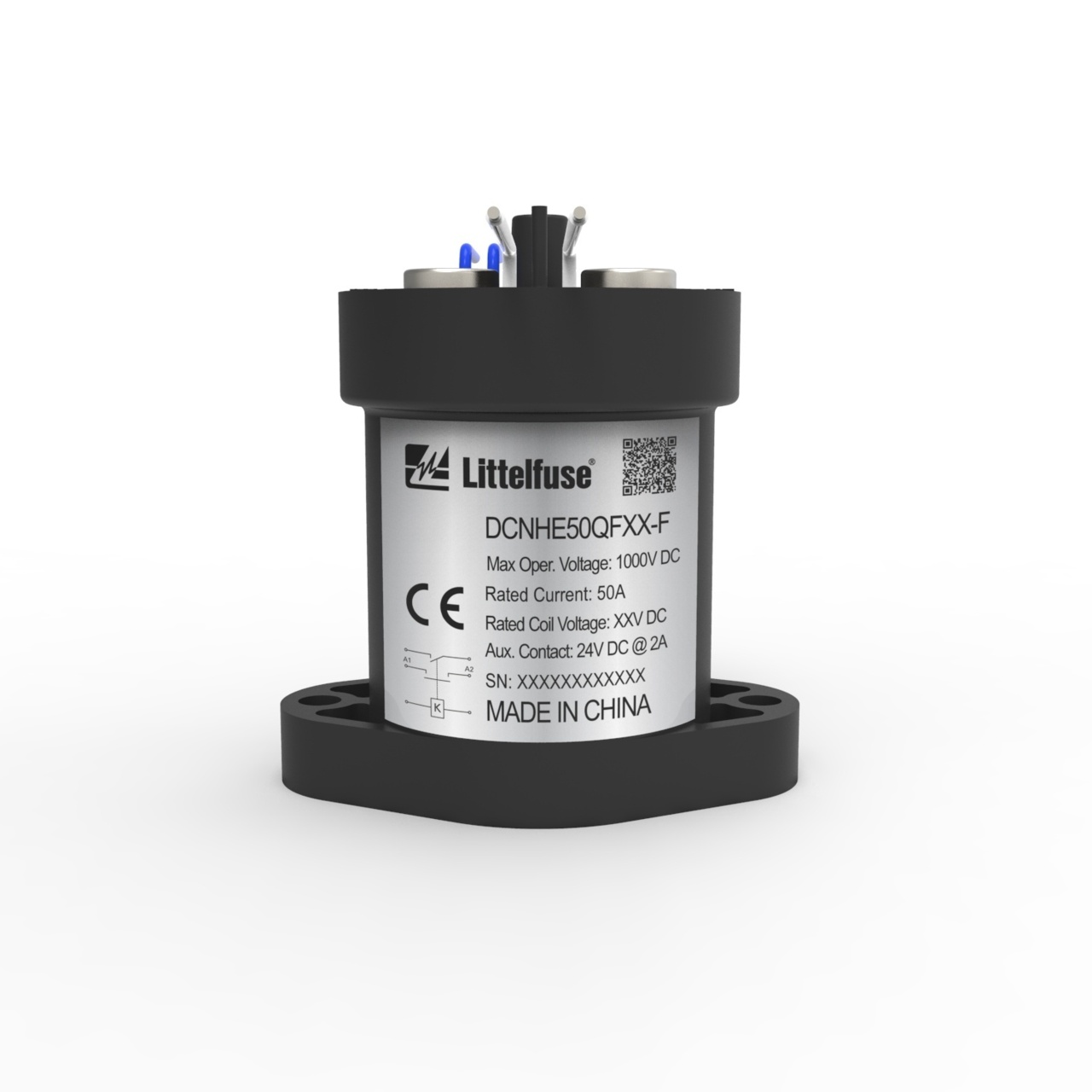

This DCNHE50 Series model (DCNHE50QF12-F) features a bottom-mounting design, polarized main contacts, a 12V DC coil, and an auxiliary contact. Internal thread terminals ensure a secure connection.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 50 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M4 |
Contacts | Copper Alloy |
Connector | Wire Leads |
Housing | Nylon UL 94-V0 |
Coil Type | Single |
Aux Contacts | Yes |
Input Terminals | M5 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | Yes |
Recommended Torque | Mounting: 1.7-2.5Nm Terminal: 3-4Nm |
Coil Voltage | 12 |
- Polarized main contacts
- Bottom-mounting design
- 12V DC coil
- Internal thread terminals
- Mechanically linked auxiliary contact
