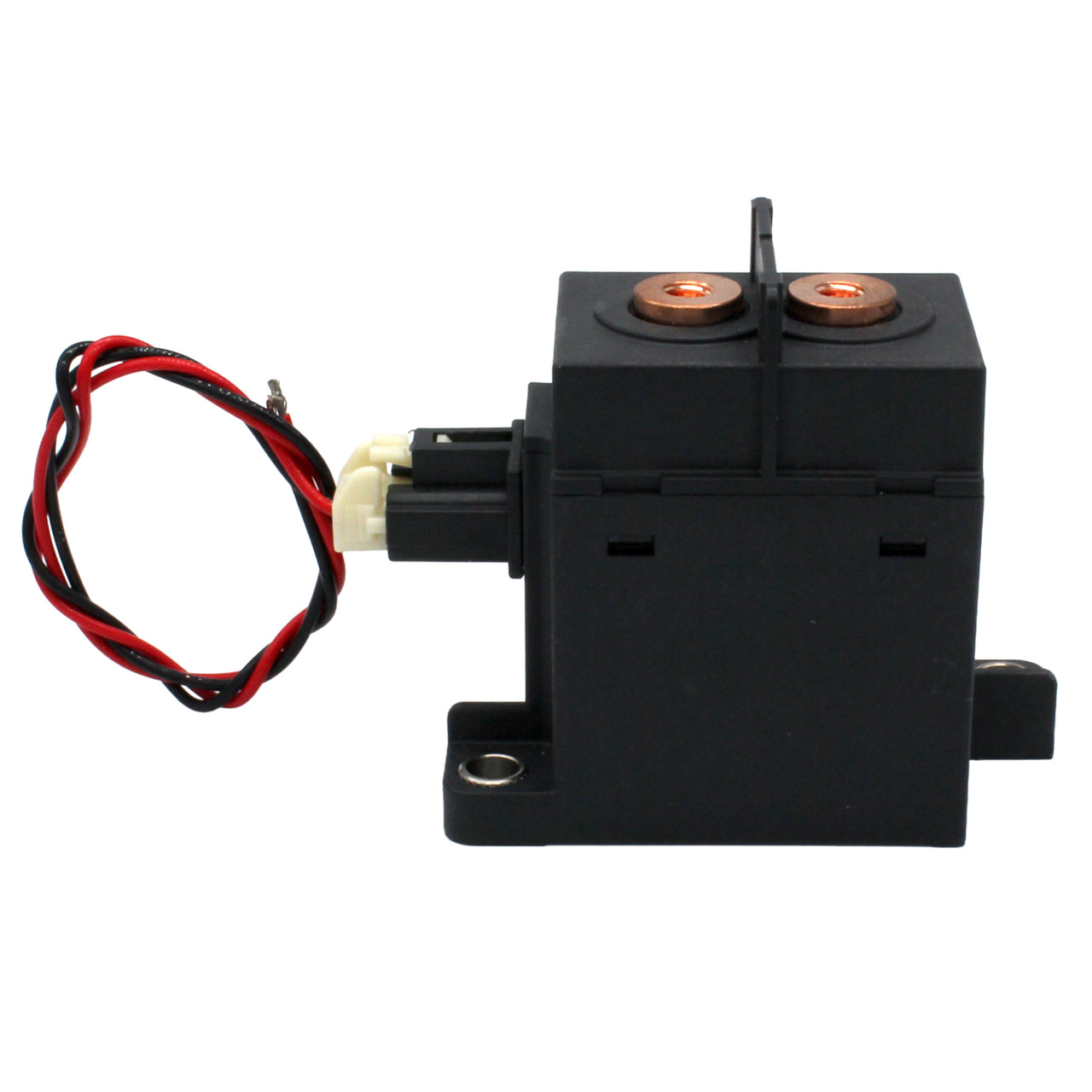

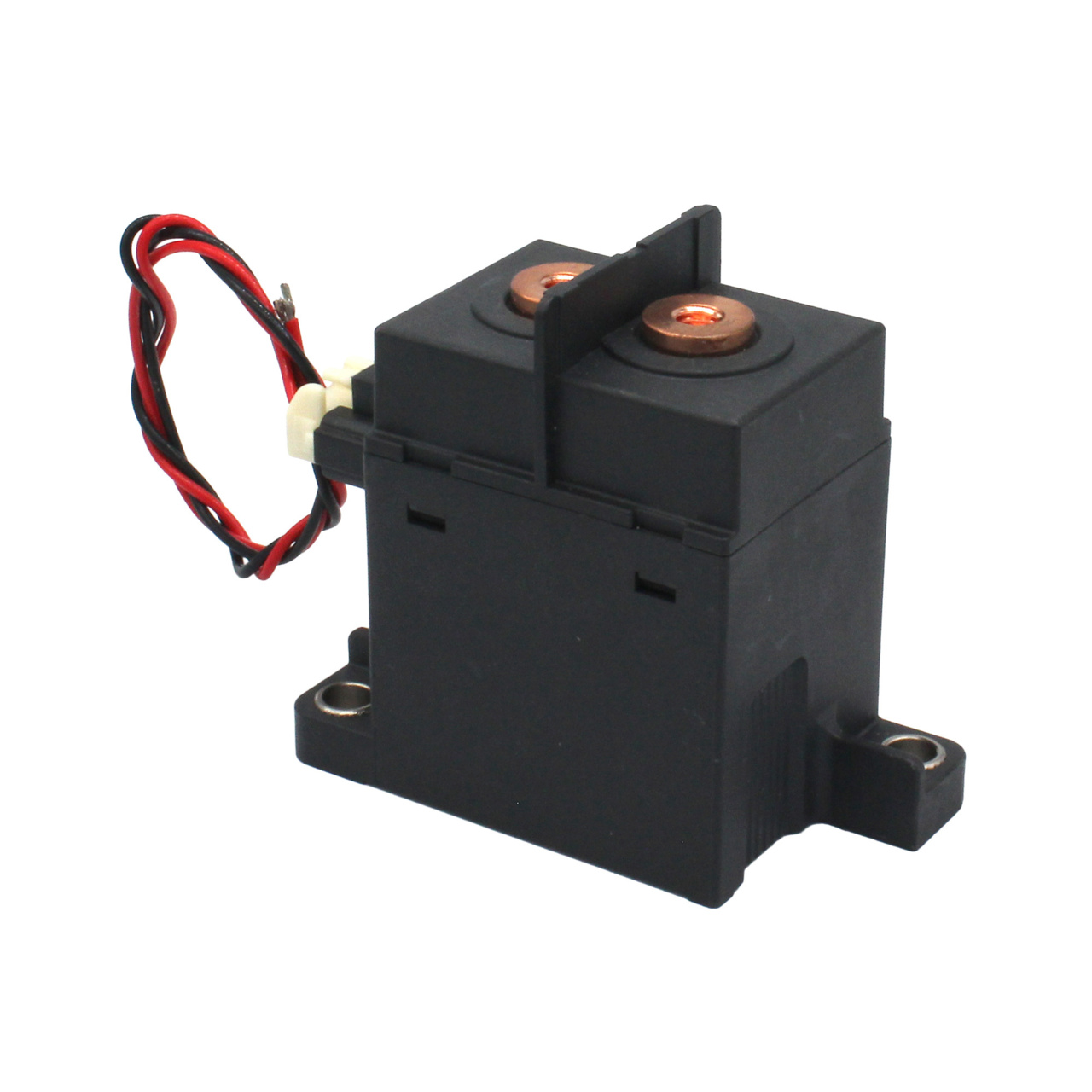

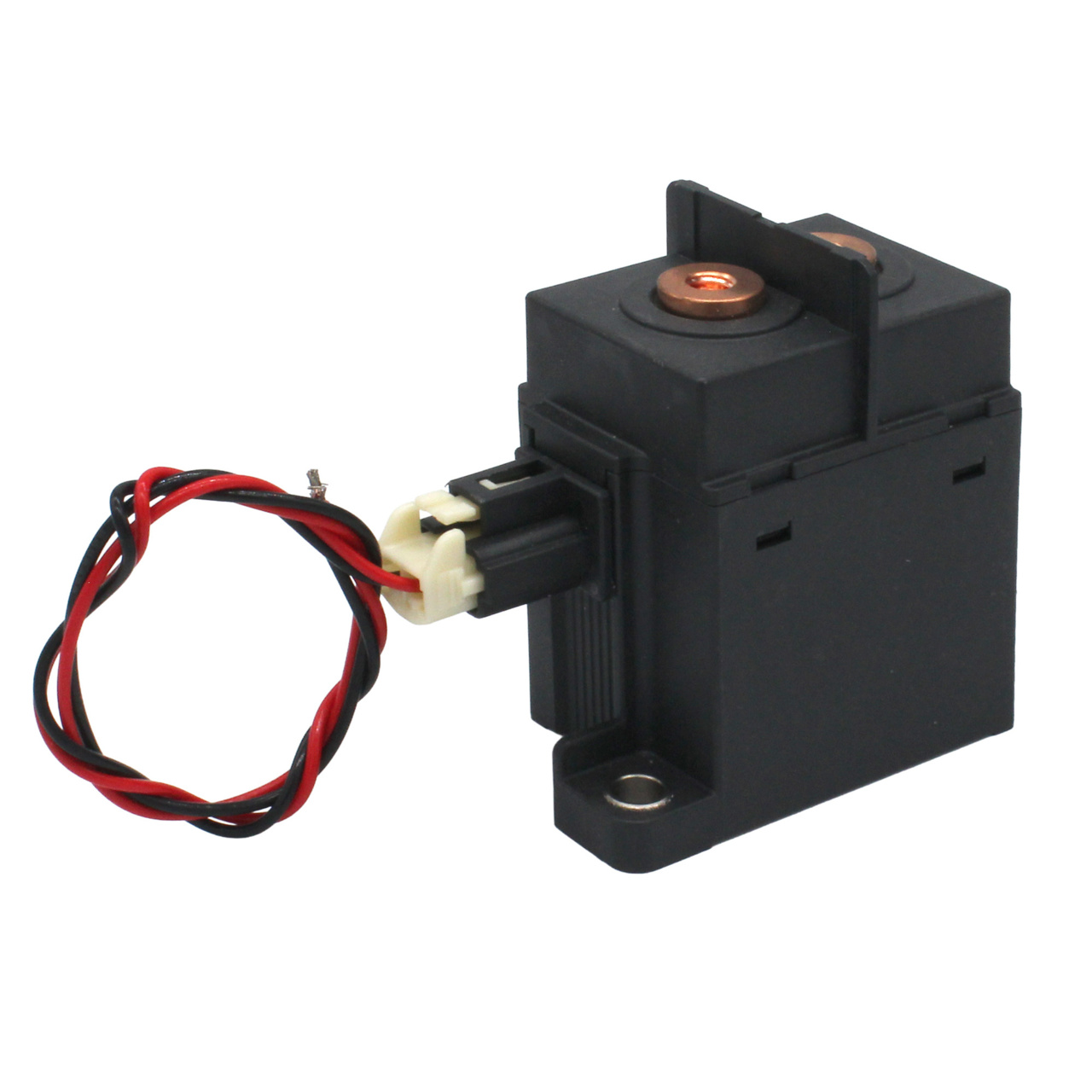

DCNHF150NG12-F
CONTACTOR 150A 1KV 12Vcoil NP Fem | Series: DCNHF150
The DCNHF150 Series high-voltage DC contactor is designed for electric vehicle and industrial applications, including battery power supply, charging systems, motor control, circuit insulation, circuit protection, and safety devices. Its compact design helps minimize operational noise, while the corrosion-resistant resin housing ensures reliable performance in harsh automotive environments.
Sealed, non-polarized contacts are designed to accommodate various system polarities and prevent electrical arc leakage for maximum safety. The SPST-NO circuitry supports 150A continuous current and up to 1000V maximum voltage.
Available with 12V or 24V coil ratings and installable in any orientation, the DCNHF150 Series contactor delivers flexible, high-performance DC switching for demanding applications.
This configuration (DCNHF150NG12-F) has a 12V coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 150 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Housing | Nylon UL 94-V0 |
Coil Type | Double |
Aux Contacts | No |
Input Terminals | M6 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 3-4Nm Terminal: 8-10Nm |
Coil Voltage | 12 |
- 12V DC coil rating
- Internal thread power connection
