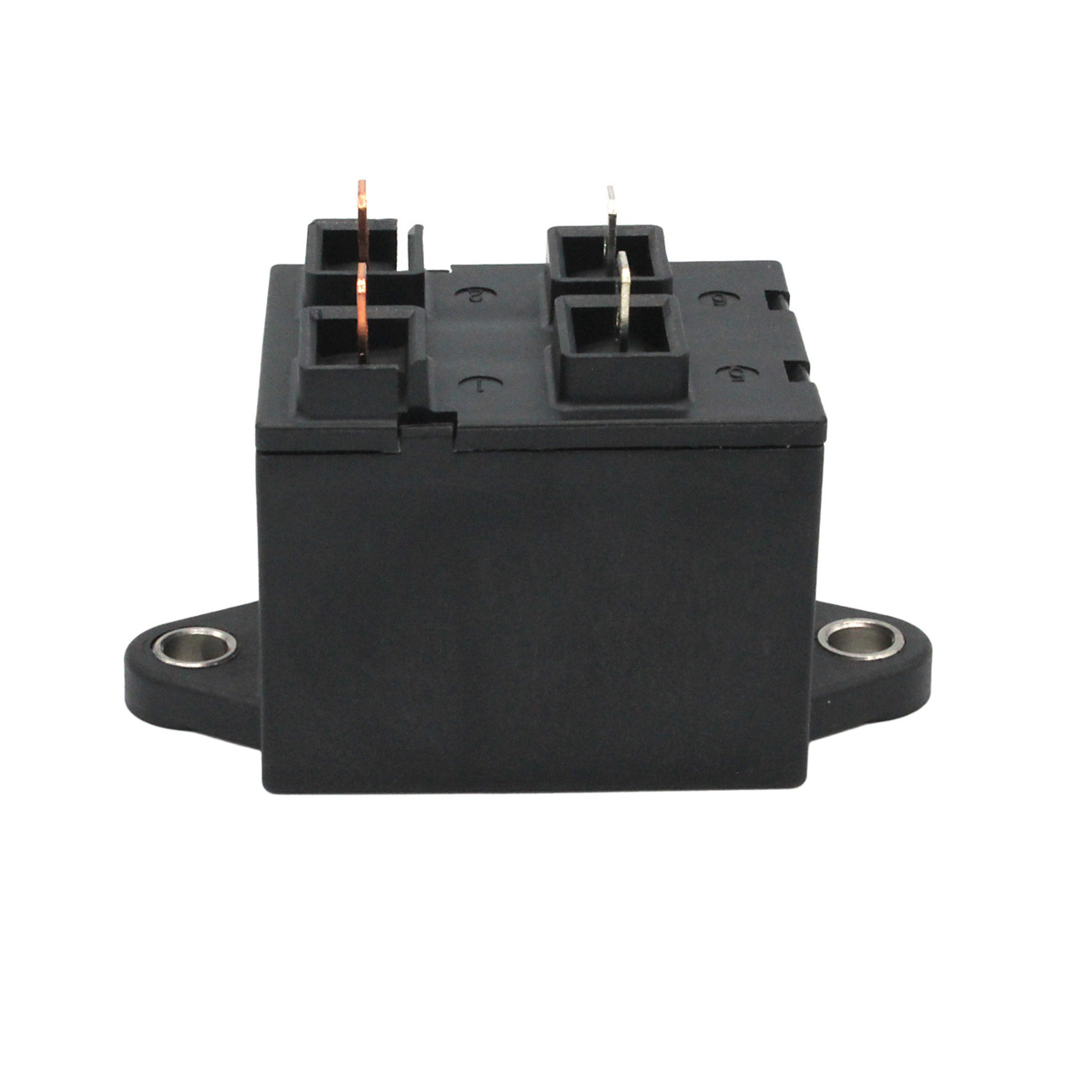

DCNHF20NH24-Q
CONTACTOR 20A 1.5KV 24Vcoil NP QC | Series: DCNHF20
The DCNHF20 Series high-voltage DC contactor relay is engineered for electric vehicle and industrial high-voltage DC applications that require flexible system integration and reliable low-current switching. Rated for 20A continuous current and up to 1500V DC, it is ideal for use in battery power supply systems, charging piles, motor control, circuit isolation, circuit protection, and industrial safety devices.
Featuring SPST normally open (NO) circuitry with non-polarized contacts, the DCNHF20 Series supports bidirectional current flow, making it well suited for a wide range of electrical systems. Its compact design helps minimize operational noise during switching, while a robust housing delivers dependable performance in demanding automotive and industrial environments.
The bottom-mounting DCNHF20 Series contactor is equipped with quick-connect (QC) terminals for efficient installation and secure electrical connections and is available with 12V DC or 24V DC coil voltage options to support common EV and industrial control systems.
This model (DCNHF20NH24-Q) features a 24V DC coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 20 |
Maximum DC Voltage (V) | 1500 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Housing | Nylon UL 94-V0 |
Coil Type | Single |
Aux Contacts | No |
Input Terminals | QC Terminal |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 3-4Nm Terminal: Pull/Push Force MAX 49N |
Coil Voltage | 24 |
- Quick-Connect (QC) terminals
- 24V DC coil rating
