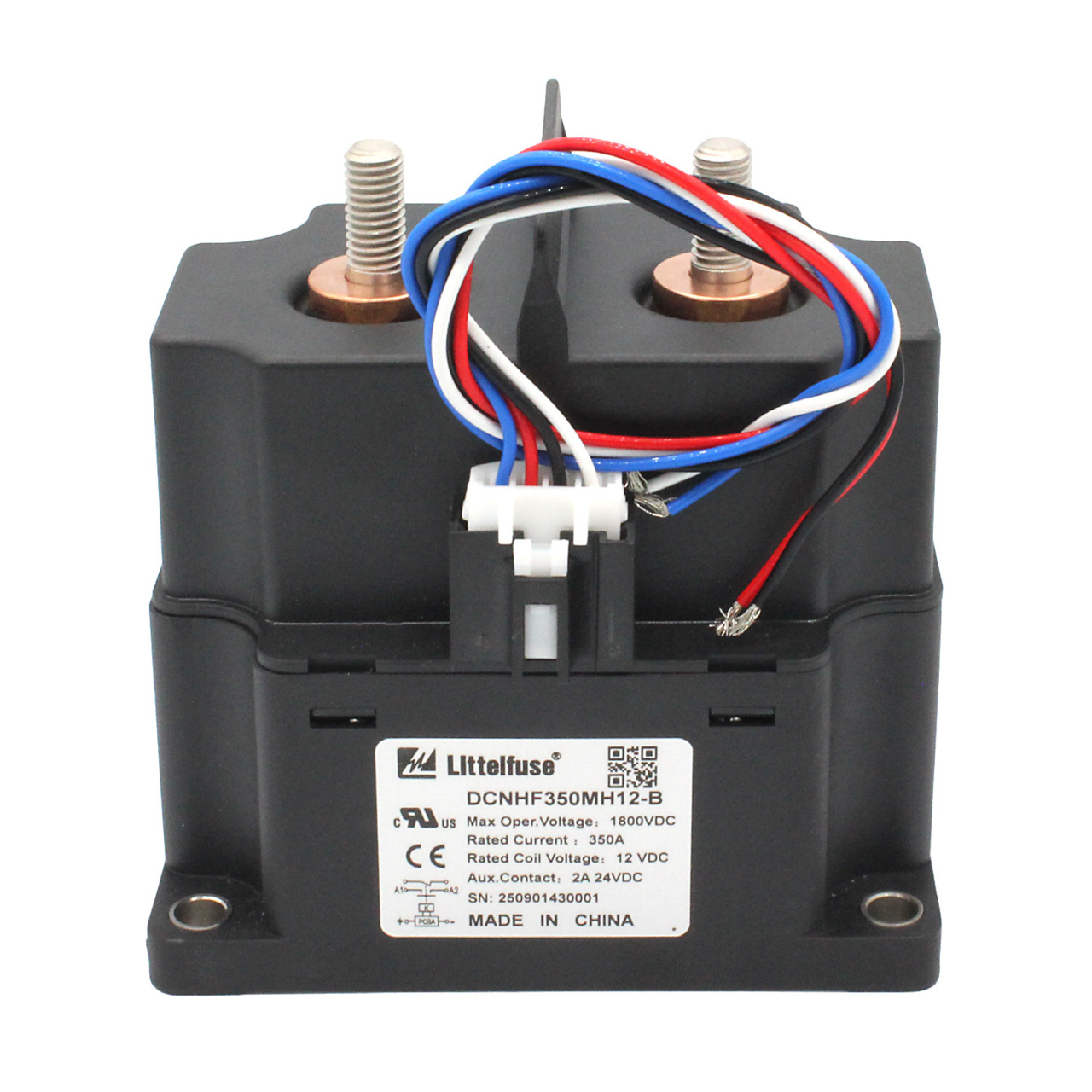

DCNHF350MH12-B
36NTACTOR 350A 1.8KV 12Vcoil NP Aux Std. | Series: DCNHF350
The DCNHF350 Series 350A 1800V Max double-coil, high-voltage DC contactor is designed for electric vehicle (EV) and industrial applications, including battery power supply, charging systems, motor control, circuit insulation, circuit protection, and safety devices.
Featuring non-polarized, sealed contacts, the DCNHF350 Series industrial and EV contactor supports flexible use in electrical systems regardless of polarity and can be mounted in any orientation, providing versatility for system design. Its double-coil economizer minimizes power consumption once the contactor is engaged, reducing heat generation and improving overall efficiency and reliability.
The DCNHF350 Series contactor also features an auxiliary contact and incorporates a PCBA for enhanced performance and reliability. The contactor is offered in 12V or 24V polarized coil configurations with internal thread or stud terminals.
This model (DCNHF350MH12-B) features a 12V DC coil rating and stud power connection.
| Property | Value |
|---|---|
Maximum DC Voltage (V) | 1800 |
Current Rating (Continuous) in Amps | 350 |
Circuitry | SPST |
Aux Contacts | Yes |
Polarized | No |
Coil Type | Double |
Contacts | Copper Alloy |
Housing | Nylon UL 94-V0 |
Ingress Protection | IP67 |
Input Terminals | M8 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Output Terminals | M5 |
Recommended Torque | Mounting: 3-4Nm Terminal: 12-15Nm |
Coil Voltage | 12 |
- 12V DC coil rating
- Stud power connection
