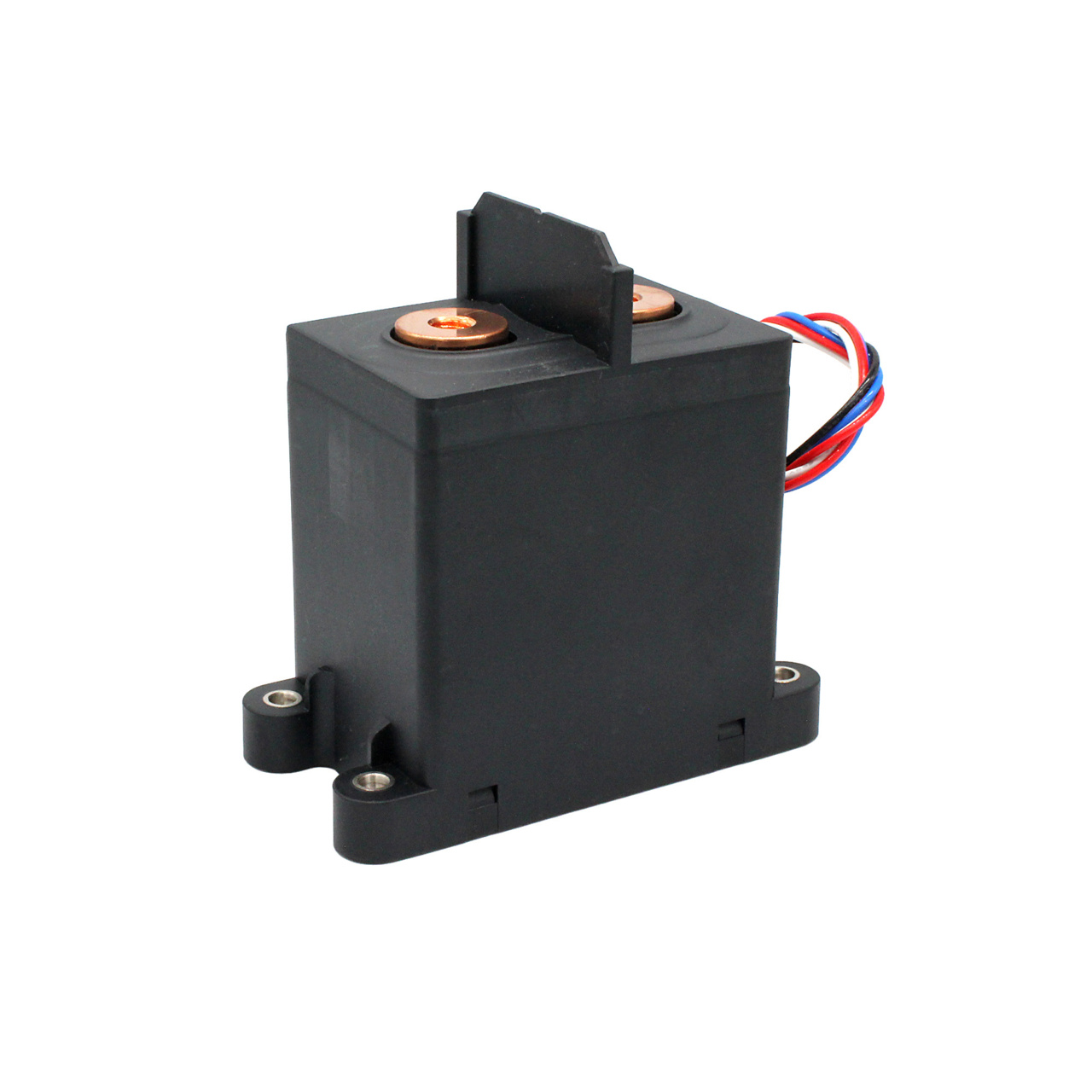

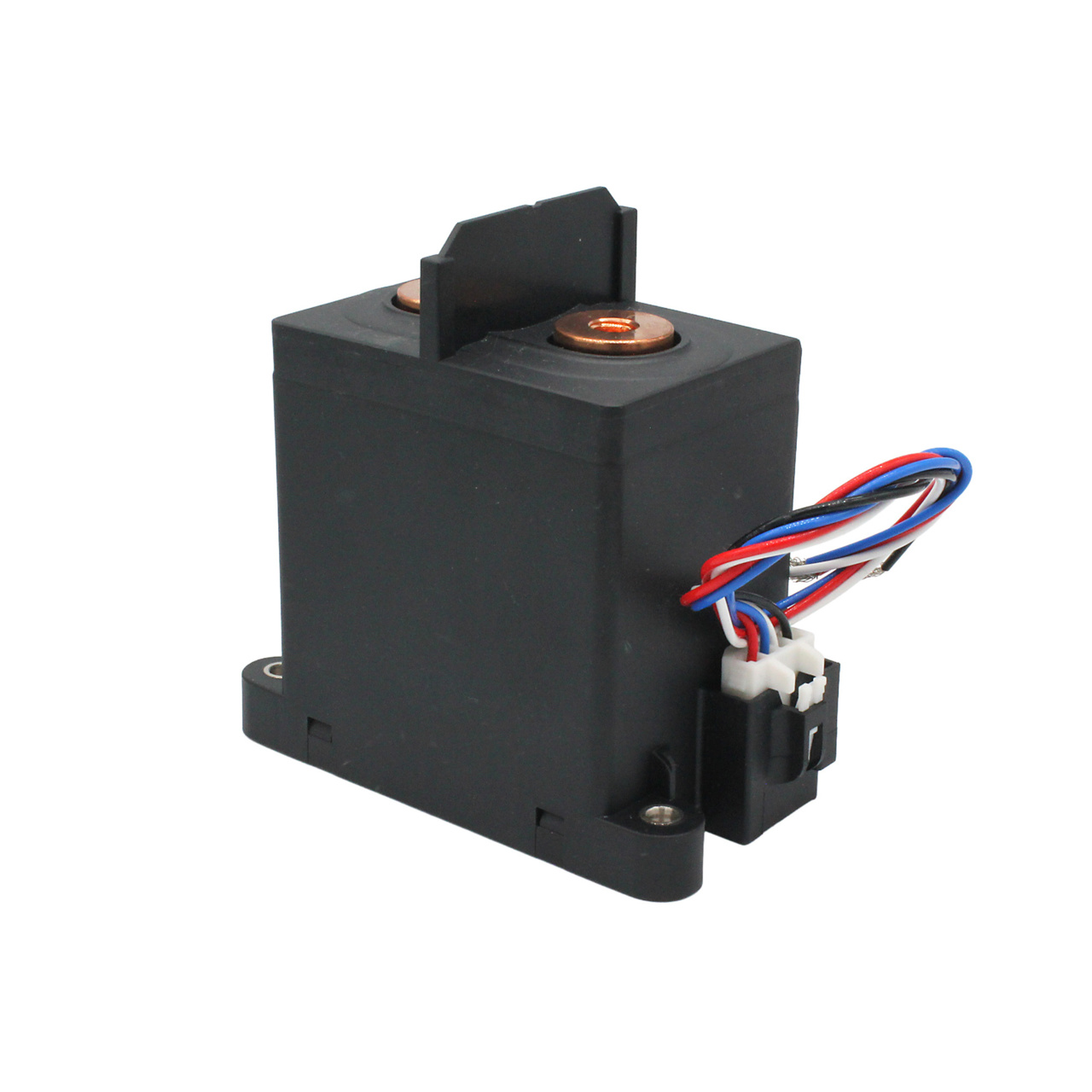

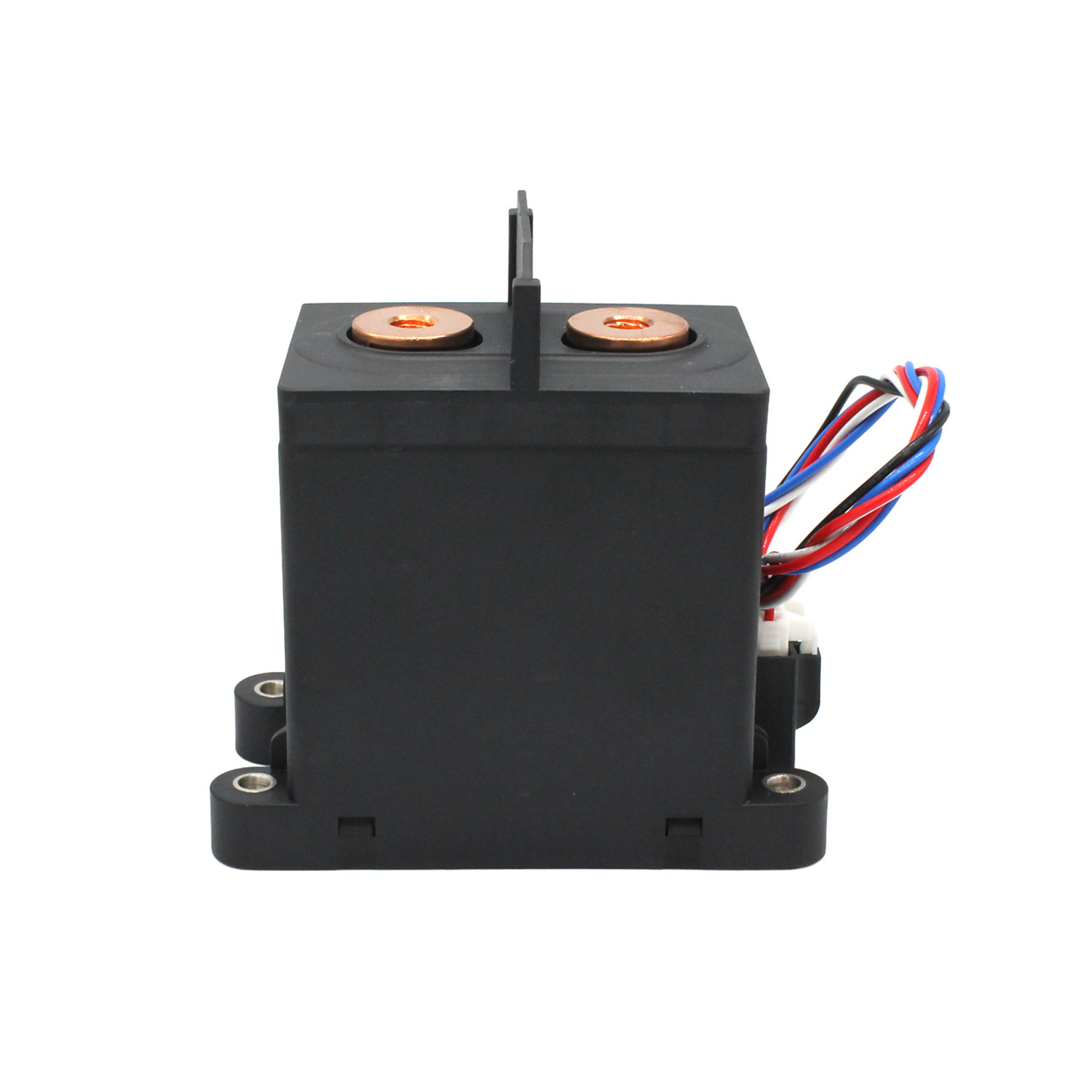

DCNHF400MH24-F
CONTACTOR 400A 1.8KV 24Vcoil NP Aux Fem | Series: DCNHF400
The DCNHF400 Series high-voltage DC contactor is designed for electric vehicle and industrial applications, including battery power supply, charging pile, motor control, circuit insulation, circuit protection, and safety devices. Rated for 400A continuous current and up to 1800V DC, the contactor delivers dependable high voltage switching performance for demanding systems. Its compact, corrosion-resistant resin housing minimizes operational noise and ensures dependable performance in harsh environments.
Sealed, non-polarized contacts prevent electrical arc leakage and support a variety of electrical system configurations. Its double-coil economizer minimizes power consumption once the contactor is engaged, reducing heat generation and improving overall efficiency and reliability.
With bottom-mount installation with no orientation restrictions, internal thread terminals, and 12V or 24V coil voltage options, the DCNHF400 Series contactor relay provides robust, flexible performance across a wide range of EV and industrial applications.
This model (DCNHF400MH24-F) has a 24V DC coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 400 |
Maximum DC Voltage (V) | 1800 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Housing | Nylon UL 94-V0 |
Coil Type | Double |
Aux Contacts | Yes |
Input Terminals | M8 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 3-4Nm Terminal: 9-11Nm |
Coil Voltage | 24 |
- 24V DC coil rating
