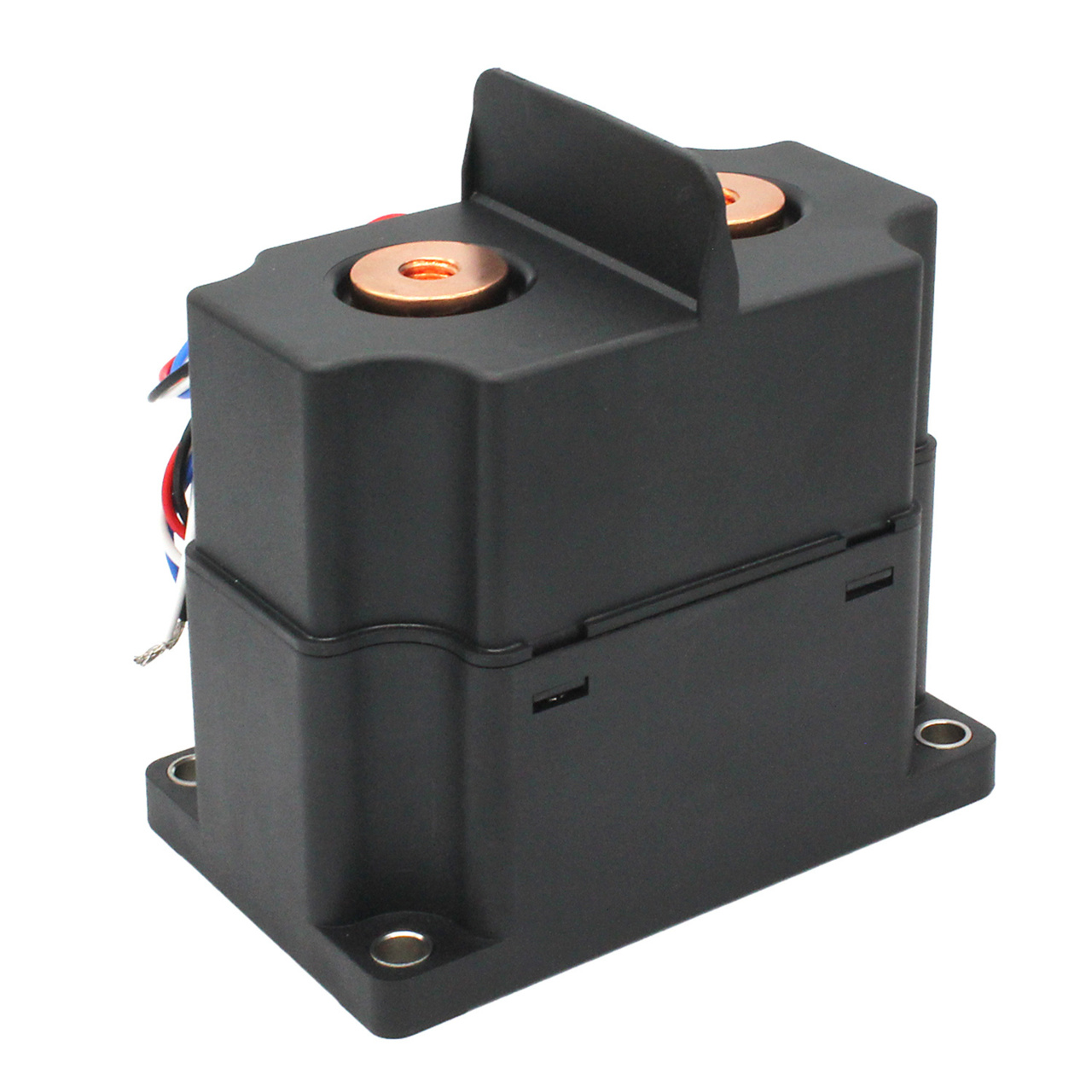

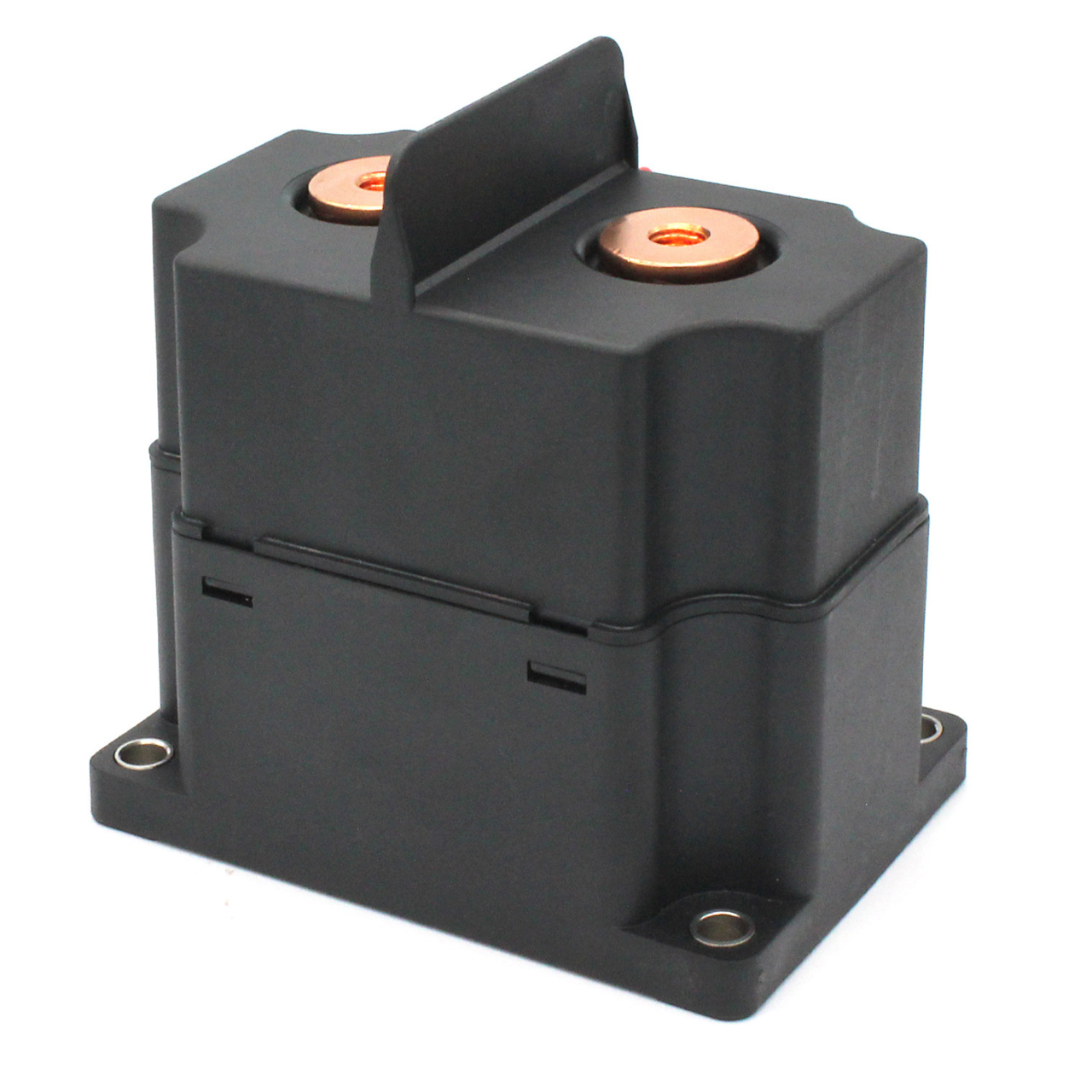

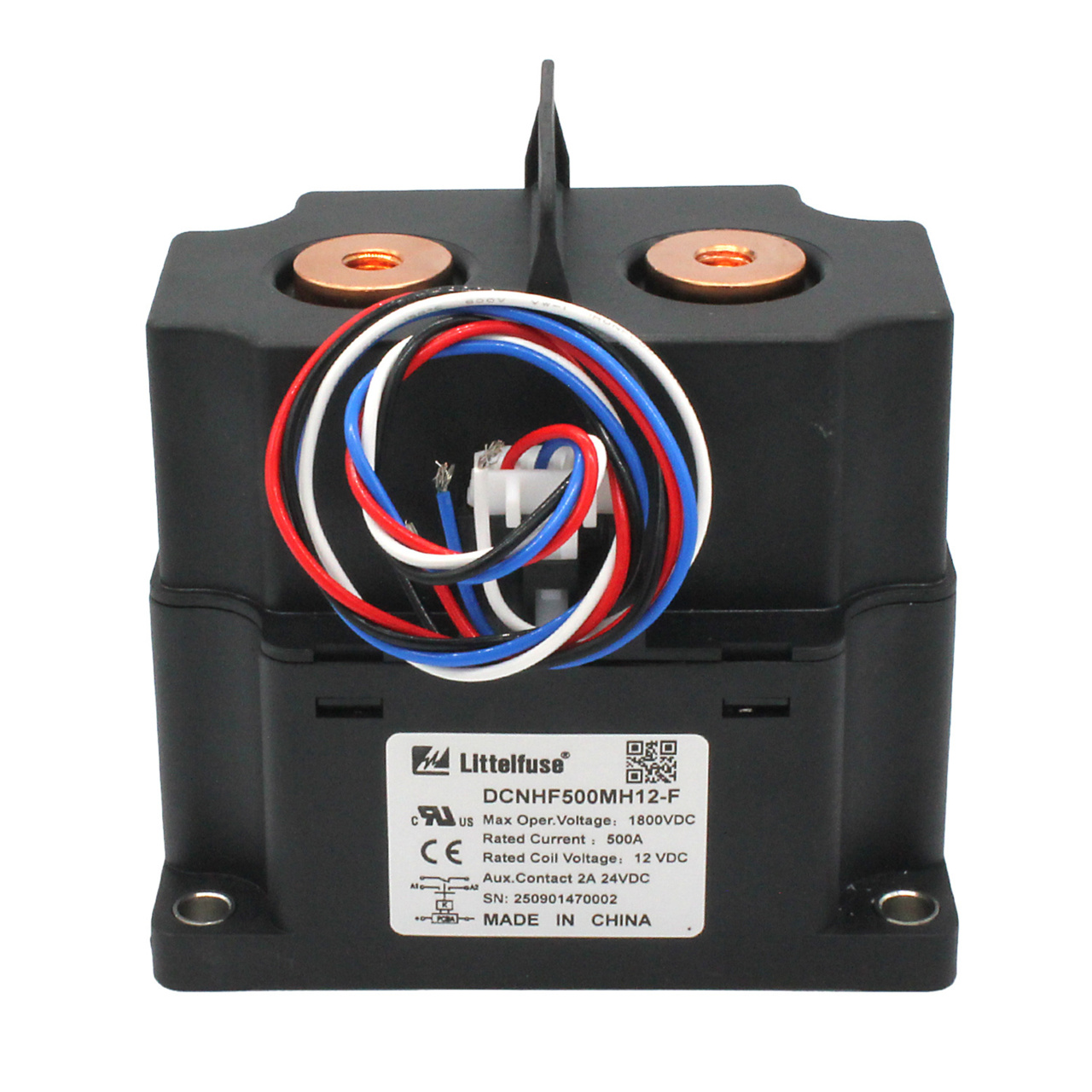

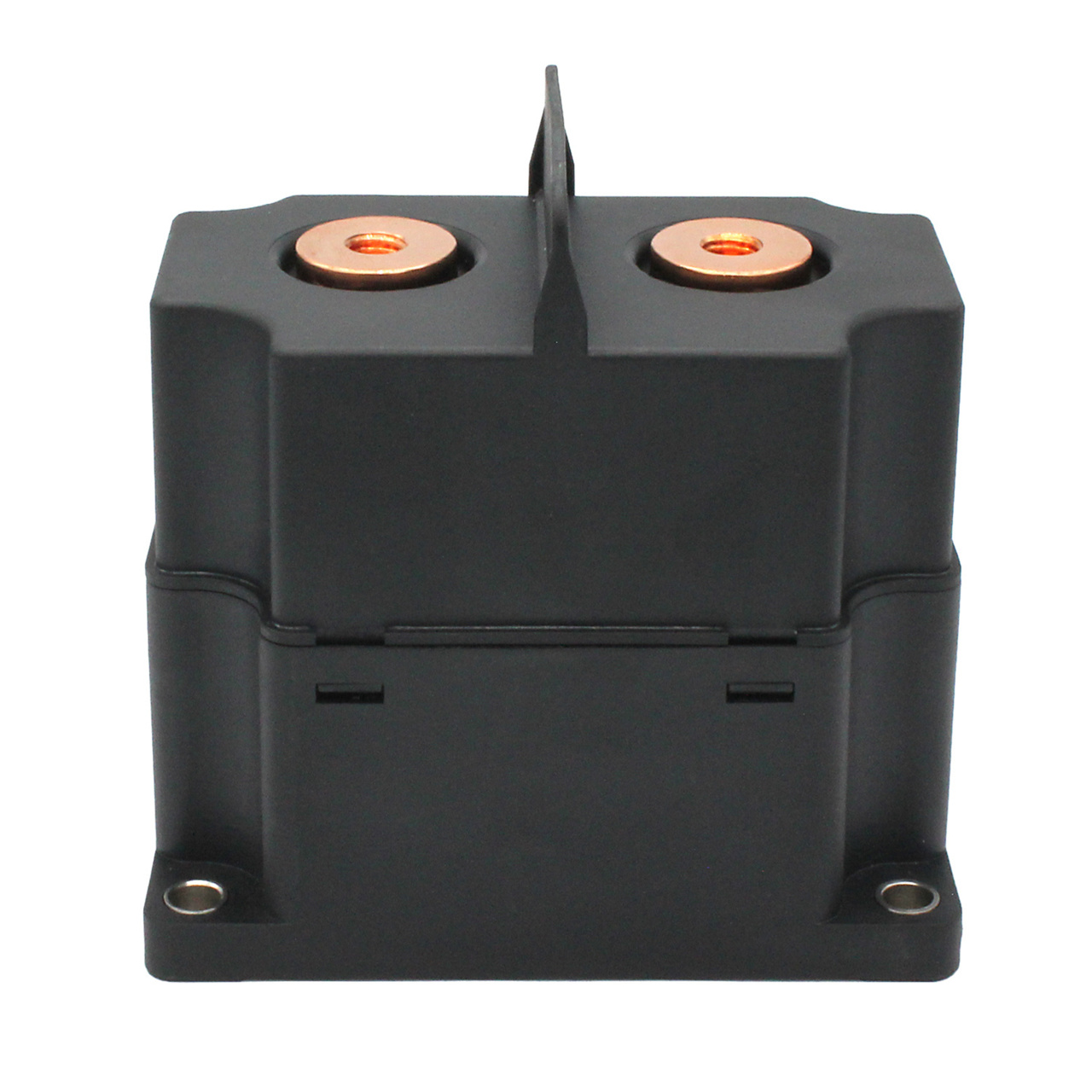

DCNHF500MH12-F
CONTACTOR 500A 1.8KV 12Vcoil NP Aux Fem | Series: DCNHF500
The DCNHF500 Series high-voltage DC contactor has a 500A continuous current rating and a maximum contact voltage of 1800V. The dependable contactor is designed for use in electric vehicle (EV) and industrial applications, such as battery power supply, charging systems, motor control, circuit insulation, circuit protection, and safety critical systems.
Featuring non-polarized, sealed contacts and a double-coil design, this industrial and EV contactor supports flexible operation in electrical systems regardless of polarity and can be mounted in any orientation. Its double-coil economizer minimizes power consumption once the contactor is engaged, reducing heat generation and improving overall efficiency and reliability.
The DCNHF500 Series contactor also includes an auxiliary contact and is available in 12V or 24V polarized coil configurations with internal thread terminals.
This model (DCNHF500MH12-F) has a 12V DC coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 500 |
Maximum DC Voltage (V) | 1800 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Housing | Nylon UL 94-V0 |
Coil Type | Double |
Aux Contacts | Yes |
Input Terminals | M8 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 3-4Nm Terminal: 12-15Nm |
Coil Voltage | 12 |
- 12V DC coil rating
