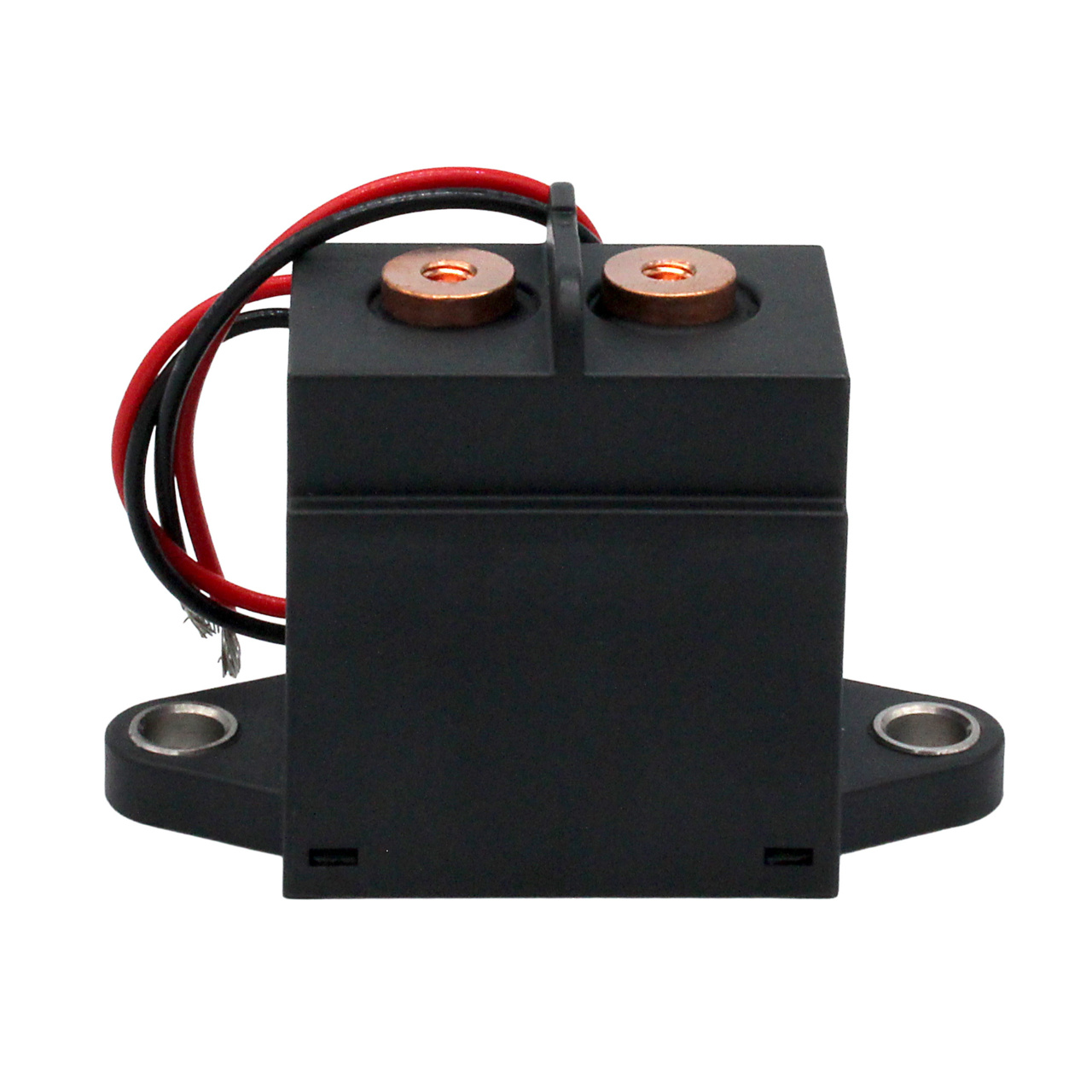

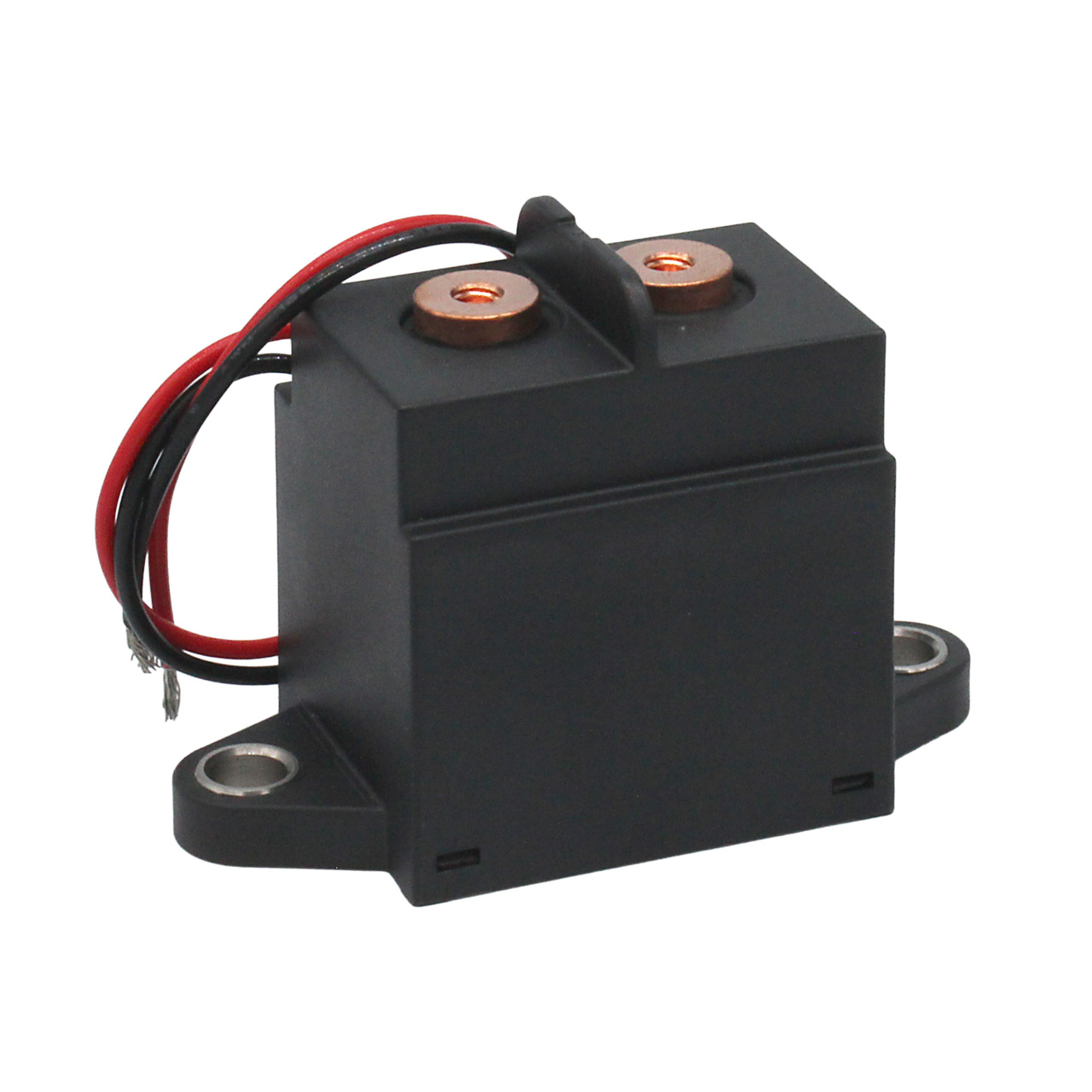

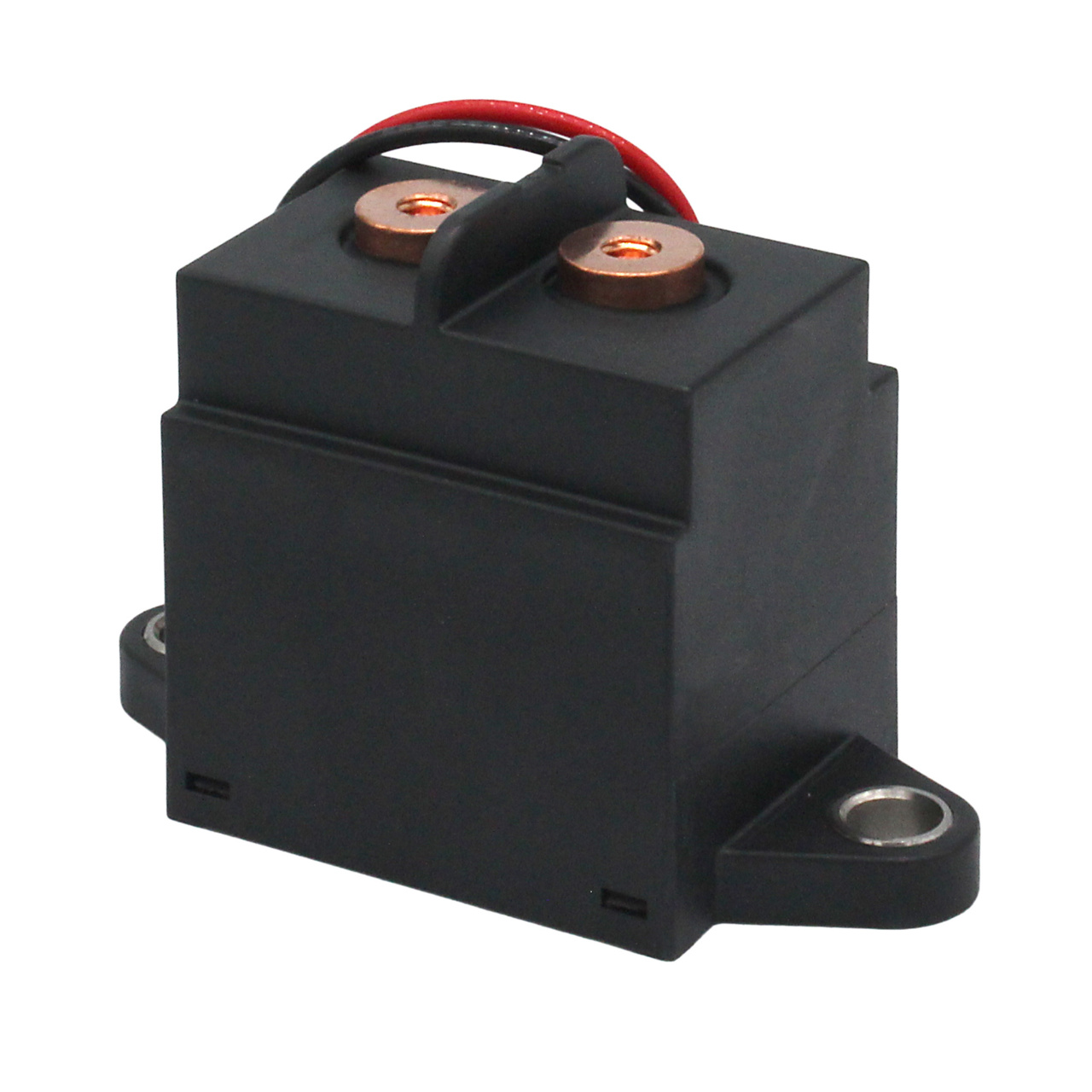

DCNHF60NG12-F
CONTACTOR 60A 1KV 12Vcoil NP Fem | Series: DCNHF60
The DCNHF60 Series high-voltage DC contactor relay is designed for electric vehicle and industrial high-voltage DC applications that require flexible system integration. Rated for 60A continuous current and up to 1000V DC, it is well suited for battery power supply systems, charging piles, motor control, circuit isolation, circuit protection, and industrial safety devices.
Featuring SPST normally open (NO) circuitry with non-polarized contacts, the DCNHF60 Series contactor supports bidirectional current switching to accommodate a wide range of electrical systems. Its compact structure helps reduce operational noise, while a durable housing provides reliable performance in demanding automotive and industrial environments.
The DCNHF60 Series is equipped with internal-thread terminals for secure connections and simplified integration. Multiple coil voltage options (12V DC, 24V DC, and 48V DC) are available to support a variety of EV and industrial control requirements.
This model (DCNHF60NG12-F) features a 12V DC coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 60 |
Maximum DC Voltage (V) | 1000 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Connector | Wire Leads |
Housing | Nylon UL 94-V0 |
Coil Type | Single |
Aux Contacts | No |
Input Terminals | M4 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 3-4Nm Terminal: 2-3Nm |
Coil Voltage | 12 |
- Internal-thread power connection
- 12V DC coil rating
