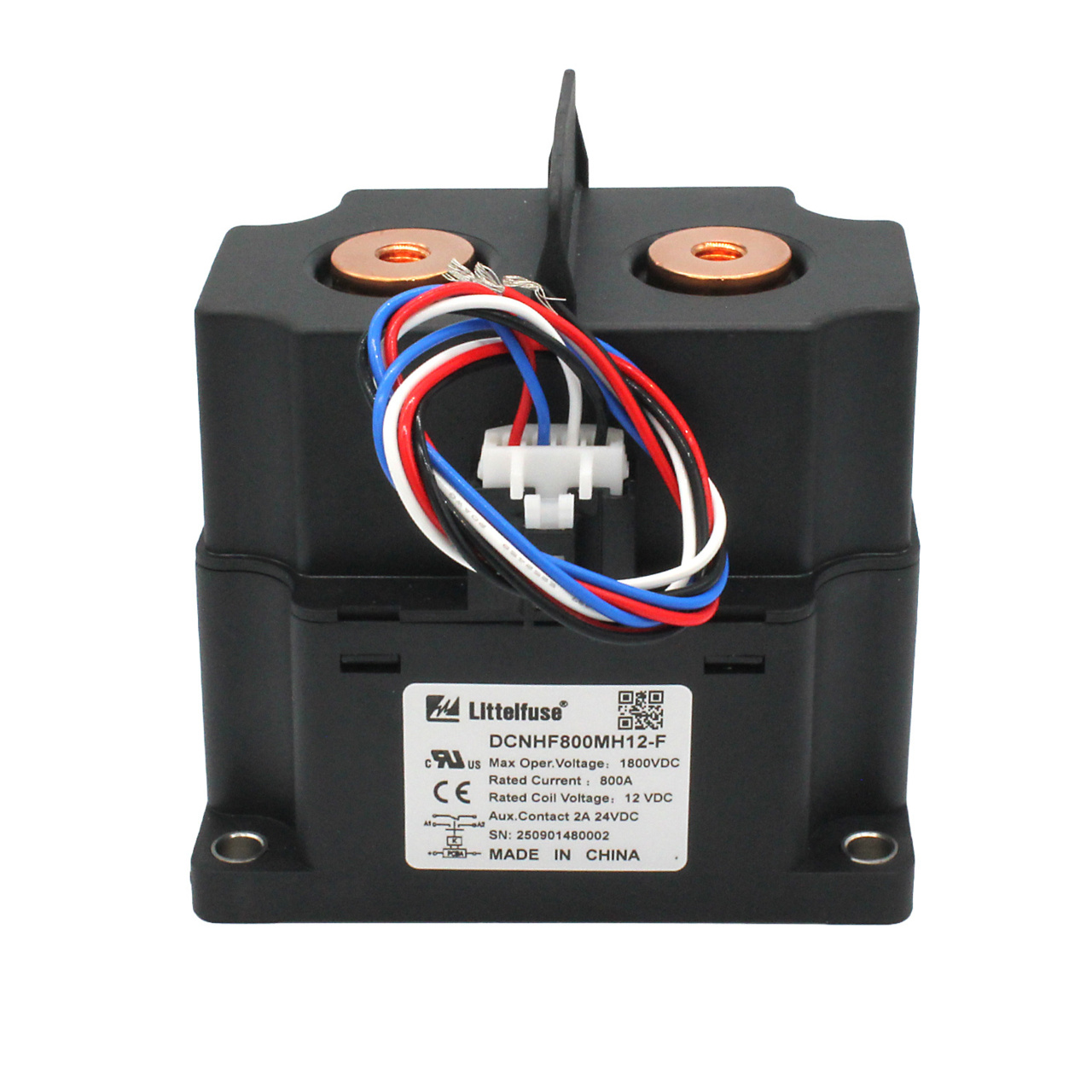

DCNHF800MH12-F
CONTACTOR 800A 1.8KV 12Vcoil NP Aux Fem | Series: DCNHF800MH
Designed for electric vehicle and industrial applications, the DCNHF800MH Series high-voltage DC contactor is suitable for battery power supply, charging systems, motor control, circuit insulation, circuit protection, and industrial safety devices. Rated for 800A continuous current and up to 1800V operating voltage, its non-polarized contacts ensure this contactor is a match for a variety of electrical systems.
Its double-coil economizer minimizes power consumption once the contactor is engaged, reducing heat generation and improving overall efficiency and reliability. While the corrosion-resistant resin housing provides reliable performance in harsh environments. Sealed contacts prevent electrical arc leakage for maximum safety, and the bottom-mount contactor can be installed in any orientation for flexible system integration.
This model (DCNHF800MH12-F) has a 12V DC coil rating.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 800 |
Maximum DC Voltage (V) | 1800 |
Circuitry | SPST |
Ingress Protection | IP67 |
Output Terminals | M5 |
Contacts | Copper Alloy |
Housing | Nylon UL 94-V0 |
Coil Type | Double |
Aux Contacts | Yes |
Input Terminals | M8 |
Mounting Method | Bottom Mount |
Normal Position | Normally Open |
Polarized | No |
Recommended Torque | Mounting: 3-4Nm Terminal: 12-15Nm |
Coil Voltage | 12 |
- 12V DC coil rating
