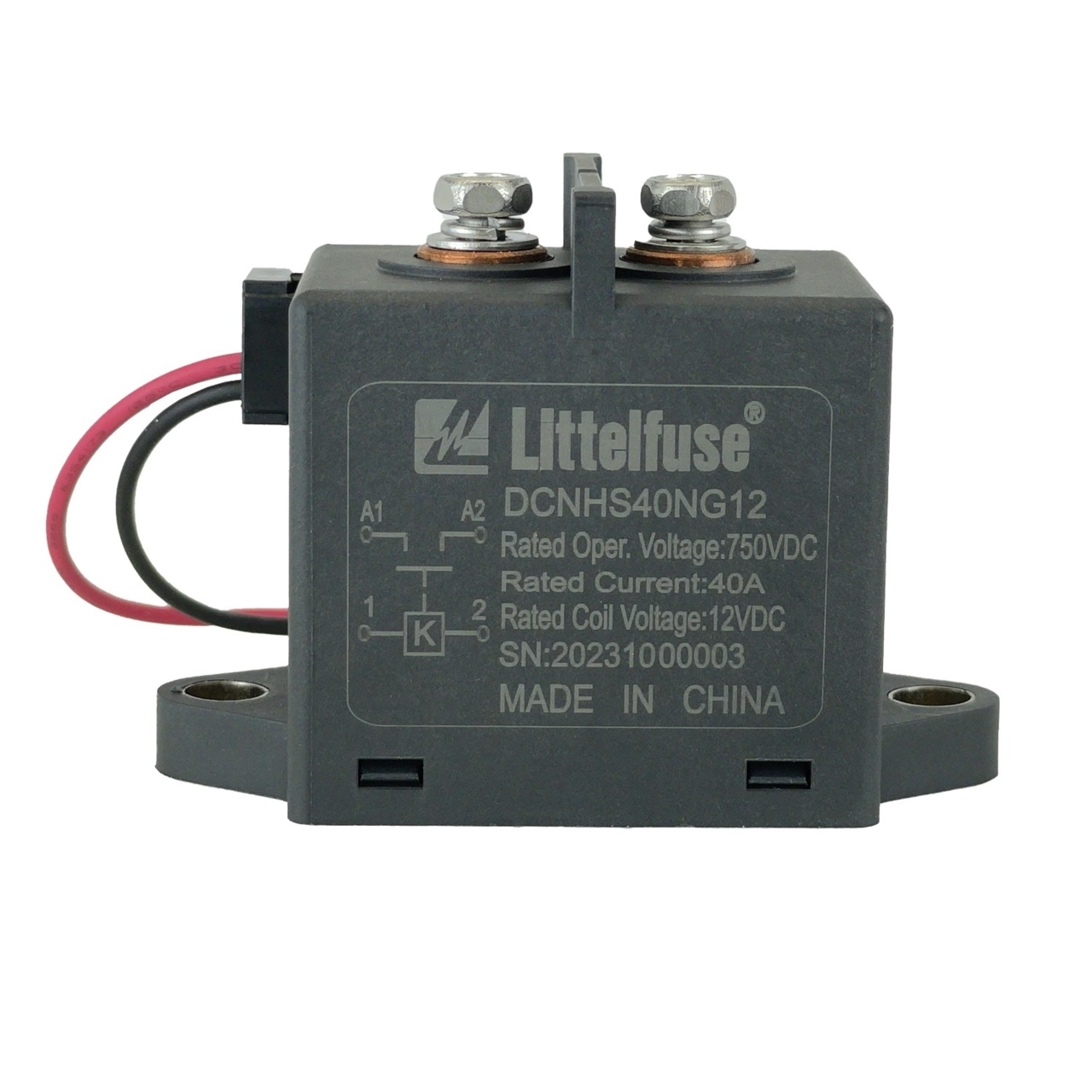

DCNHS40NG12
DCNHS 40A 750V NP 12Vcoil | Series: DCNHSThe DCNHS40NG12 is a 40A, 750V DC, normally open, 12V Coil, DC Contactor relay with a resin body for corrosion resistance in harsh automotive environments. Ceramic brazing sealed contacts help ensure there is no leakage of electrical arc for safety. The contactor includes a magnetic blow out to achieve a rapid extinguishing of the DC arc.
- Normally open relay design
- Housing provides corrosion resistance in harsh automotive environments
- Ceramic brazing sealed contacts with no leakage of electrical arc for maximum safety
- RoHS compliant
- No mounting orientation restrictions
| Property | Value |
|---|---|
Voltage Rating (V) | 1000 |
Current Rating (Continuous) in Amps | 40 |
Circuitry | SPST |
Coil Type | Single |
Contacts | Ceramic |
Housing | Nylon UL 94-V0 |
Ingress Protection | IP40 |
Mounting Method | Bottom |
Normal Position | Normally Open |
Output Terminals | M4 |
Recommended Torque | Mounting: 4-6 Nm, Contact: 1.7-2.5 Nm |
Temperature Maximum (°C) | 85 |
Temperature Minimum (°C) | -40 |
Coil Voltage | 12 |
