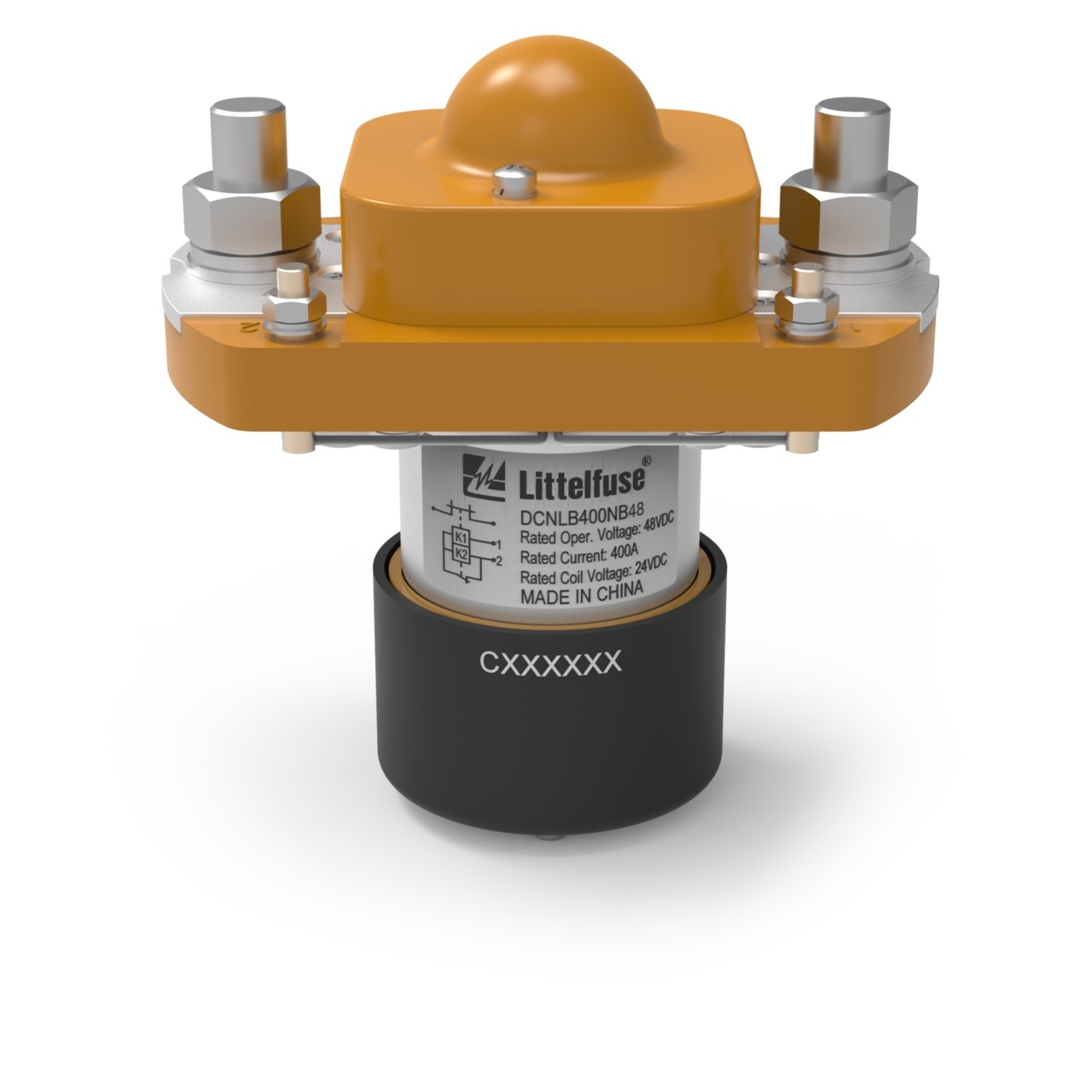

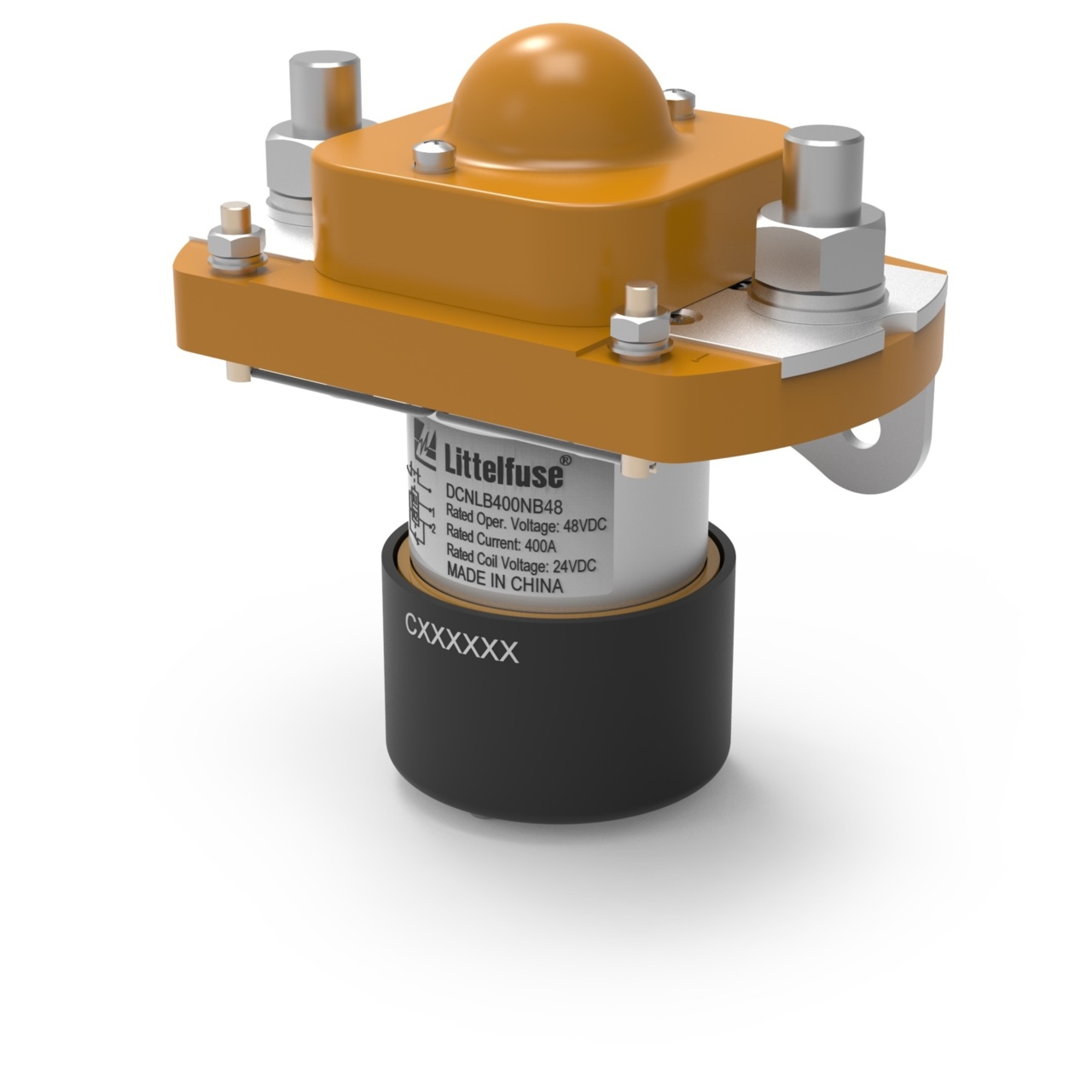

DCNLB400NB48
DCNLB 400A 48V NC 48Vcoil | Series: DCNLBThe DCNLB Series 48V DC contactor relay (DCNLB400NB24) is a normally closed relay with a dual-coil design with coil voltage rating of 48V.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 400 |
Voltage Rating (V) | 60 |
Circuitry | SPST NC |
Ingress Protection | IP4X |
Input Terminals | Bolt: M10 |
Output Terminals | M10 Bolt |
Contacts | Non-polarized |
Normal Position | Normally Closed |
Hardware | M10 Nuts |
Housing | Metal |
Mounting Method | SIDE MOUNT |
Recommended Torque | 6.8-7.8 N.m |
Agency Approval - Shock | 3G |
Agency Approval - Vibration | 1~50Hz (freq.1~10Hz, amp;.25/f²; freq.10~50Hz, ampl.250/f²) |
Temperature Maximum (°C) | 85 |
Temperature Minimum (°C) | -40 |
Temperature Maximum (°F) | 185 |
Temperature Minimum (°F) | -40 |
Aux Contacts | No |
Coil Type | Dual |
Polarized | No |
Coil Voltage | 48 |
- 400A continuous current rating for high-current contact switching
- Coil voltage rating of 48V
- Dual-coil relay design for reduced electrical system drain
