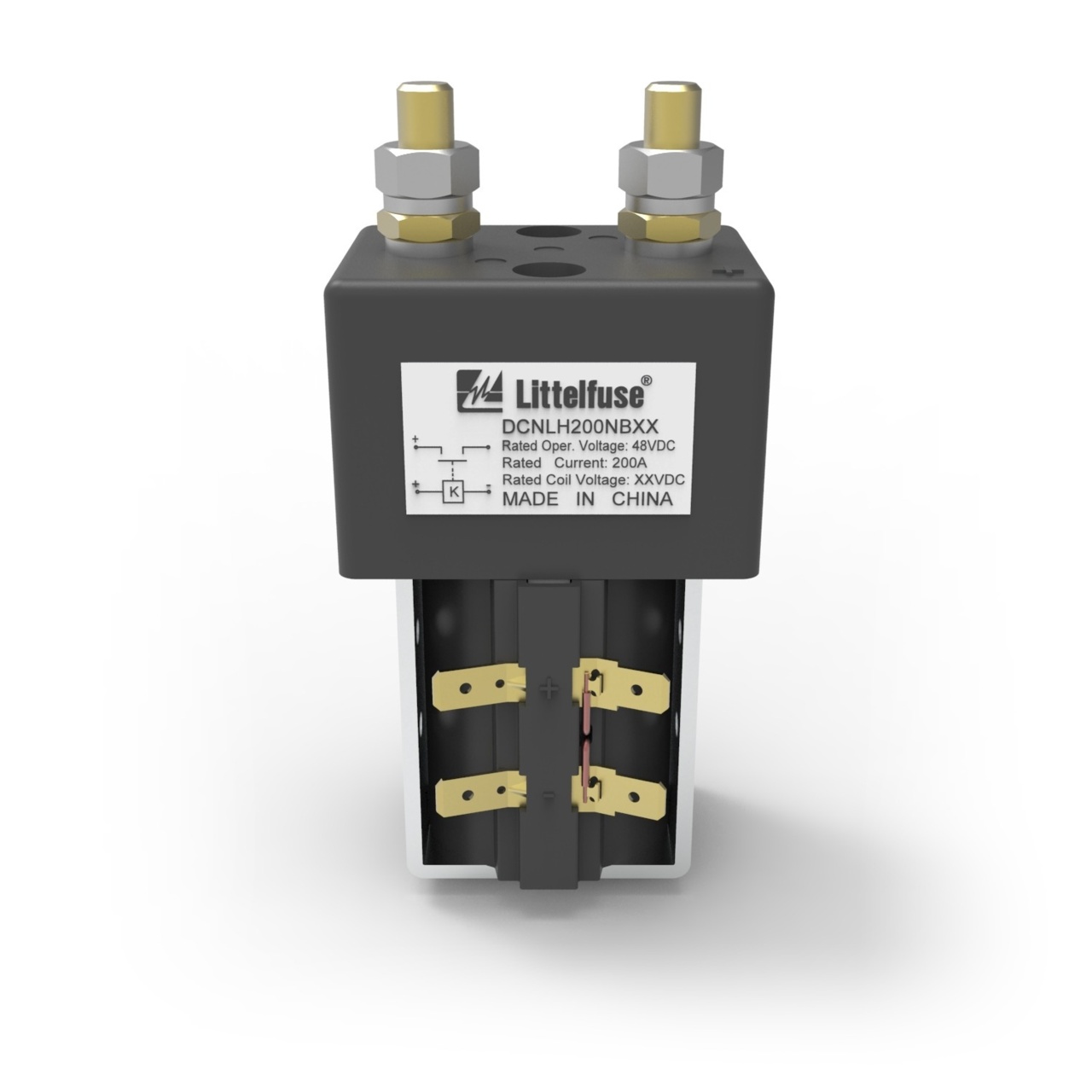

DCNLH - DCNLH200NB12 FRONT JPG
DCNLH - DCNLH200PD12 AL JPG
DCNLH - DCNLH200NB48 FRONT JPG
DCNLH - DCNLH200PD24 FRONT JPG

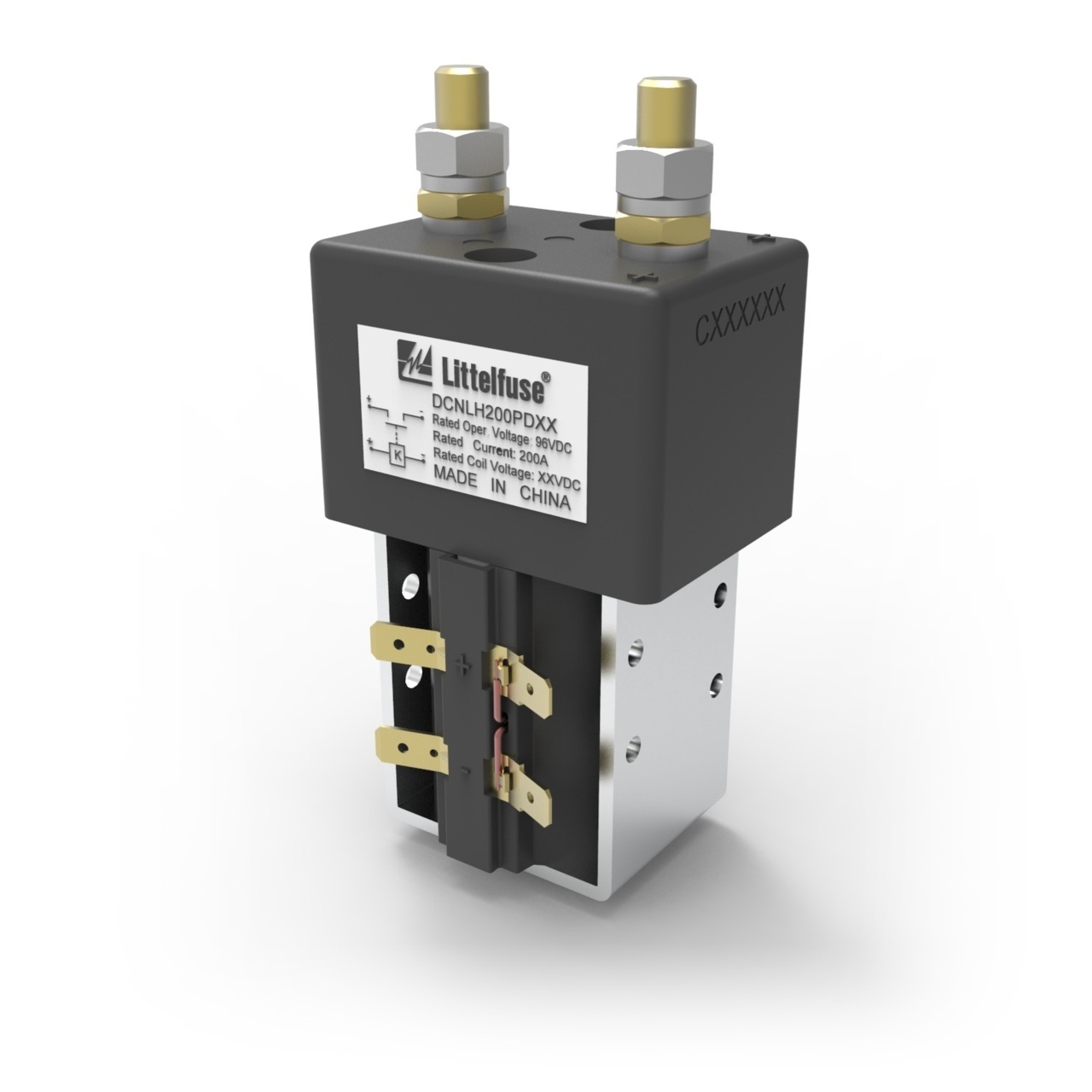

DCNLH - DCNLH200PD48 AL JPG
DCNLH - DCNLH200NB24 FRONT JPG

DCNLH200NB12

DCNLH 200A 48V NP 12Vcoil | Series: DCNLH
info

The DCNLH magnetically latching DC Contactor Relay is ideal for high-current electric control systems of communication power supplies, forklifts, uninterruptible power supplies (UPS), machinery, and more.

This model of the DCNLH magnetic latching, bistable relay (DCNLH200NB12) features a 200A continuous current rating, a 12V coil, and non-polarized contacts rated for 48V (typical) and 60V (max).

PropertyValue
Current Rating (Continuous) in Amps
200
Maximum DC Voltage (V)
60
Circuitry
SPST NO
Input Terminals
Bolt : M8
Output Terminals
M8 Bolt
Contacts
Silver alloy contact
Normal Position
Normally Open
Hardware
M8 Nuts
Mounting Method
SIDE MOUNT
Recommended Torque
4~5N.m
Agency Approval - Shock
3G
Agency Approval - Vibration
1~50Hz (freq.1~10Hz, amp;.25/f²; freq.10~50Hz, ampl.250/f²)
Temperature Maximum (°C)
85
Temperature Minimum (°C)
-40
Temperature Maximum (°F)
185
Temperature Minimum (°F)
-40
Coil Type
Single
Aux Contacts
No
Polarized
No
Coil Voltage
12
  • 200A continuous current rating for high-current contact switching
  • Main contacts are rated for 48V (typical) and 60V (max)
  • 12V coil rating
  • Non-polarized contacts
  • Robust standard industrial footprint
