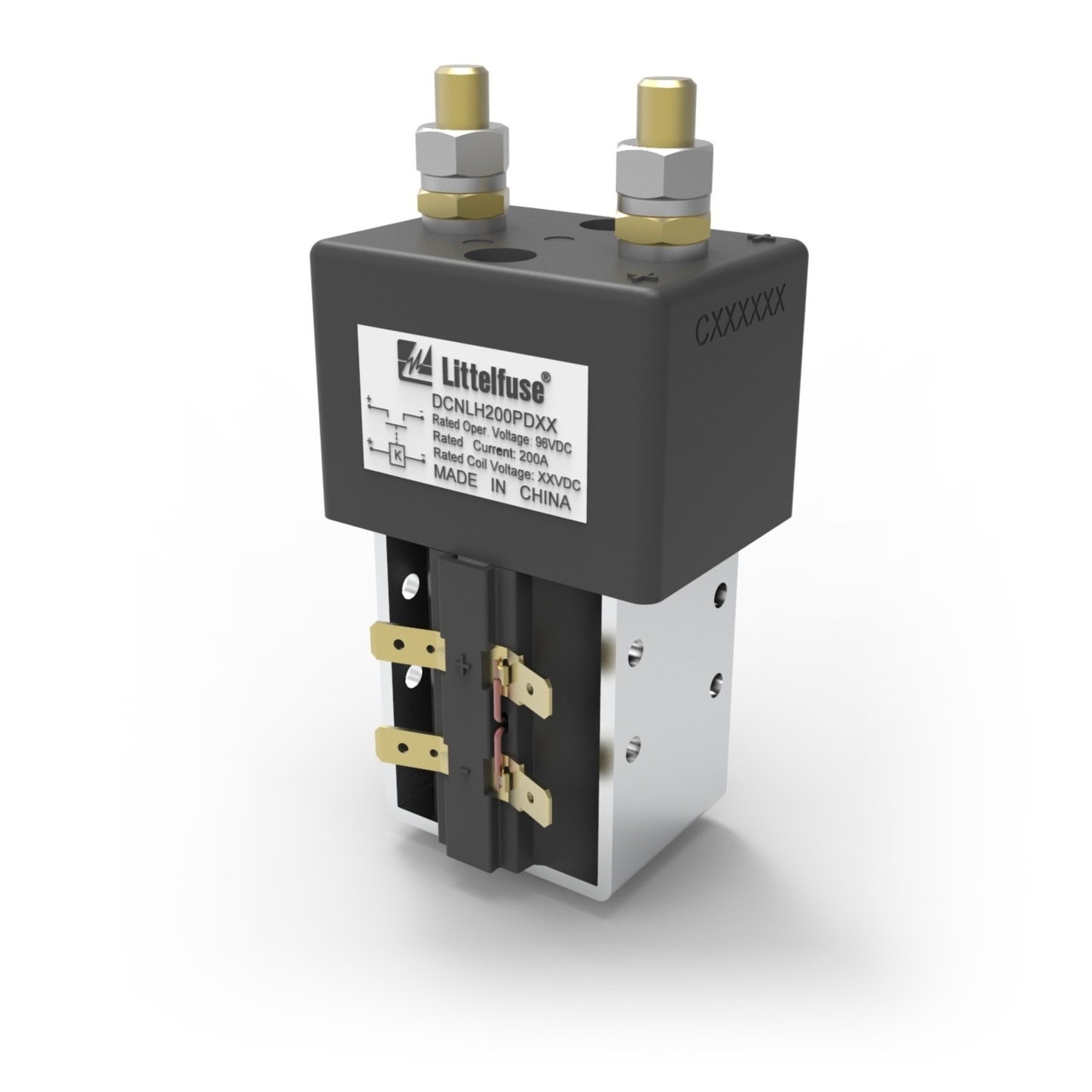

DCNLH200PD24
DCNLH 200A 96V P 24Vcoil | Series: DCNLHThe DCNLH magnetically latching DC Contactor Relay is ideal for high-current electric control systems of communication power supplies, forklifts, uninterruptible power supplies (UPS), machinery, and more.
This model of the DCNLH magnetic latching, bistable relay (DCNLH200PD24) features a 200A continuous current rating, a 24V coil, and polarized contacts rated for 96V (typical) and 110V (max).
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 200 |
Voltage Rating (V) | 110 |
Circuitry | SPST NO |
Input Terminals | Bolt : M8 |
Output Terminals | M8 Bolt |
Contacts | Silver alloy contact |
Normal Position | Normally Open |
Hardware | M8 Nuts |
Mounting Method | SIDE MOUNT |
Recommended Torque | 4~5N.m |
Agency Approval - Shock | 3G |
Agency Approval - Vibration | 1~50Hz (freq.1~10Hz, amp;.25/f²; freq.10~50Hz, ampl.250/f²) |
Temperature Maximum (°C) | 85 |
Temperature Minimum (°C) | -40 |
Temperature Maximum (°F) | 185 |
Temperature Minimum (°F) | -40 |
Coil Type | Single |
Aux Contacts | No |
Polarized | Yes |
Coil Voltage | 24 |
- 200A continuous current rating for high-current contact switching
- Main contacts are rated for 96V (typical) and 110V (max)
- 24V coil rating
- Polarized contacts
- Robust standard industrial footprint
