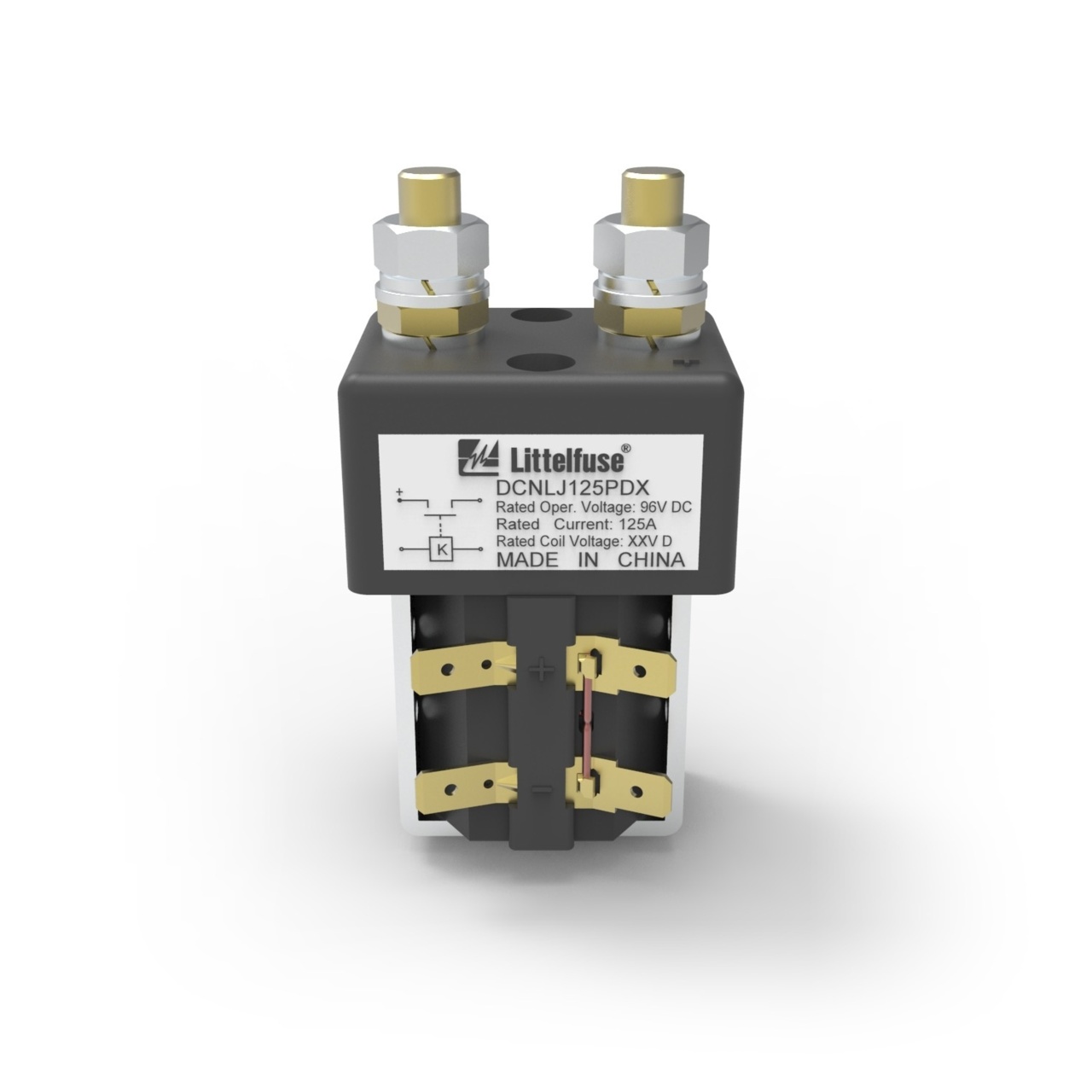

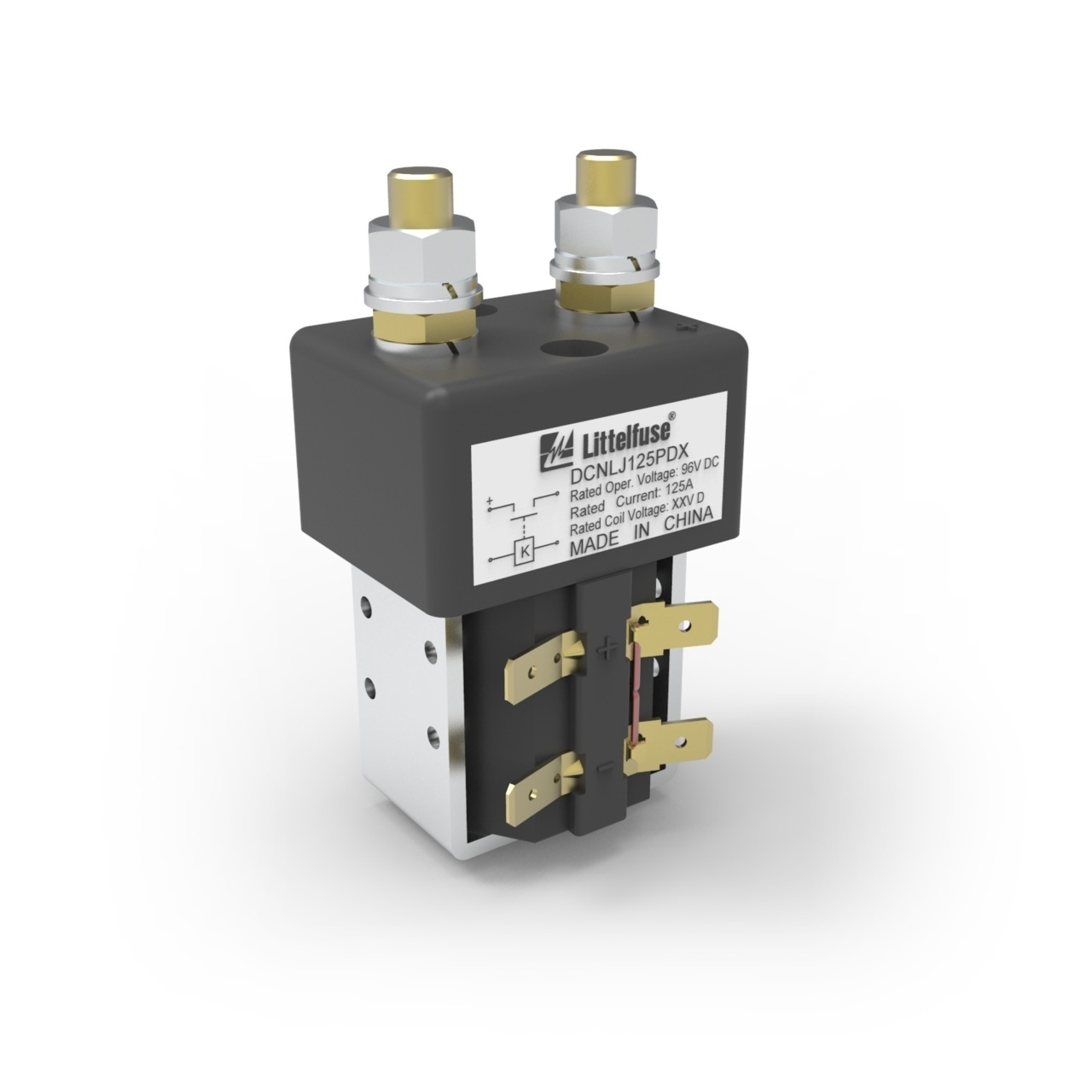

DCNLJ125PD60
DCNLJ 125A 96V P 60Vcoil | Series: DCNLJDesigned for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 125A High-Current High-Voltage DC Contactor Relay has a normally open contact arrangement and features a contact voltage drop of ≤80 mV @ 100A.
This model of the DCNLJ125 series (DCNLJ125PD60) DC contactor has a 60V coil and polarized contacts rated for 96V (typical) and 110V (max).
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 125 |
Voltage Rating (V) | 110 |
Circuitry | SPST NO |
Input Terminals | Bolt : M8 |
Normal Position | Normally Open |
Mounting Method | SIDE MOUNT |
Recommended Torque | 1.5~1.8N.m |
Agency Approval - Shock | 3G |
Temperature Maximum (°C) | 85 |
Temperature Minimum (°C) | -40 |
Temperature Maximum (°F) | 185 |
Temperature Minimum (°F) | -40 |
Aux Contacts | No |
Coil Type | Single |
Polarized | Yes |
Coil Voltage | 60 |
- Main contacts rated for 96 V (typical) and 110 V (max)
- 60 V coil rating
- Polarized contacts
