DCNLM100NB24

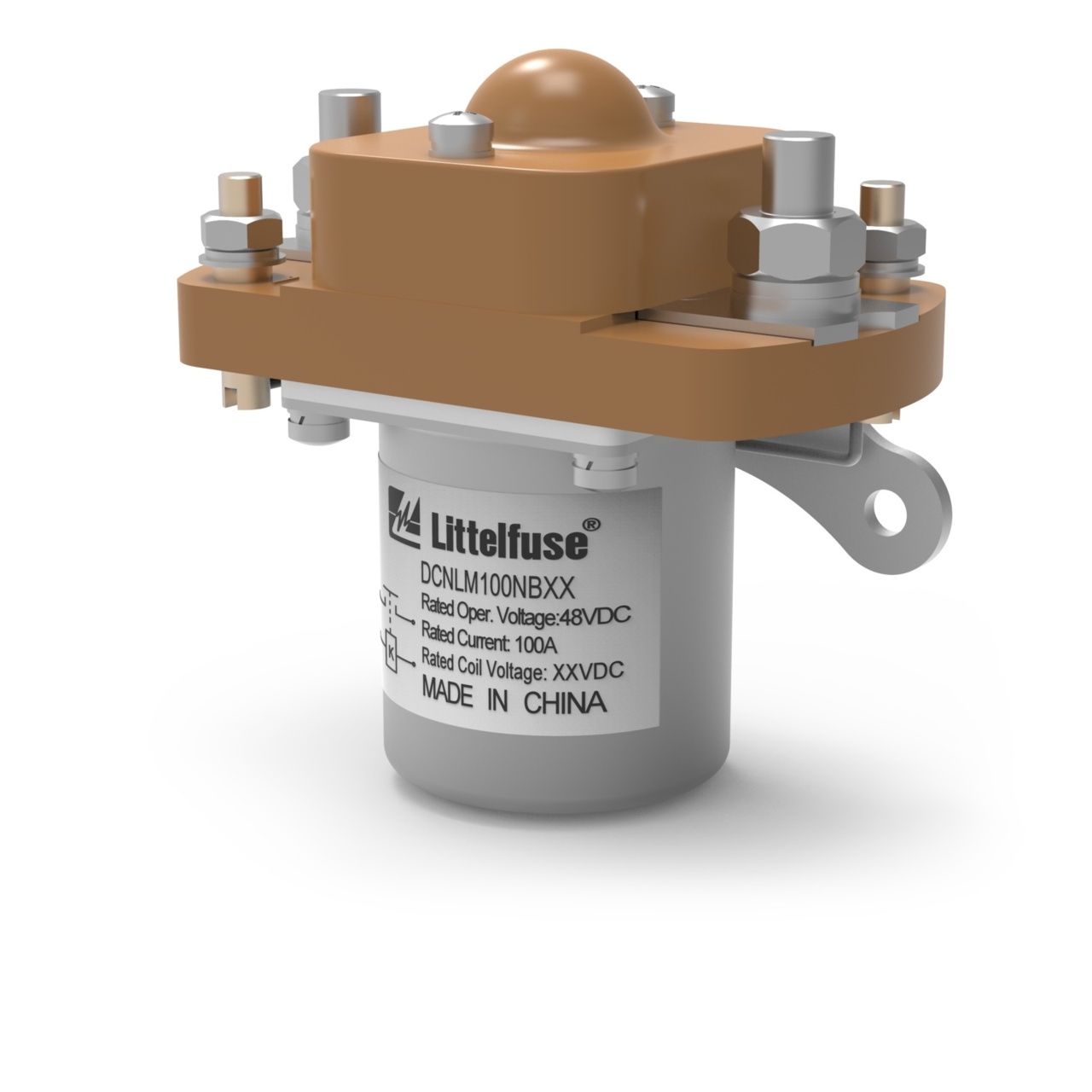

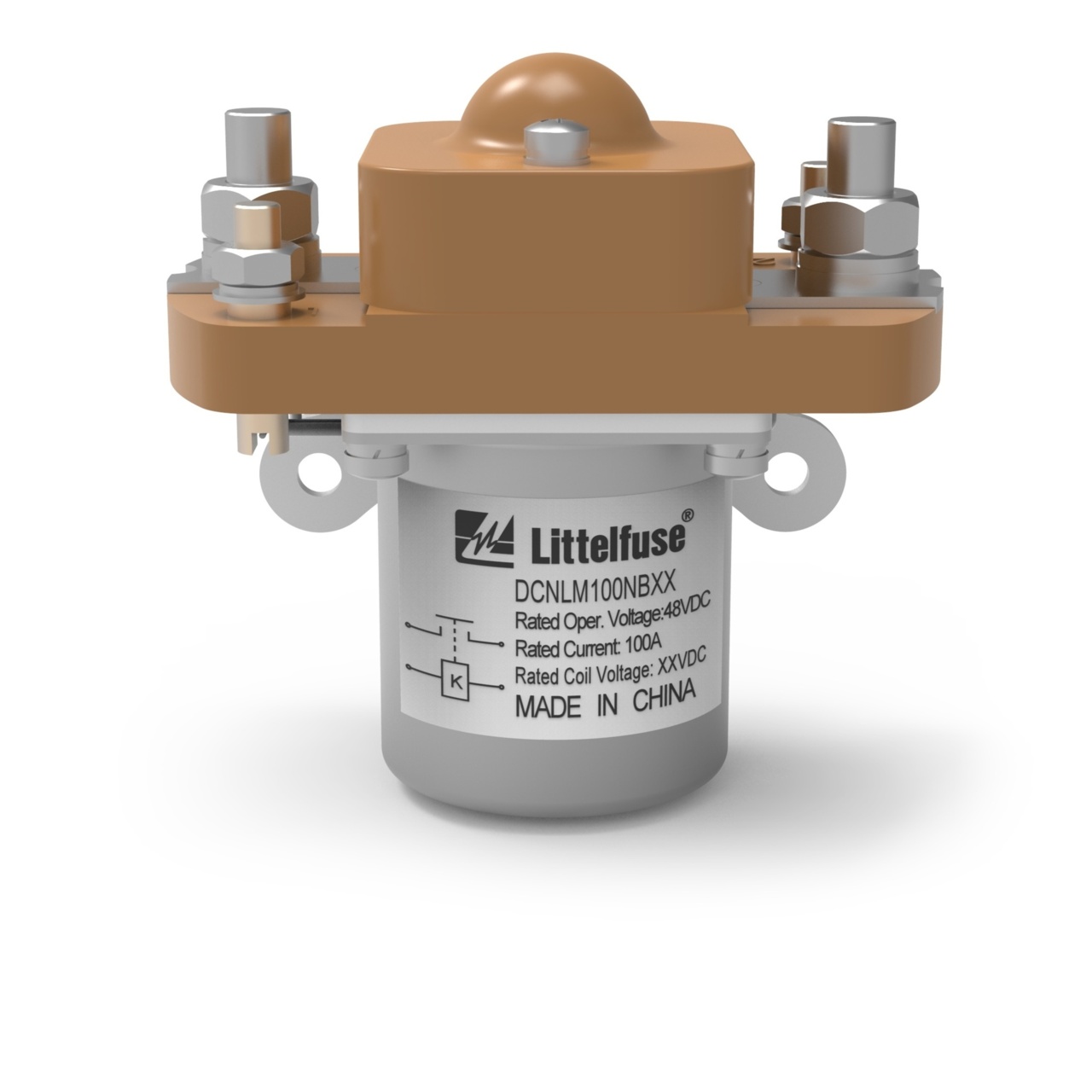

DCNLM 100A 48V NP 24Vcoil | Series: DCNLMThe DCNLM Series 60V High-Current DC Contactor Relay features 100A contact switching capability with a 24V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS).
This configuration of the DCNLM normally open, high-current DC contactor (DCNLM100NB24) features 60V non-polarized main contacts and a single-coil design.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 100 |
Current Rating (inrush) in Amps | 400 |
Maximum DC Voltage (V) | 60 |
Circuitry | SPST NO |
Ingress Protection | IP40 |
Input Terminals | Bolt : M6 |
Output Terminals | M6 Bolt |
Contacts | Silver alloy contact |
Normal Position | Normally Open |
Hardware | M5 Stainless Steel Bolt |
Housing | Grey Glass-Filled Plastic |
Mounting Method | SIDE MOUNT |
Recommended Torque | 1.7~2.5N.m |
Agency Approval - Shock | DCNLM50NB DVP 50G, 6ms |
Agency Approval - Vibration | 1~50Hz (freq.1~10Hz, amp;.25/f²; freq.10~50Hz, ampl.250/f²) |
Temperature Maximum (°C) | 70 |
Temperature Minimum (°C) | -40 |
Temperature Maximum (°F) | 158 |
Temperature Minimum (°F) | -40 |
Coil Type | Single |
Aux Contacts | No |
Connector | Wires |
Polarized | No |
Coil Voltage | 24 |
- 100A continuous current rating for high-current contact switching
- 24V coil rating
- Single-coil relay design
