DCNLM100NB48-01

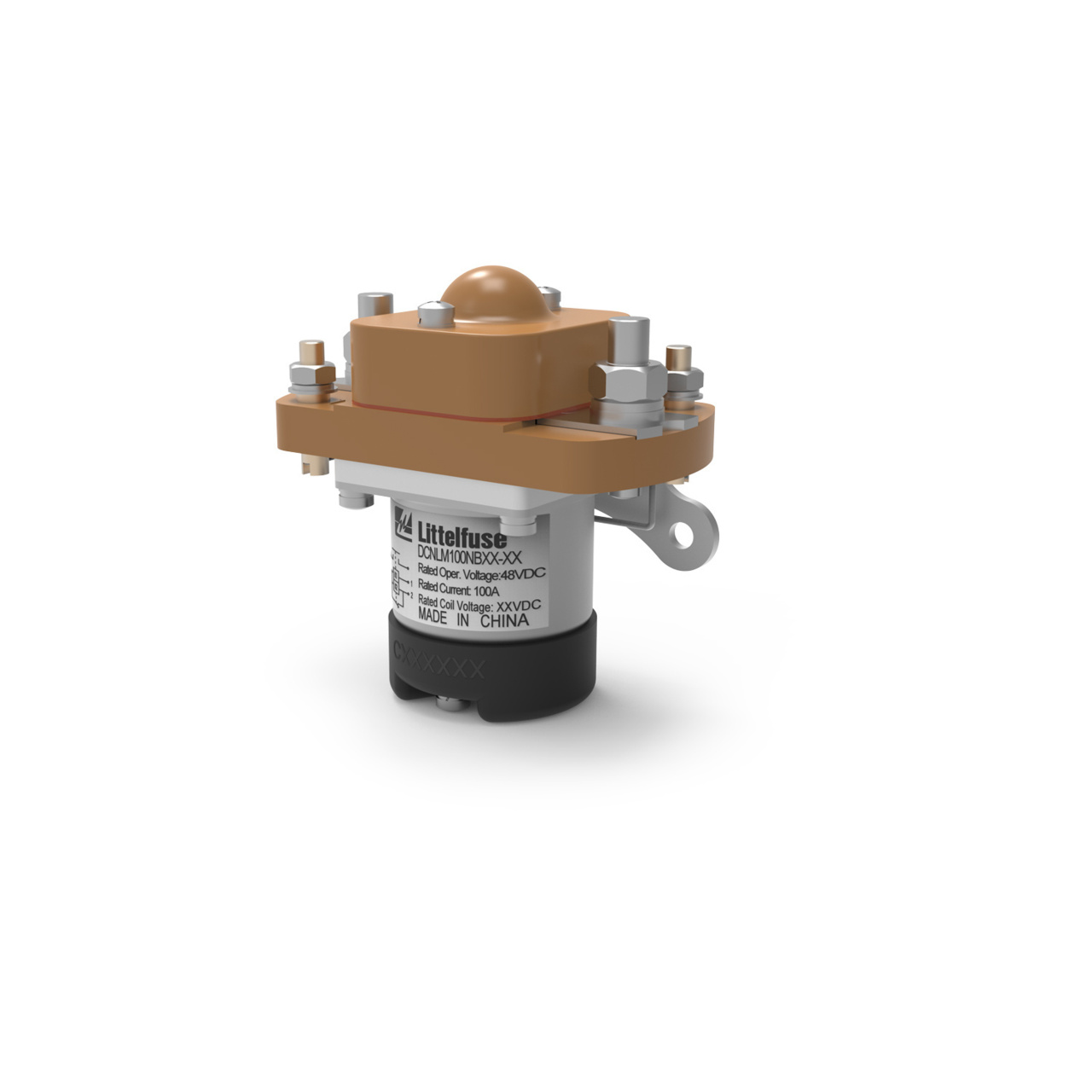

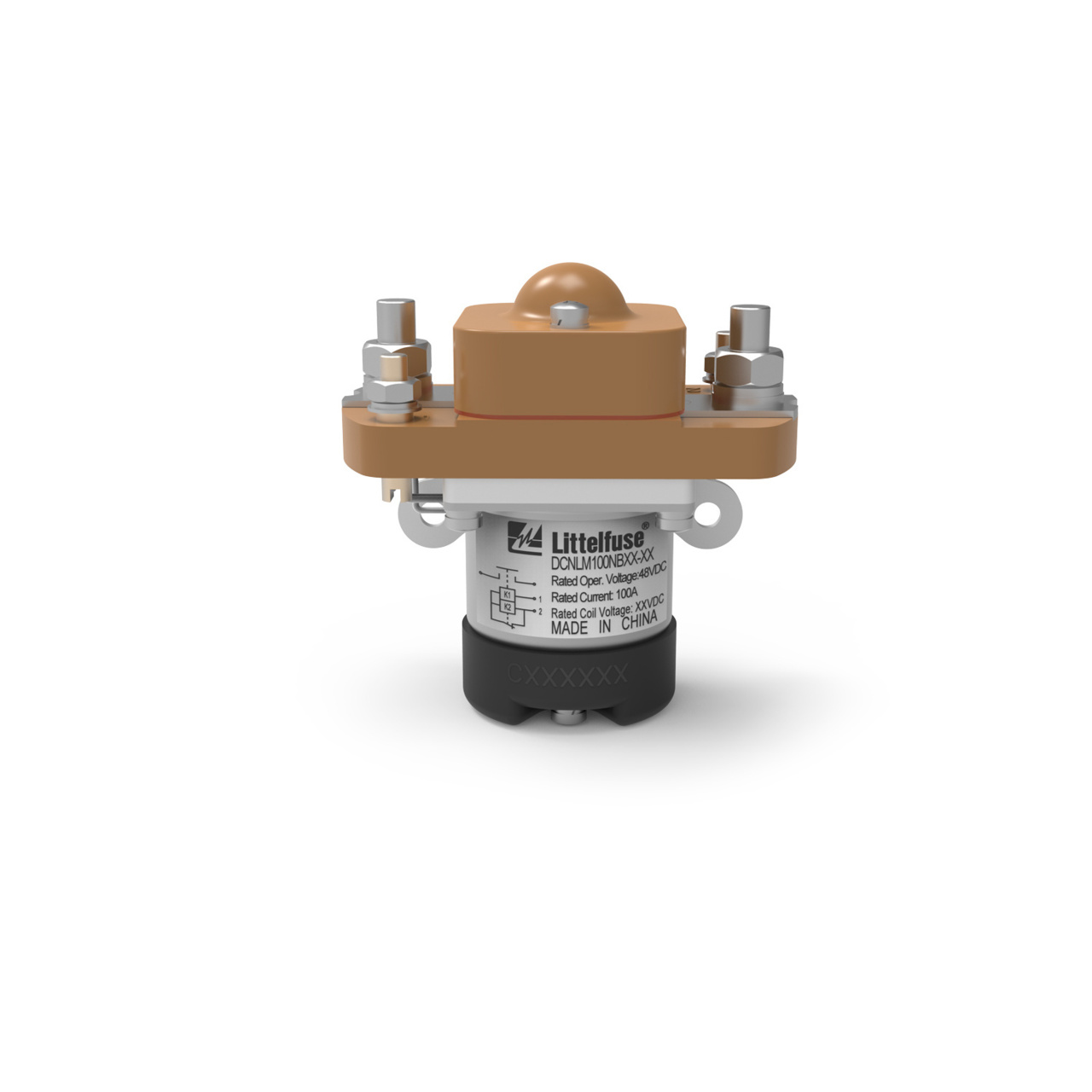

DCNLM 100A 48V NP 48Vcoil DC | Series: DCNLMThe DCNLM Series 60V High-Current DC Contactor Relay features 100A contact switching capability with a 48V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS).
This configuration of the DCNLM normally open, high-current DC contactor (DCNLM100NB48-01) features 60V non-polarized main contacts and a dual-coil design.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 100 |
Current Rating (inrush) in Amps | 400A 5ms |
Maximum DC Voltage (V) | 60 |
Circuitry | SPST NO |
Ingress Protection | IP4X |
Input Terminals | M6 Bolt |
Output Terminals | M6 Bolt |
Contacts | Silver alloy contact |
Normal Position | Normally Open |
Hardware | Two Steel M6 Nuts |
Housing | Metal |
Mounting Method | SIDE MOUNT |
Recommended Torque | 4-6 N.M |
Agency Approval - Shock | DCNLM50NB DVP 50G, 6ms |
Agency Approval - Vibration | 1~500Hz, About 1G, 8h/axis |
Temperature Maximum (°C) | 70 |
Temperature Minimum (°C) | -40 |
Temperature Maximum (°F) | 158 |
Temperature Minimum (°F) | -40 |
Aux Contacts | No |
Coil Type | Dual |
Agency Approval - Humidity | 20%~90% RH |
Polarized | No |
Coil Voltage | 48 |
- 100 A continuous current rating for high-current contact switching
- 48 V coil rating
- Dual-coil relay design
