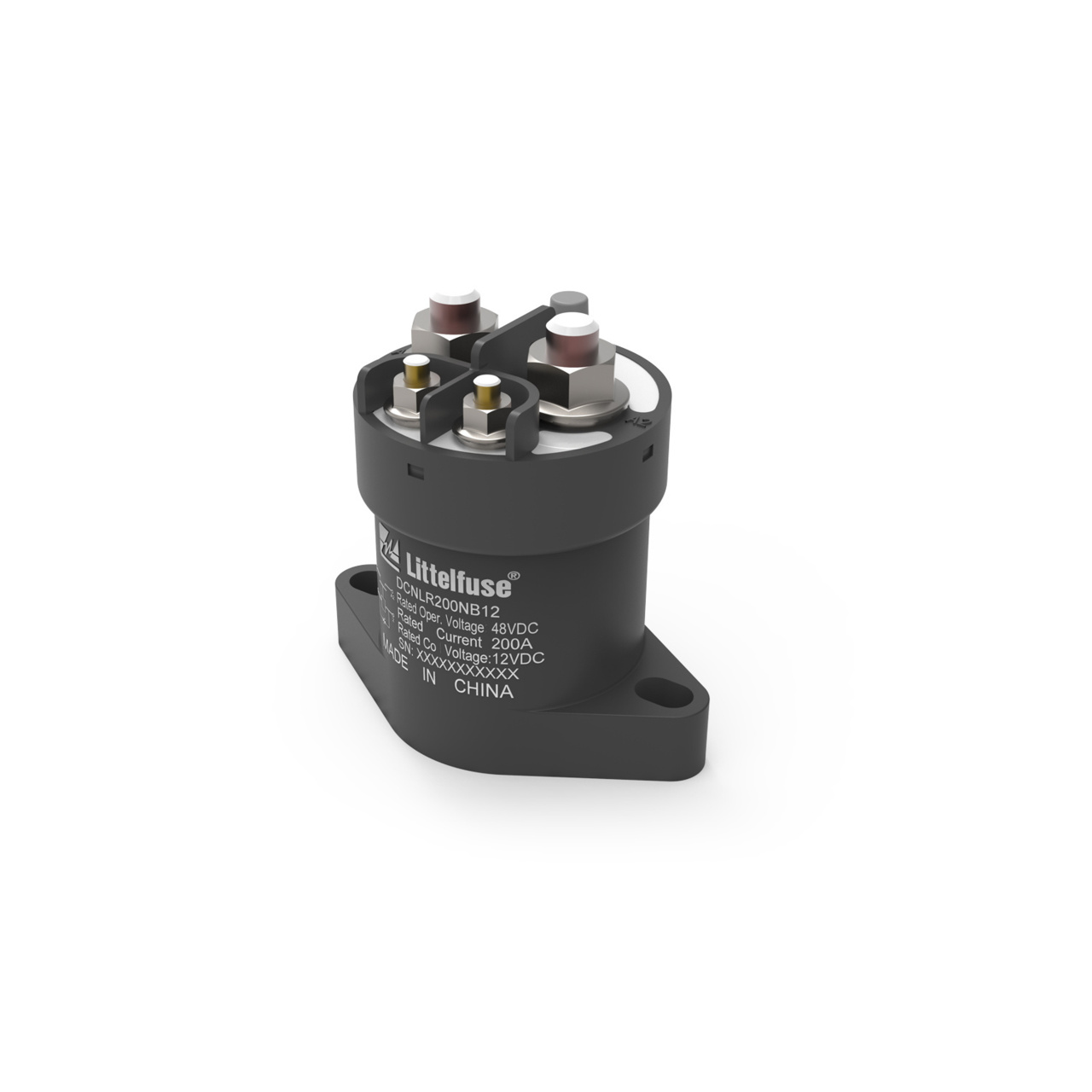

DCNLR200NB12
DCNLR 200A 48V NP 12Vcoil | Series: DCNLRIdeal for safely disconnecting DC energy sources in applications that require continuous run time, the DCNLR Series 60V DC Max 200A Contactor Relay with a 12V Coil features thermoplastic housing and an IP67 rating for protection against water and dust common in harsh environmental conditions.
The remote-operated contactor has a space-saving design and can be easily installed in any orientation, making it simple to incorporate into battery electric vehicles (BEV), hybrid electric vehicles (HEV), material handling equipment, telecom power supplies, battery energy storage systems, construction machinery, heavy-duty trucks, buses, and more.
This model of the DCNLR Series contactor (DCNLR200NB12) has a 200A continuous current rating and a 12V coil.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 200 |
Current Rating (inrush) in Amps | 800A 5ms |
Voltage Rating (V) | 60 |
Circuitry | SPST NO |
Ingress Protection | IP67 |
Input Terminals | M8 Bolt |
Output Terminals | M8 Bolt |
Contacts | Copper alloy with silver surface |
Normal Position | Normally Open |
Hardware | Two Copper M8 bolts |
Housing | Nylon 66 |
Mounting Method | BOTTOM MOUNT |
Recommended Torque | 8-12N.m |
Agency Approval - Shock | Mechanical shock 50g 6ms |
Agency Approval - Vibration | Random vibration 10Hz~2000Hz r.m.s.acceleration value=57.9m/s² |
Temperature Maximum (°C) | 85 |
Temperature Minimum (°C) | -40 |
Temperature Maximum (°F) | 185 |
Temperature Minimum (°F) | -40 |
Aux Contacts | No |
Coil Type | Single |
Agency Approval - Humidity | 20%~90% RH |
Polarized | No |
Coil Voltage | 12 |
- 48 V dc nominal and 60 V dc max voltage rating
- 200 A continuous current rating
- 800 A inrush current rating
- 12 V coil
- Contact voltage drop is ≤80 mV @200A
