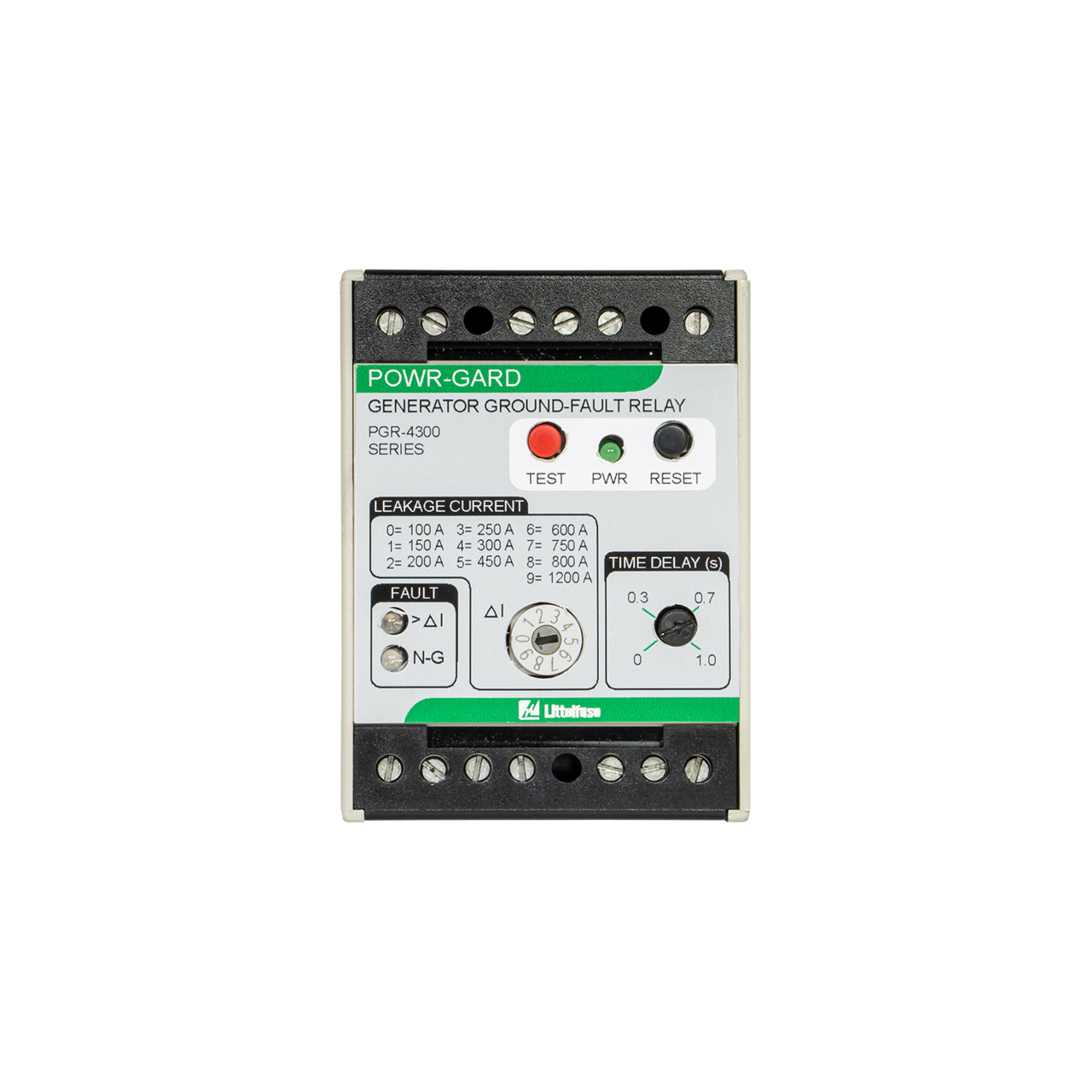

Littelfuse-pgr-4300-24-front

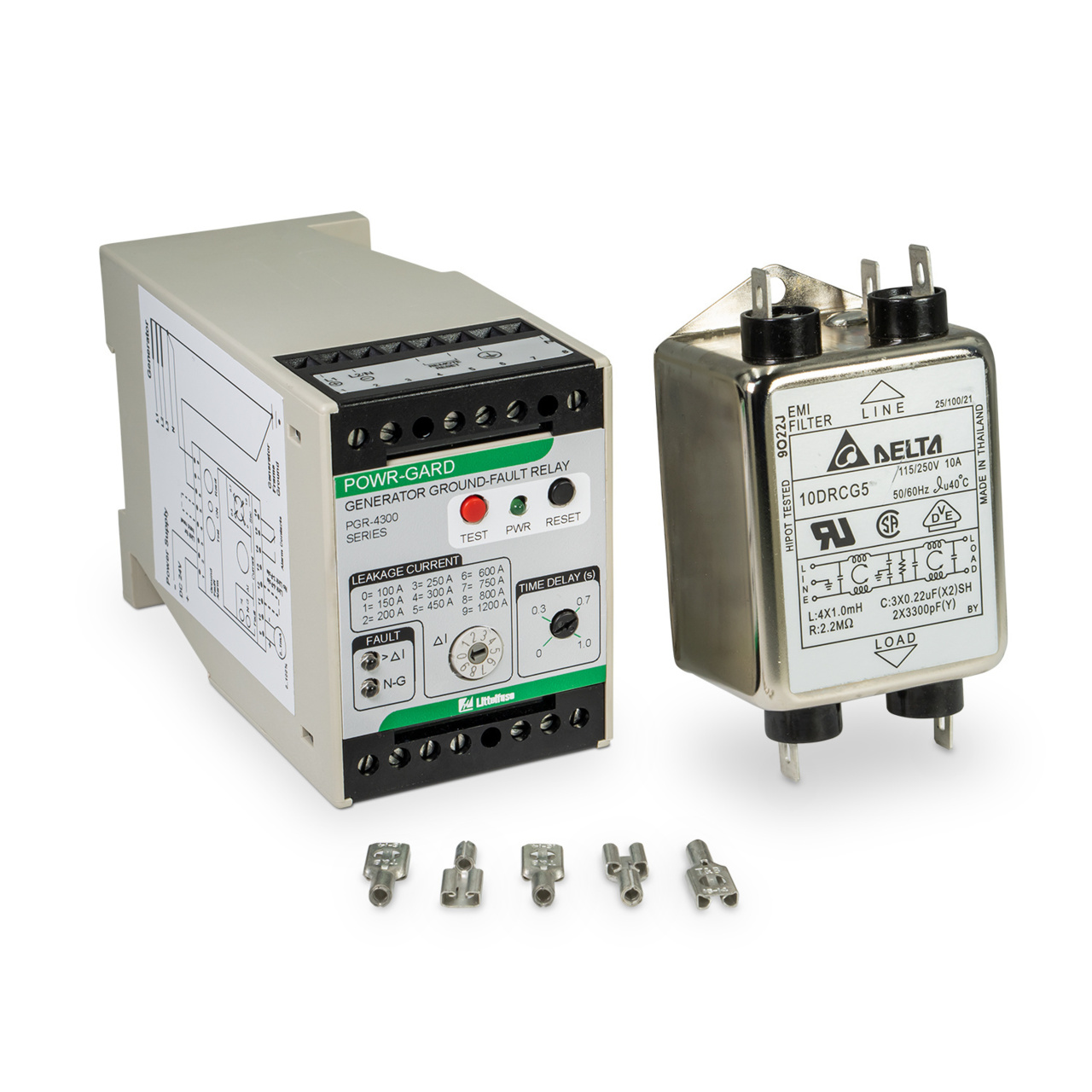

Littelfuse-pgr-4300-24-front-parts

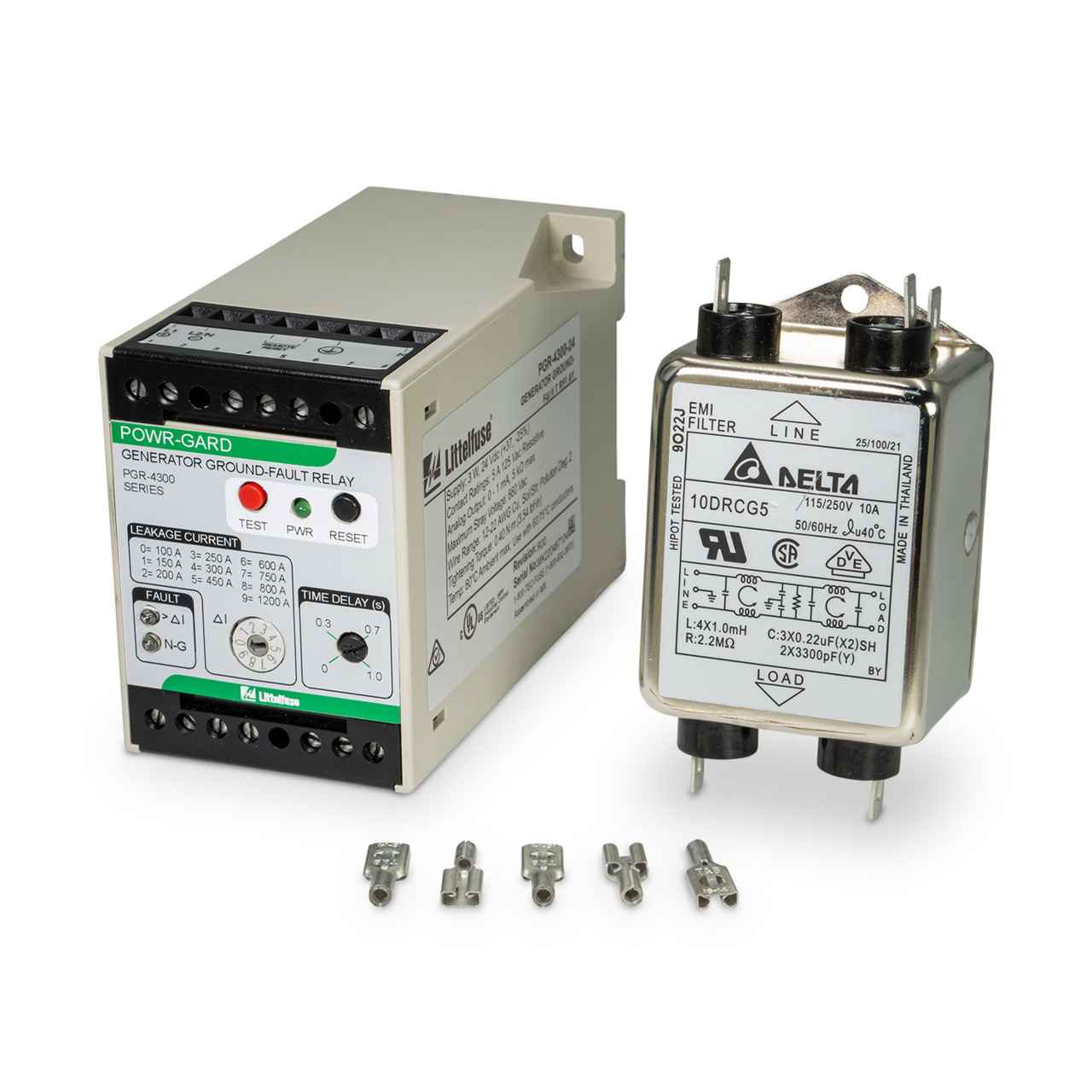

Littelfuse-pgr-4300-24-front-al-parts

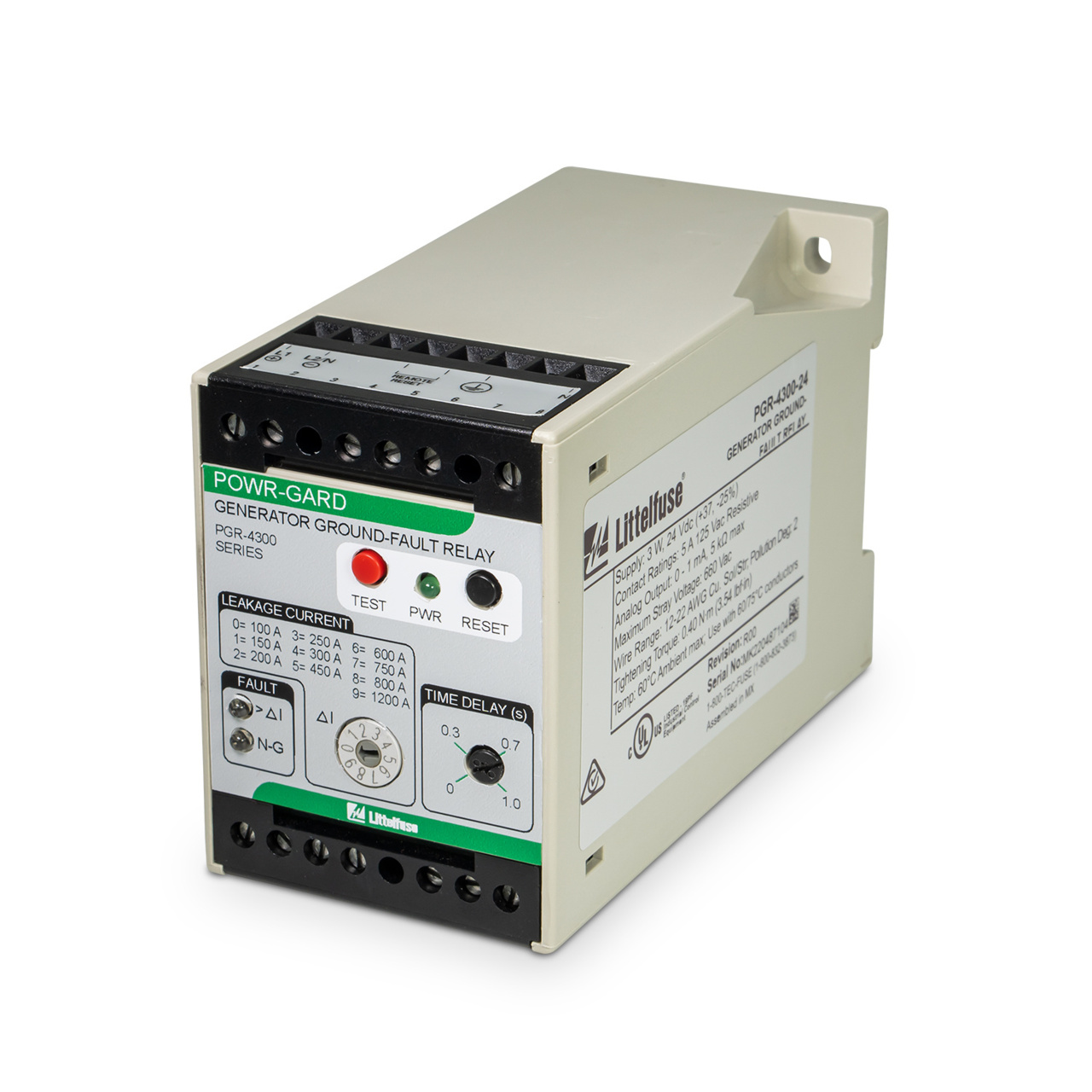

Littelfuse-pgr-4300-24-ar
Littelfuse-pgr-4300-24-al
Littelfuse-pgr-4300-24-so-front

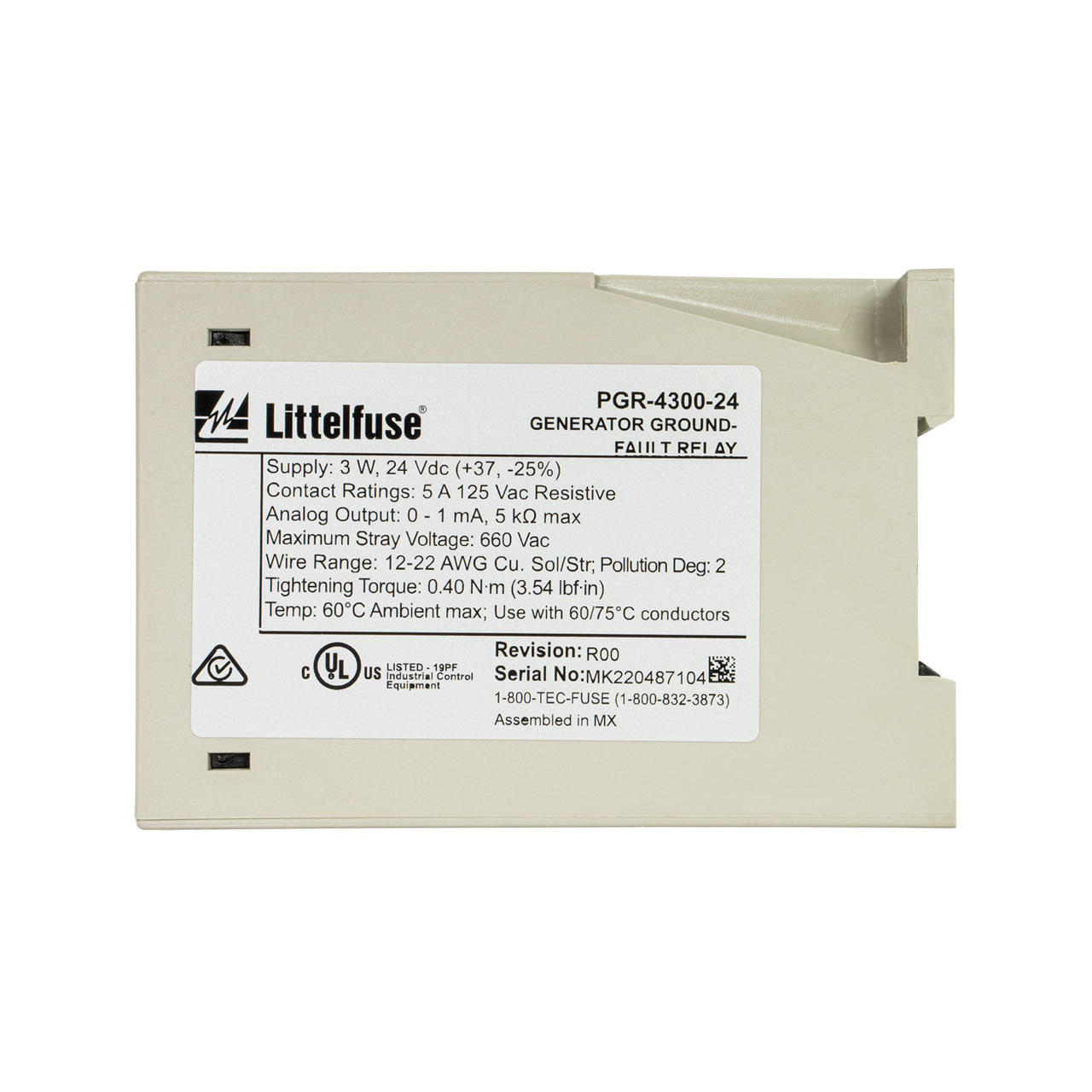

Littelfuse-pgr-4300-24-so-side-1
Littelfuse-pgr-4300-24-front-ar-parts
Littelfuse-pgr-4300-24-so-side-2
Littelfuse-pgr-4300-24-so-bottom

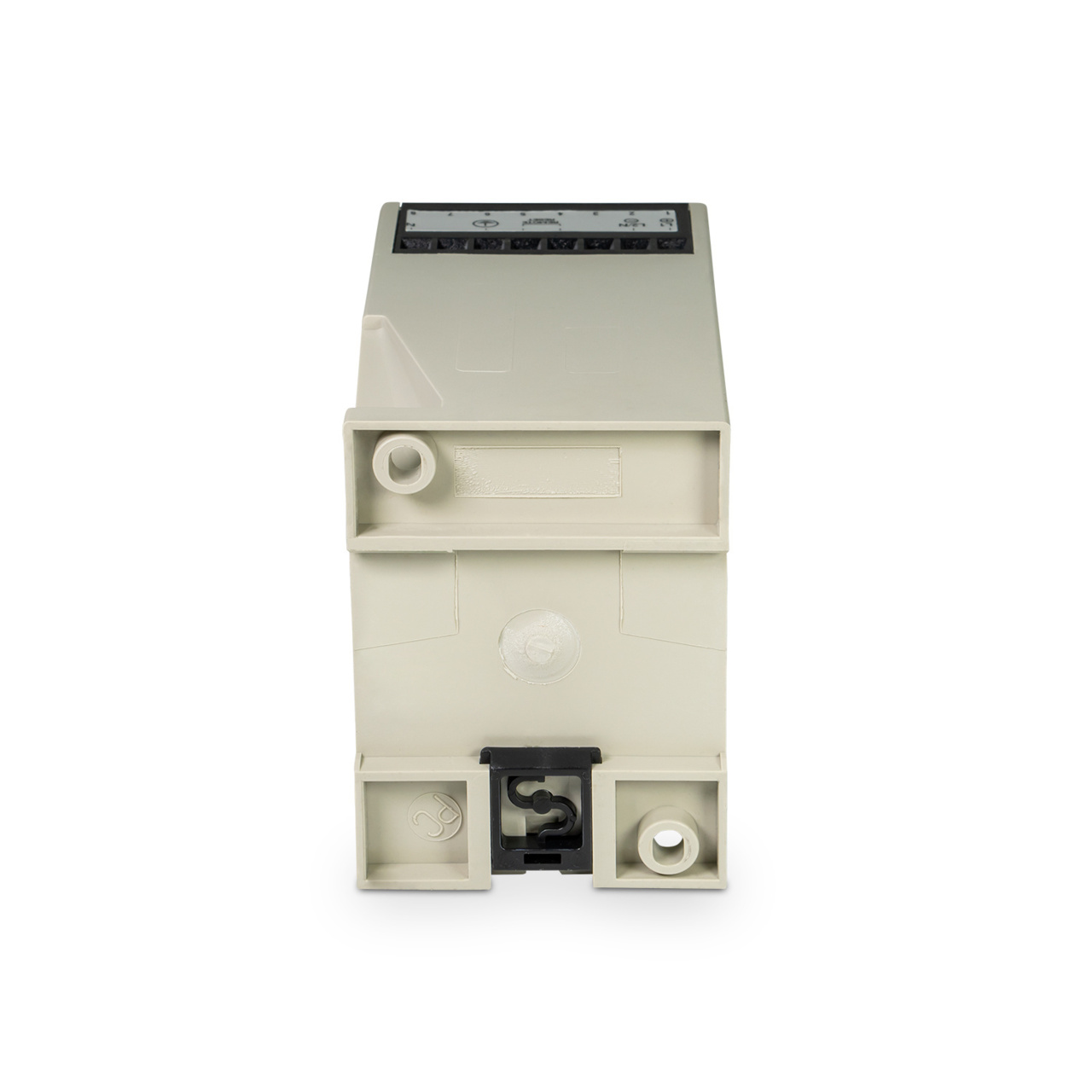

Littelfuse-pgr-4300-24-so-back

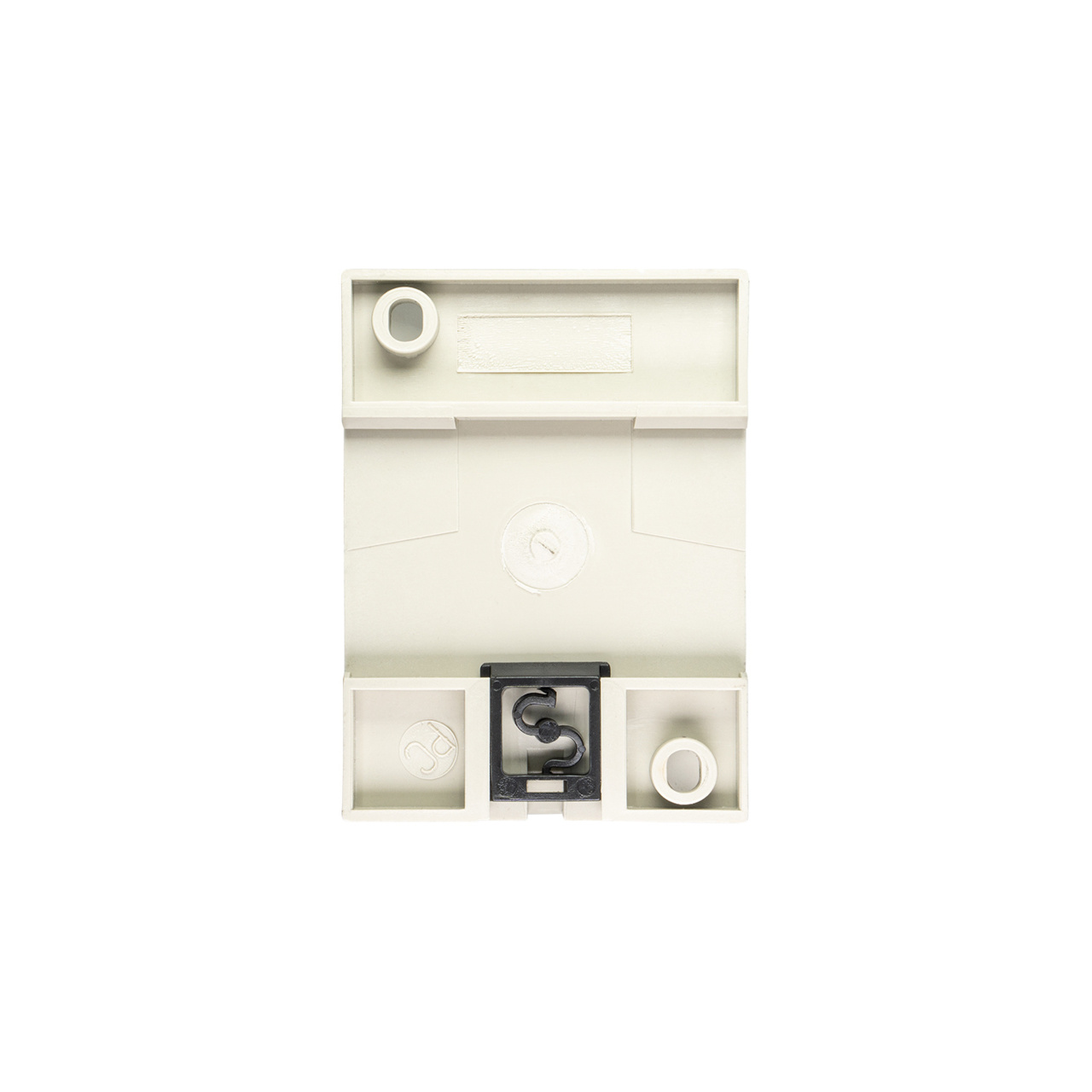

Littelfuse-pgr-4300-24-back

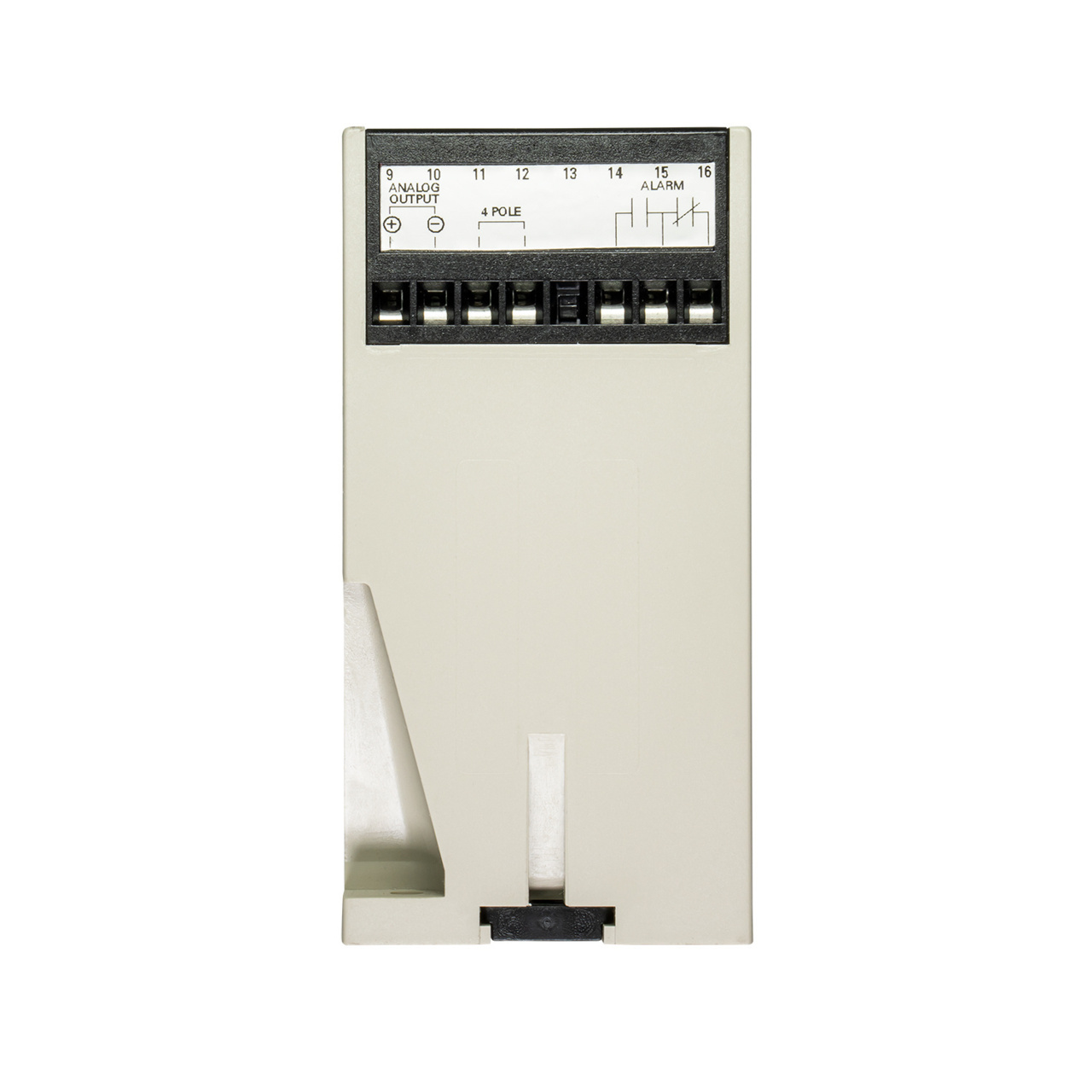

Littelfuse-pgr-4300-24-so-top

PGR-4300-24

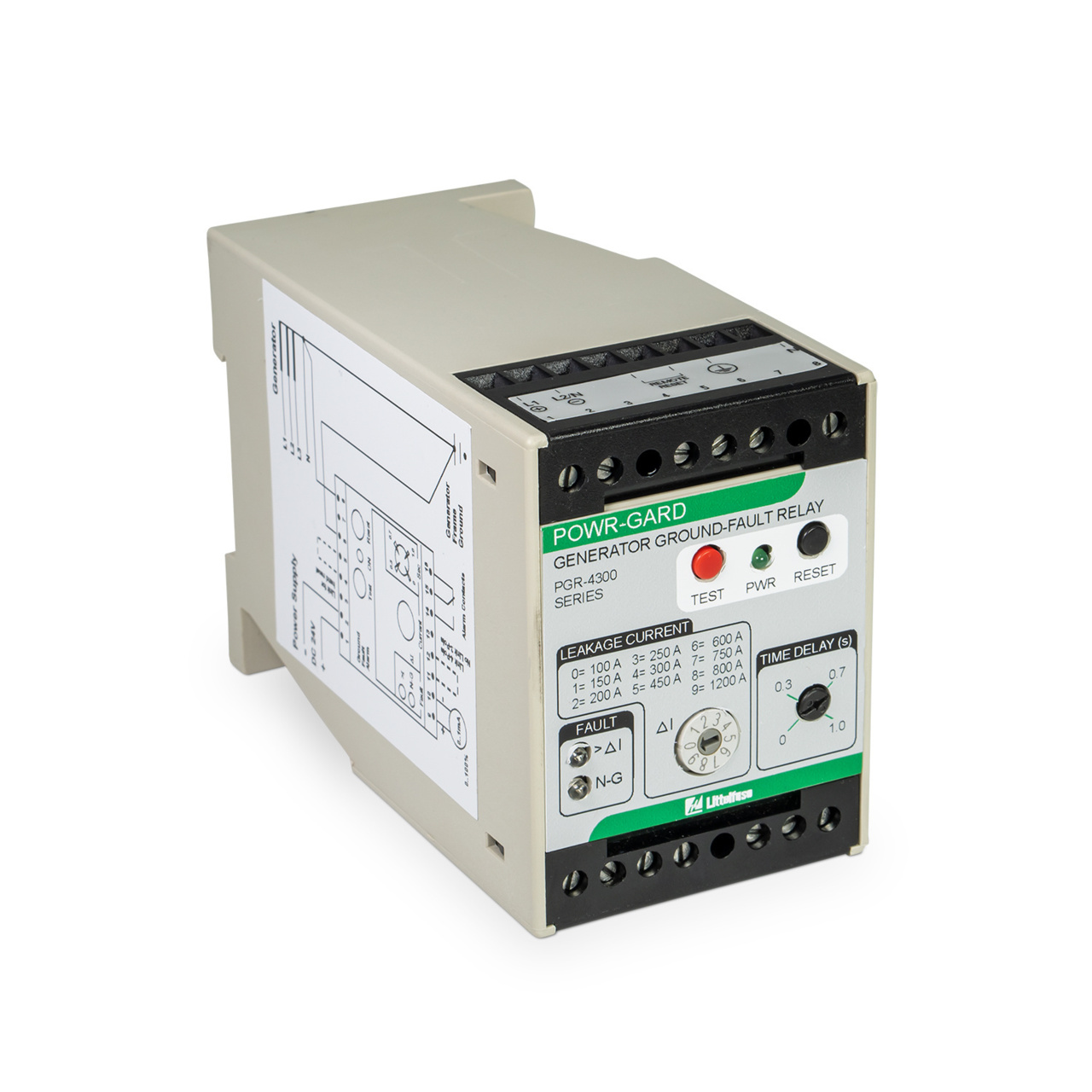

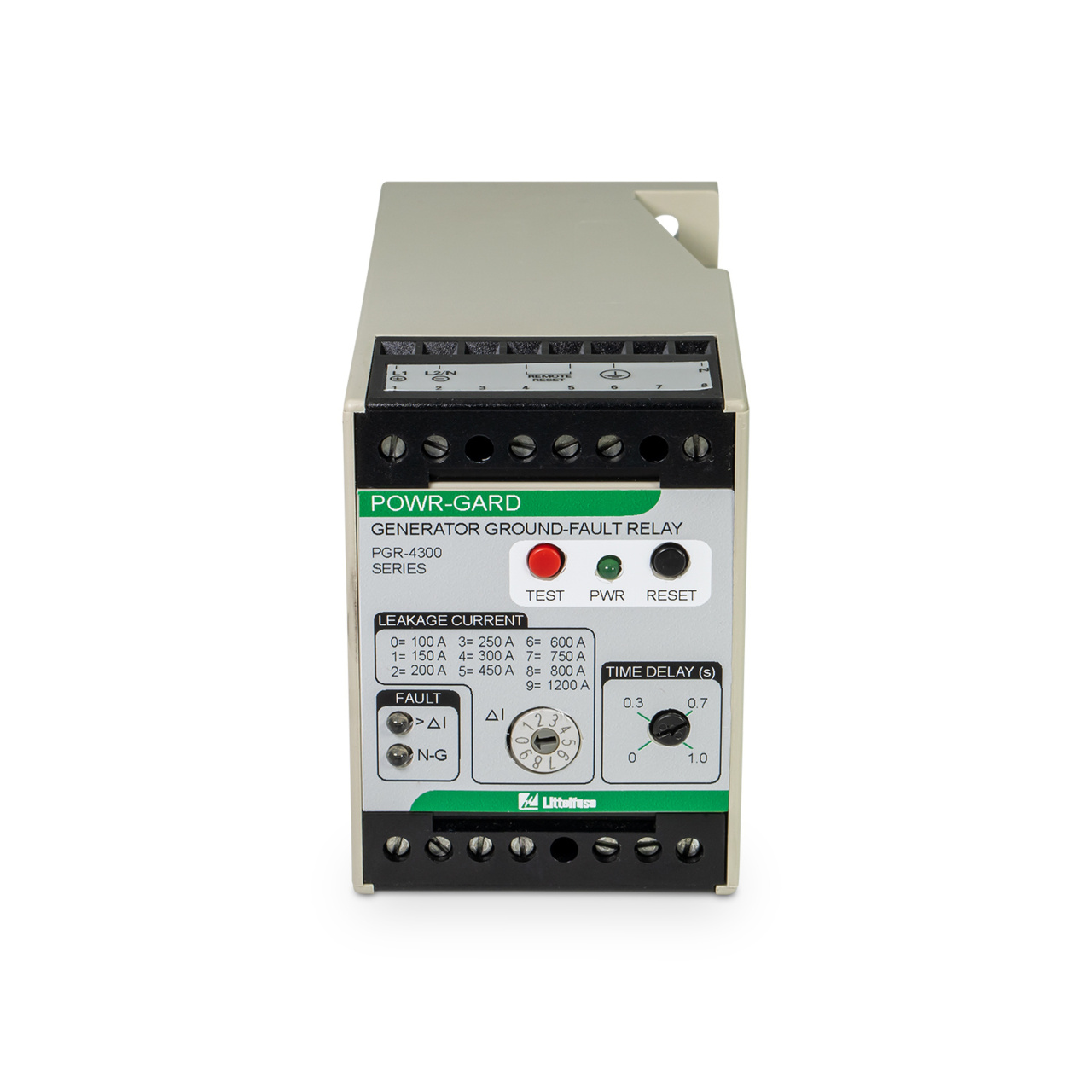

GENERATOR GROUND FAULT RELAY-24VDCSUPPLY | Series: PGR-4300
info

PGR-4300-24 is a generator ground-fault relay with a supply voltage dc of 24.

PropertyValue
Supply Voltage DC
24
Relay Contacts Config
1 Form C (N.O./N.C.)
Analog Output Current (mA)
0 - 1
IEEE Device Numbers
50G - 50N - 51G - 51N
Relay Contacts Operation
Non Fail-safe
Weight (kg)
0 Kg (kilogram)
Auto Manual Reset
Latching; Autoreset
Conformally Coated
Optional
GF Trip Level A
100 - 1200
GF Trip Time (s)
0.0 - 1.0
Reset Type
Front-panel switch
System Type
Solidly Grounded AC
Test Button
Front-panel switch
