231-INSIDER-P

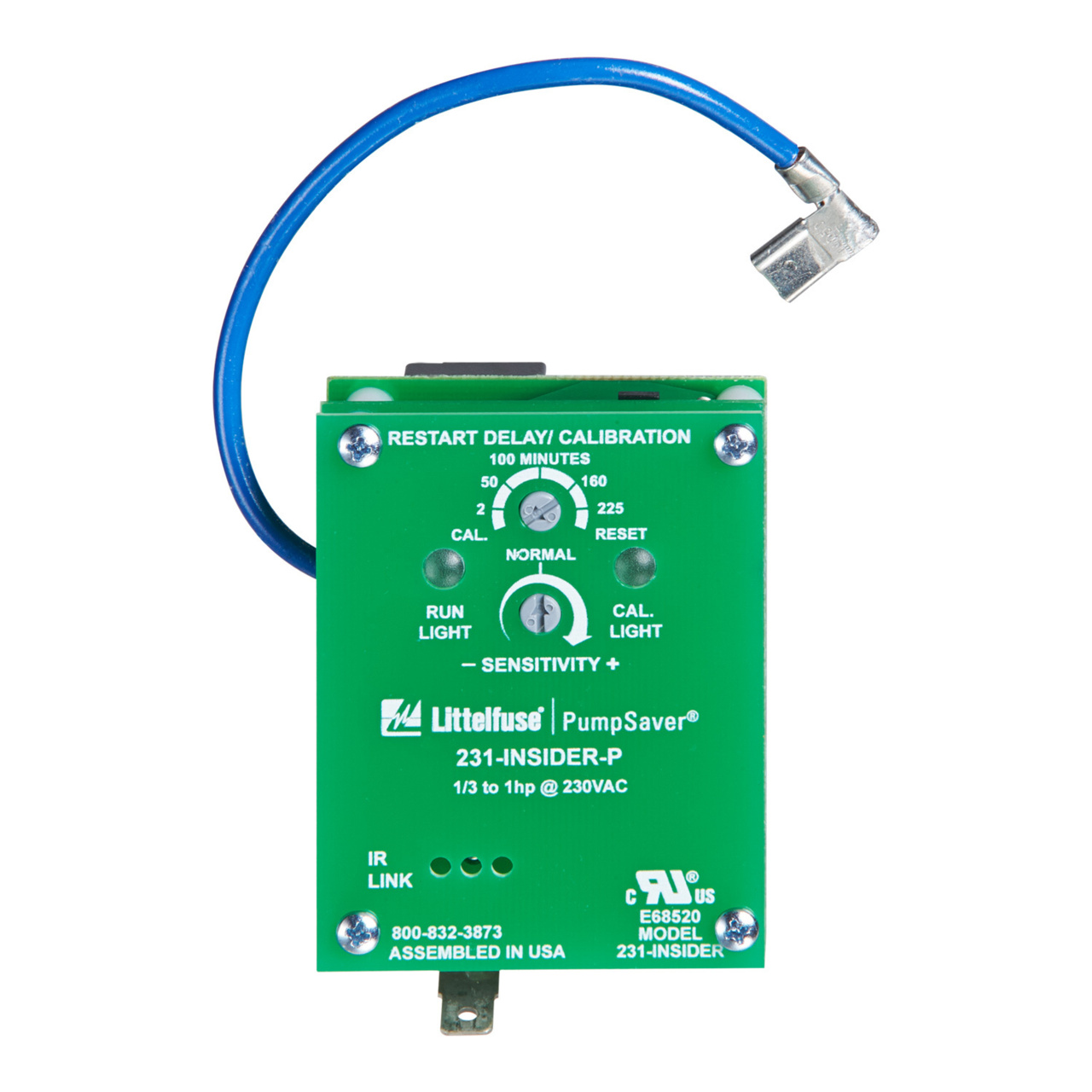

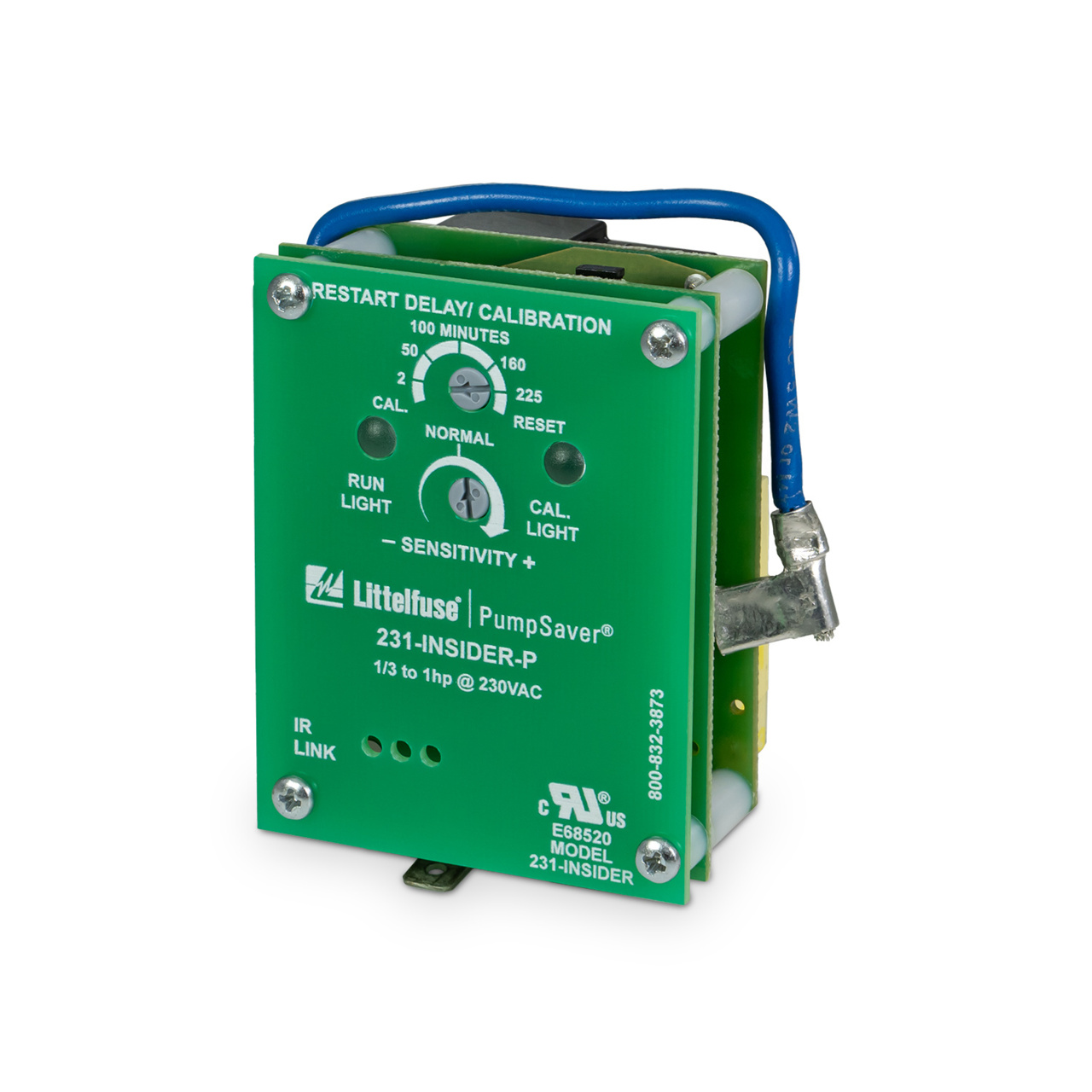

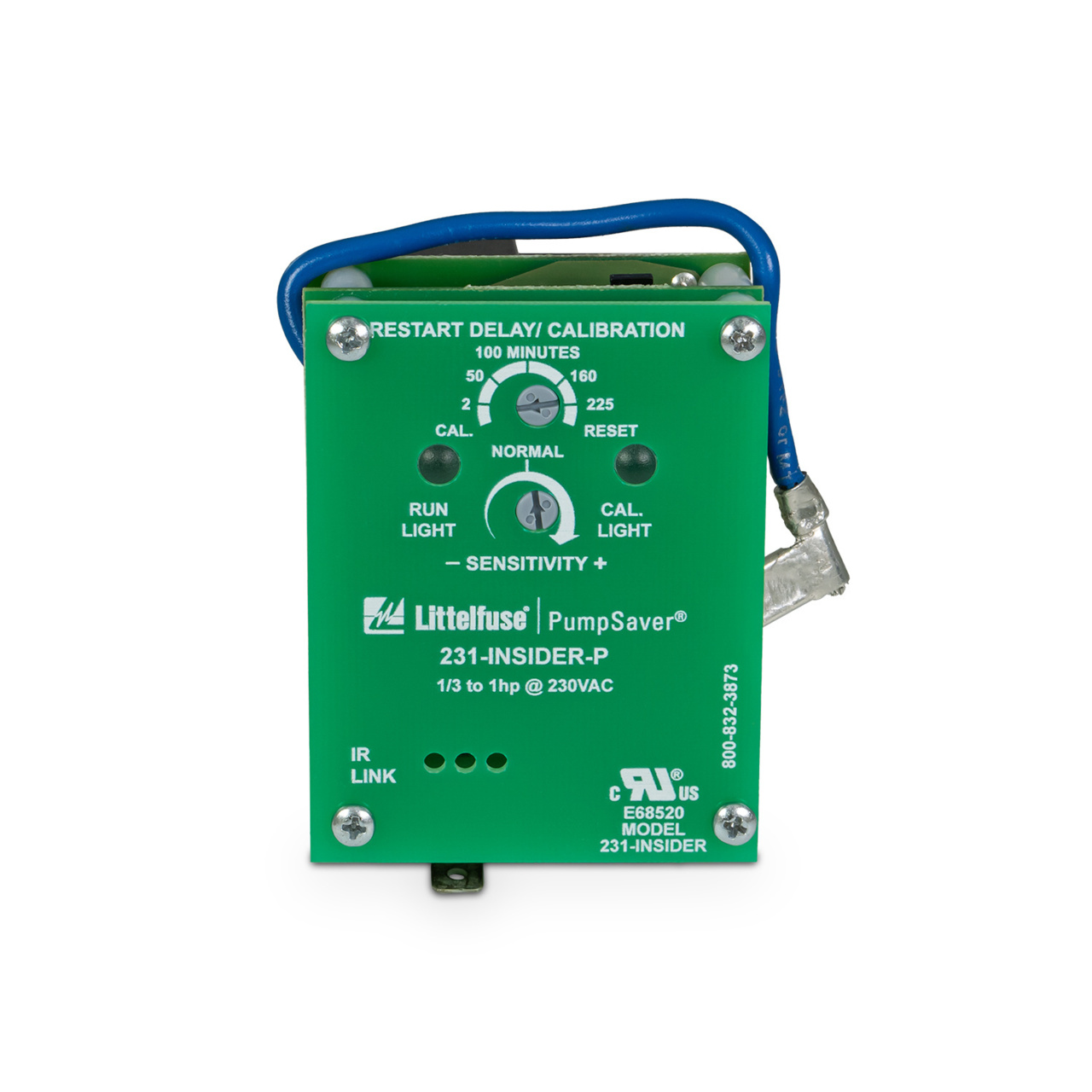

1-PHASE PUMPSAVERPLUS/230V/ FO | Series: 231-Insider-P
The 231-Insider-P provides single-phase protection for submersible pumps with an input voltage of 230 V ac and input load range from ⅓–1 hp. Its output load rating is 1 hp @ 240 V ac (17 A maximum).
| Property | Value |
|---|---|
Input Voltage (V) | 230 Vac |
Input Load Range (hp) | 1/3 - 1 |
Output Form | SPST |
Weight (kg) | 0 Kg (kilogram) |
Overcurrent Trip Class | 125% of calibration point |
Input AC Line Frequency (Hz) | 50 / 60 (50 will increase all delay timers by 20%) |
Maximum Input Power (W) | 5 |
Output Load Rating (VA) | 1 hp @ 240 Vac (17 A max.) |
Overvoltage Trip Voltage (%) | 265 Vac |
Rapid Cycle Timer (s) | 4 restarts allowed in 60 s period |
Restart Delay Range | Over/Under Voltage: 2 s; All other faults: Manual; 2 - 225 m |
Trip Delay Range | Overcurrent: 5 s; Dry-well: 4 s |
Underload (%) | Adjustable (70 to 90% of calibrated run power) |
Undervoltage Reset Voltage (%) | 190 Vac |
Mounting Method | Inside a Franklin™; Pente®; or CentriPro™ control box |
Operating Temperature Max (°C) | 55 |
Operating Temperature Maximum Fahrenheit | 131 |
Operating Temperature Minimum Celsius | -40 |
Operating Temperature Minimum Fahrenheit | -40 |
