234-P

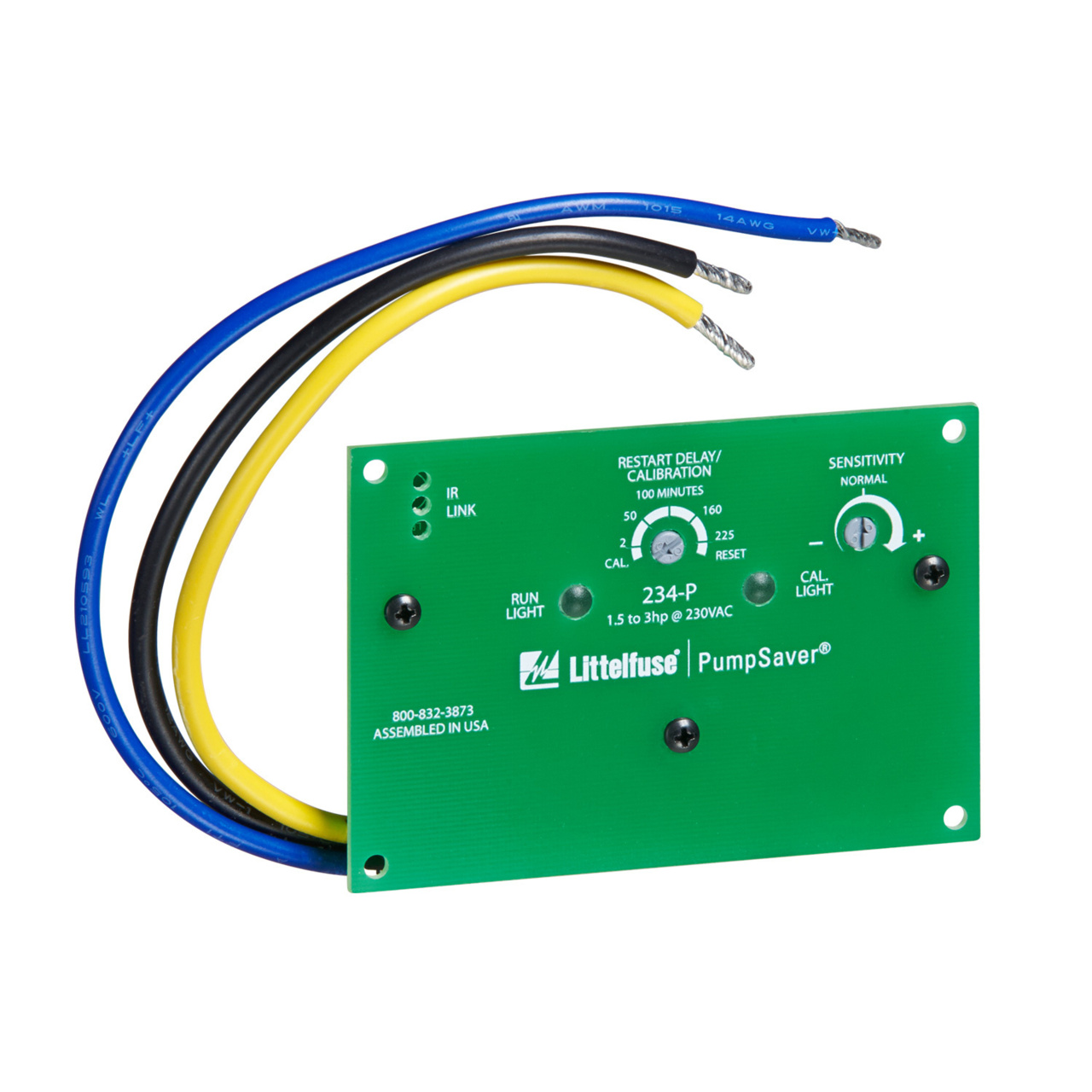

1-PHASE PUMPSAVERPLUS/230V/1HP | Series: 234-P
The PumpSaver® Plus Model 234-P protects single-phase pumps with an input voltage value of 230 V ac, an input load range of ⅓–3 hp, and an output load rating of 3 hp @ 240 V ac (17 A maximum).
| Property | Value |
|---|---|
Input Voltage (V) | 230 Vac |
Input Load Range (hp) | 1/3 - 3 |
Output Form | SPST |
Weight (kg) | 0 Kg (kilogram) |
Overcurrent Trip Class | 125% of calibration point |
Input AC Line Frequency (Hz) | 50 / 60 (50 will increase all delay timers by 20%) |
Output Load Rating (VA) | 3 hp @ 240 Vac (17 A max.) |
Overvoltage Trip Voltage (%) | 265 Vac |
Power Consumption | ≤5 W |
Rapid Cycle Timer (s) | 4 restarts allowed in 60 s period |
Restart Delay Range | Over/Under Voltage: 2 s; All other faults: Manual; 2 - 225 m |
Trip Delay Range | Overcurrent: 5 s; Dry-well: 4 s |
Underload (%) | Adjustable (70 to 90% of calibrated run power) |
Undervoltage Reset Voltage (%) | 190 Vac |
Mounting Method | Inside a Grundfos® control box |
Operating Temperature Max (°C) | 70 |
Operating Temperature Maximum Fahrenheit | 158 |
Operating Temperature Min (°C) | -40 |
Operating Temperature Minimum Fahrenheit | -40 |
