SB4030-521-00

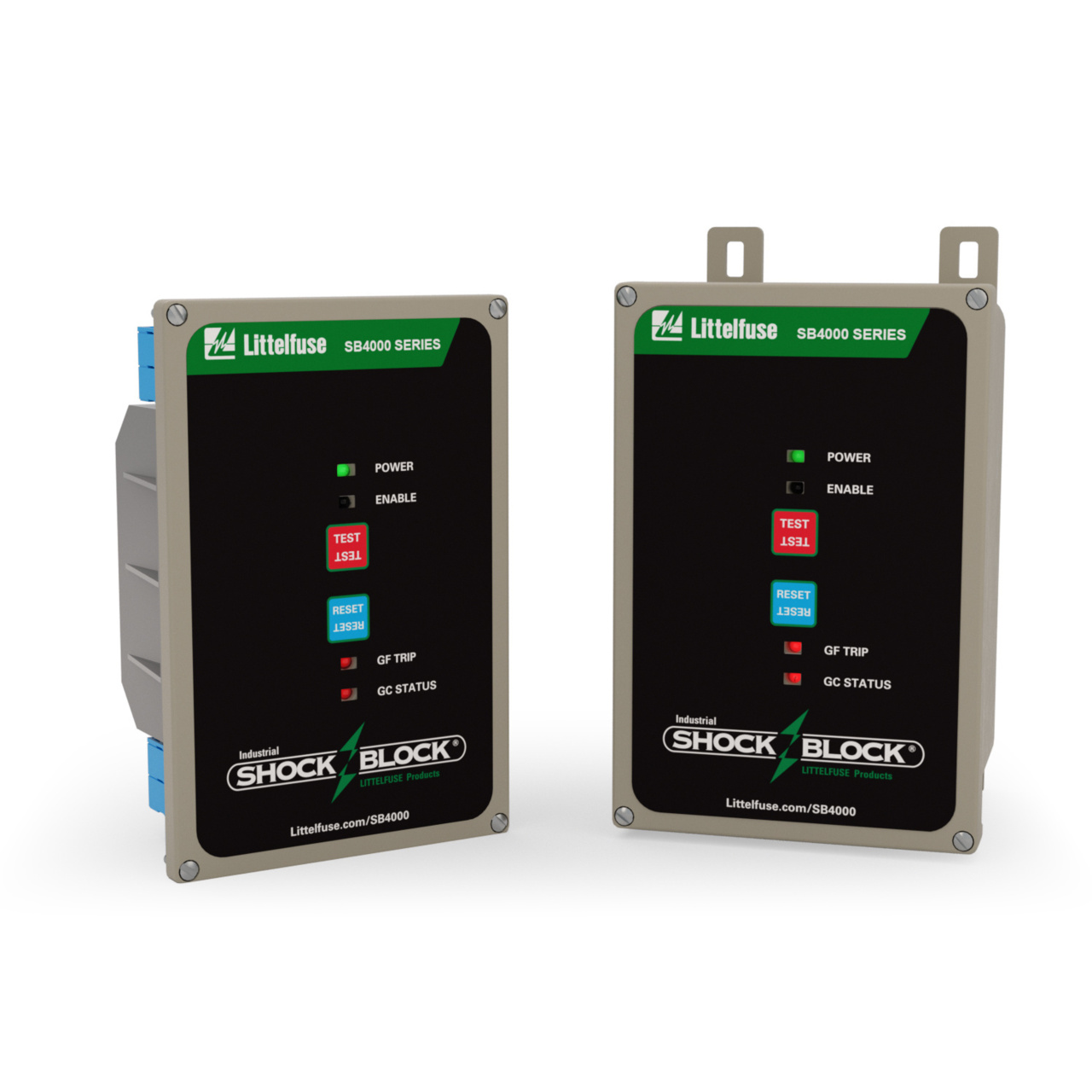

SHOCK BLOCK CLASS A GFCI 208-240V 30A | Series: SB4000
Ratings and Models
The Industrial Shock Block® SB4000 series is available for use in single-phase, split-phase, three-phase and 4-wire systems from 208 -240 V on 30 A branch circuits. The power system can be either solidly or high-resistance grounded.
All SB4000 models equipped with connections for a neutral wire have built-in grounded-neutral protection per the UL 943 standard. The standard enclosure is IP 69K/NEMA 4X and outdoor rated, suitable for all industrial environments including high temperature wash down used in food production applications. The SB4000 includes advanced harmonic filtering, an automatic self-test feature, and is compliant to the UL 1998 Software in Programmable Components standard. Ground-Fault Circuit Interrupter (GFCI), Class A The SB4000 is available as a 208 - 240 V Class A GFCI, allowing new construction or retro-fit projects to meet NEC 210.8 for a wide variety of single-phase, split-phase, three-phase and 4-wire (neutral supported) loads on 30 A circuits.
All SB4000 models equipped with connections for a neutral wire have built-in grounded-neutral protection per the UL 943 standard. The standard enclosure is IP 69K/NEMA 4X and outdoor rated, suitable for all industrial environments including high temperature wash down used in food production applications. The SB4000 includes advanced harmonic filtering, an automatic self-test feature, and is compliant to the UL 1998 Software in Programmable Components standard. Ground-Fault Circuit Interrupter (GFCI), Class A The SB4000 is available as a 208 - 240 V Class A GFCI, allowing new construction or retro-fit projects to meet NEC 210.8 for a wide variety of single-phase, split-phase, three-phase and 4-wire (neutral supported) loads on 30 A circuits.
| Property | Value |
|---|---|
Voltage Rating (V) | 240 |
Current Rating (A) | For use on 30 A branch circuits. Maximum continuous FLA of 26 A |
System Type | Three-phase, 3-wire, 60 Hz; Three-phase, 4-wire, 60 Hz; Split-phase, 3-wire, 60 Hz; Single-phase, 2-wire, 60 Hz |
Trip Level Settings | Fixed at 6 mA (Class A models) |
Trip Time Setting | Inverse time curve according to UL 943 |
Operating Temperature Range (°C) | -35 °C (-31 °F) to 40 °C (104 °F), up to 66 °C (151 °F) with derating |
Dimensions | H 164.2 mm (6.47 in.); W 109.4 mm (4.31 in.); D 96.28 mm (3.79 in.) – with enclosure and mounting feet , H 164.2 mm (6.47 in.); W 109.4 mm (4.31 in.); D 72.7mm (2.86 in.) – without enclosure |
NEMA Rating | Polycarbonate: IP 69K and NEMA 4X (Outdoor), Polycarbonate |
Short-Circuit Current Rating | 10,000 A |
- UL 943 inverse time trip curve
- Advanced digital filtering algorithm
- No flying leads to take up precious wall space; knockouts can be placed whereyou want them, and the mounting feet are adjustable
- UL Listed GFCI personnel protection for industrial, commercial, and residentialloads on 30 A circuits
- Screwless terminal blocks make wiring fast and easy. Selectable manual resetor auto-reset for brownout, power-up, and ground monitor interruptions to fitany plant safety protocols with one part number
- Equipped with conformally coated circuit boards to protect against corrosionand moisture
- The SB4000 will continuously test itself and will trip if there is an internal failure
- Inverse time detection circuit protects people while also reducing the probabilityof nuisance tripping
- Eliminates nuisance trips due to harmonics
- No flying leads to take up precious wall space; knockouts can be placed whereyou want them, and the mounting feet are adjustable
- UL Listed GFCI personnel protection for industrial, commercial, and residentialloads on 30 A circuits
- Screwless terminal blocks make wiring fast and easy. Selectable manual resetor auto-reset for brownout, power-up, and ground monitor interruptions to fitany plant safety protocols with one part number
- Equipped with conformally coated circuit boards to protect against corrosionand moisture
- The SB4000 will continuously test itself and will trip if there is an internal failure
SB4030-521-00 Applications
- For applications where people,electrical equipment, and waterare present
- Agriculture
- Amusement parks
- Commercial kitchens
- Construction
- Food and beverage
- HVAC equipment
- Maintenance shops
- Manufacturing
- Marinas
