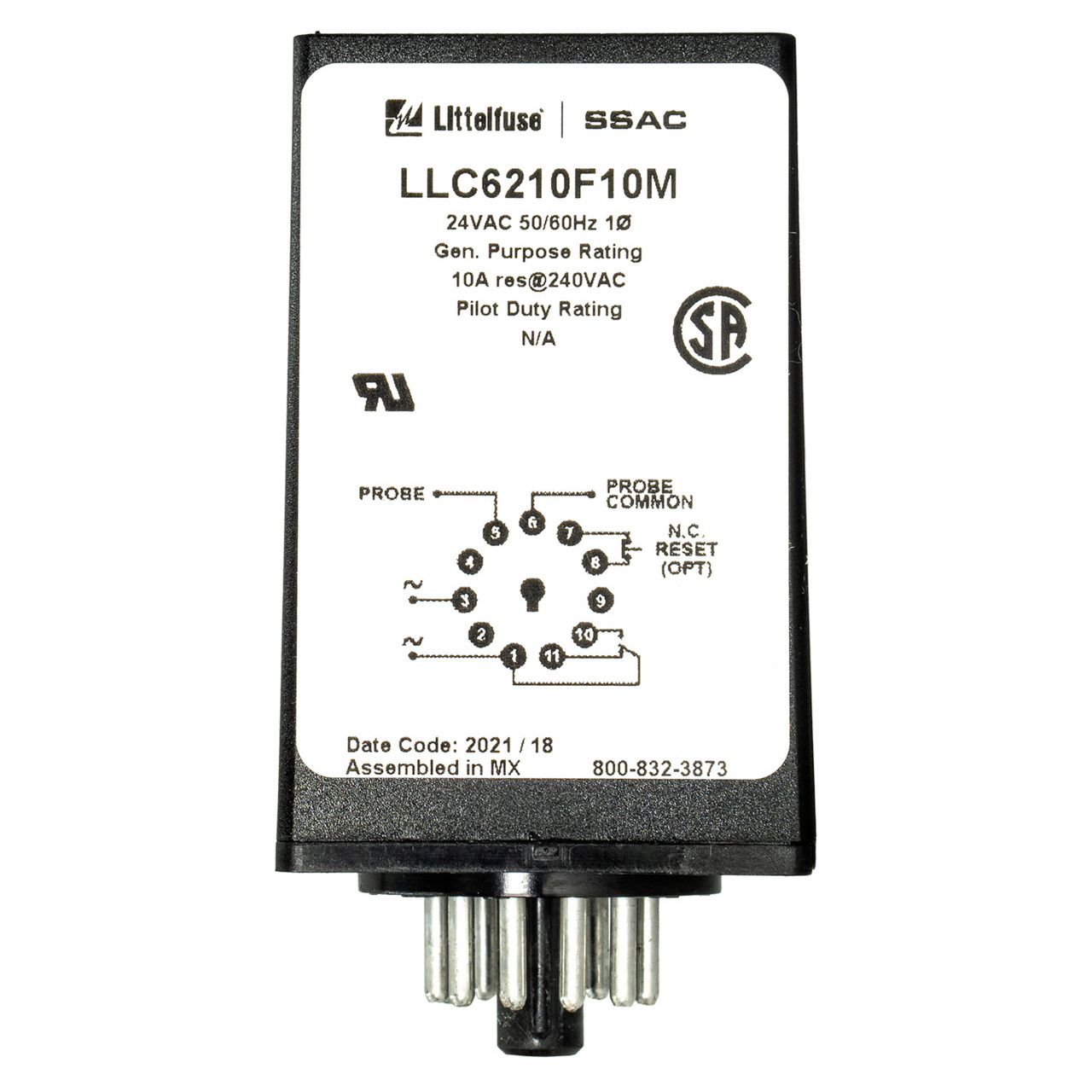

LLC6210F10M

Name: LIQUID LEVEL-CUTOFF 24VAC 10S
Brand: Littelfuse

Product Status| Activei

LLC6210F10M

LIQUID LEVEL-CUTOFF 24VAC 10S | Series: LLC6

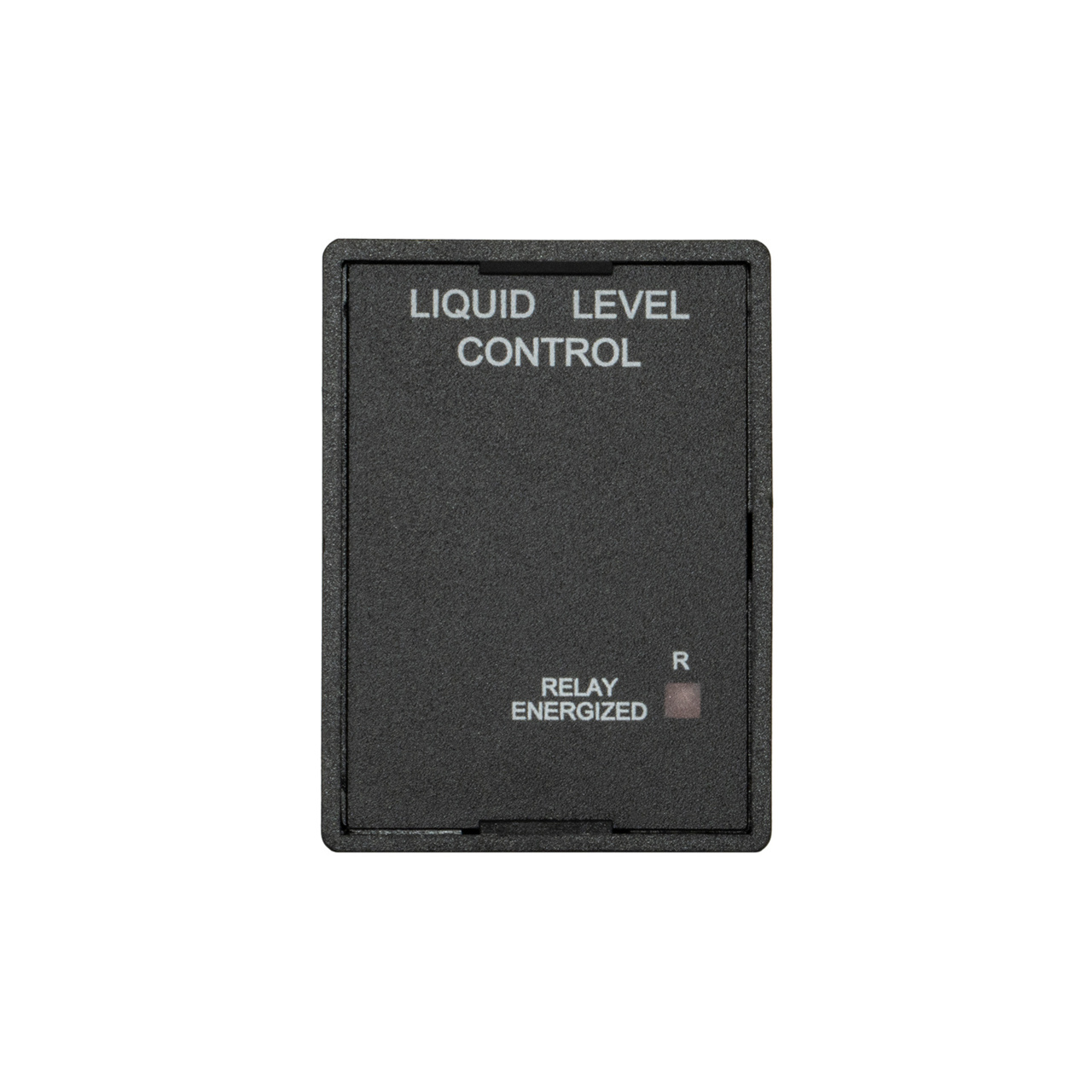

LLC6210F10M is a low level, conductive liquid level control with ac input voltage of 24, a fixed time delay of 10 s, and sensing resistance fixed at 10 kΩ.

Property	Value
Input Voltage (V)	24 Vac
Output Form	Non-isolated SPDT
Time Delay Range (s)	10 s fixed

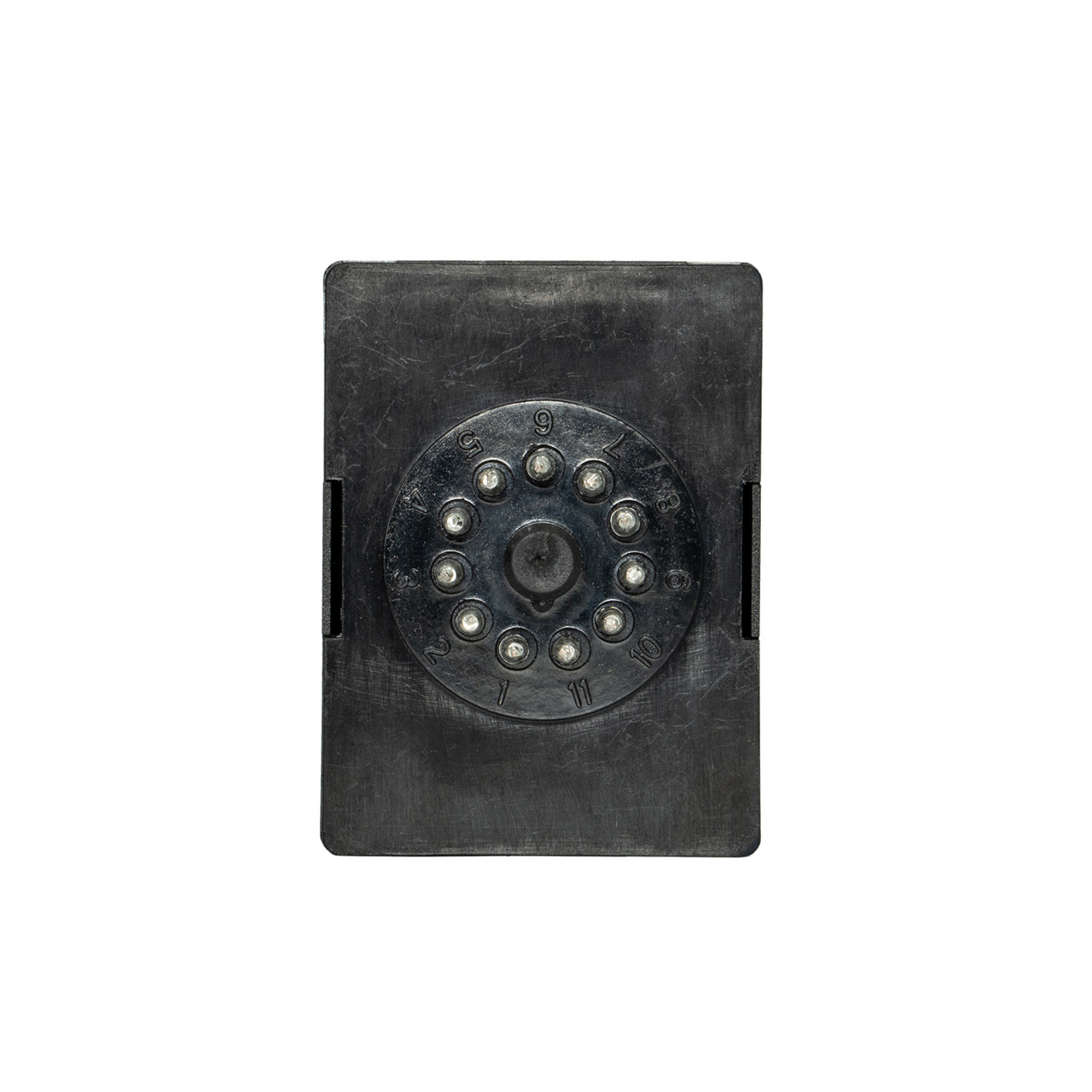

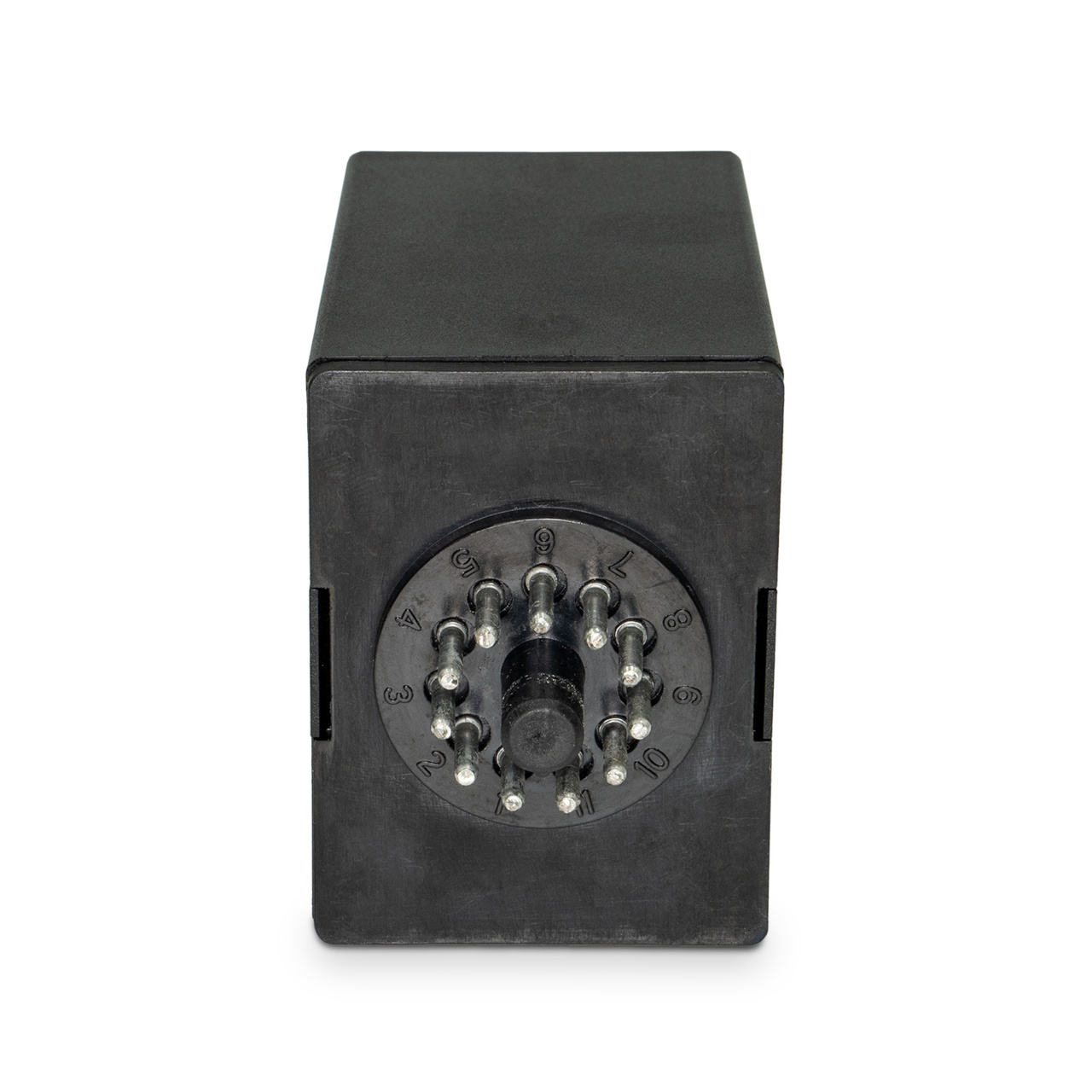

Termination Type	11-pin relay type
Dimensions	2.91 H x 2.39 W x 1.78 D in. (73.9 x 60.7 x 45.2 mm)
Weight (kg)	0 Kg (kilogram)
Control Type	ON/OFF (single level) resistance sensor with built-in time delay to prevent rapid cycling
Humidity	95% non-condensing
Input AC Line Frequency (Hz)	50 / 60
Input Tolerance (%)	-0.35
Output Load Rating (VA)	10 A resistive @ 240 Vac; 1/4 hp @ 125 Vac; 1/2 hp @ 250 Vac
Output Type	Electromechanical relay
Repeat Accuracy (%)	±10%
Reset Time (ms)	Manual / automatic reset
Sense Resistance Tolerance	±10% fixed
Sense Resistance (Ω)	10
Sense Voltage	12 Vac nominal at probe terminals
Surge Protection	IEEE C62.41-1991 Level A
Time Delay Tolerance (%)	±20%
Isolation Voltage	≥2500 Vrms input to output
Mounting Method	Plug-in socket
Operating Temperature Max (°C)	60
Operating Temperature Maximum Fahrenheit	140
Operating Temperature Minimum Celsius	-40
Operating Temperature Minimum Fahrenheit	-40
Storage Temperature Maximum Celsius	80
Storage Temperature Maximum Fahrenheit	176
Storage Temperature Minimum Celsius	-40
Storage Temperature Minimum Fahrenheit	-40
