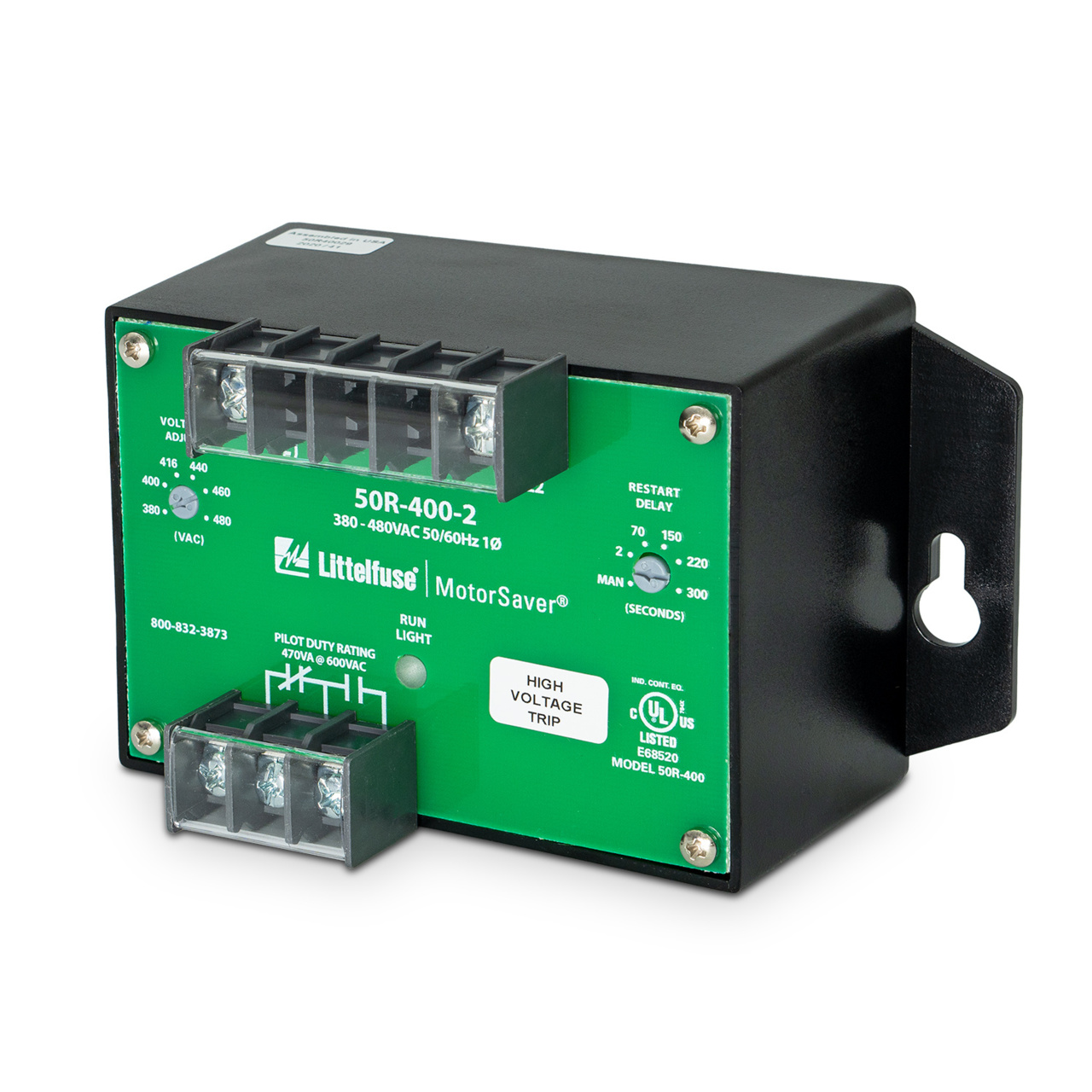

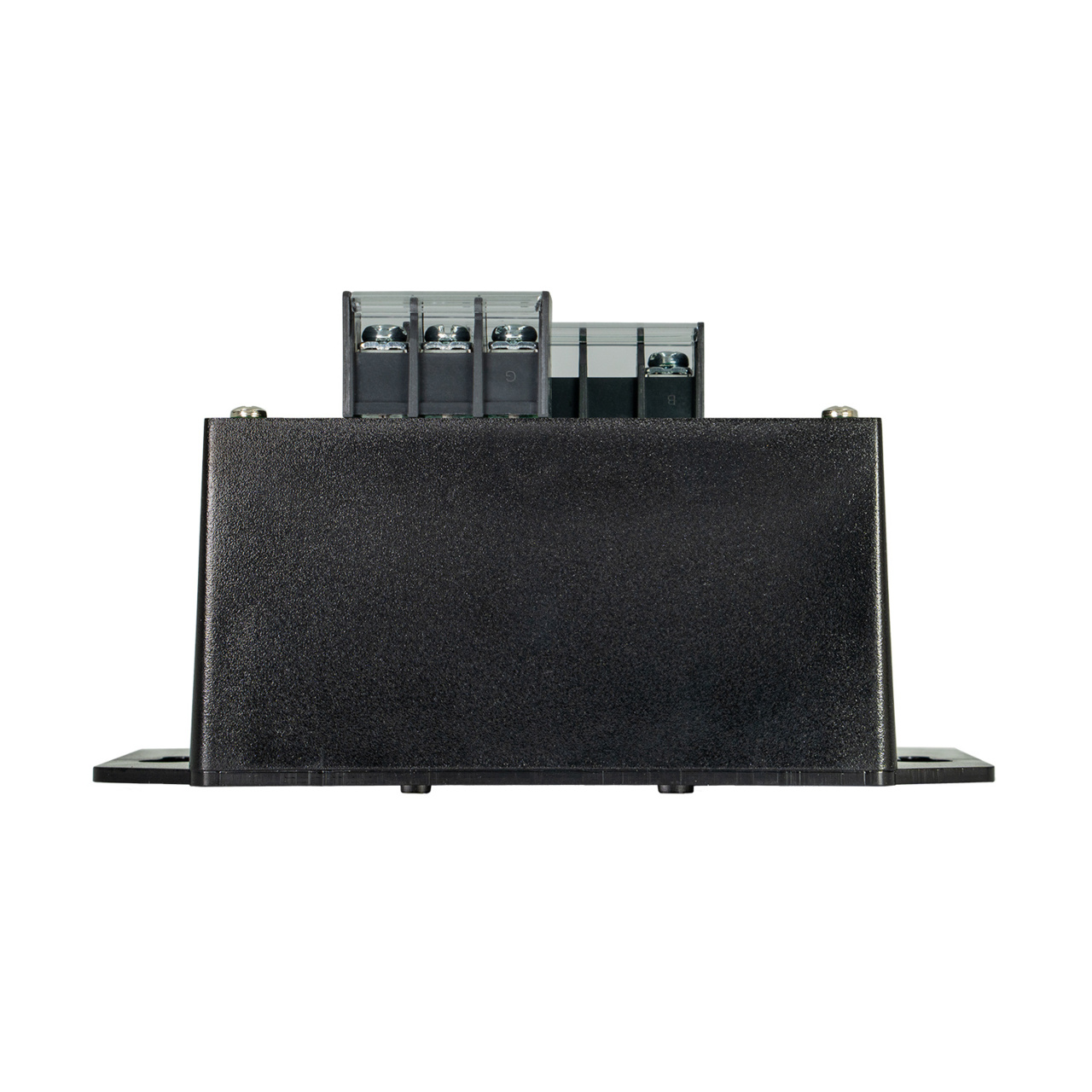

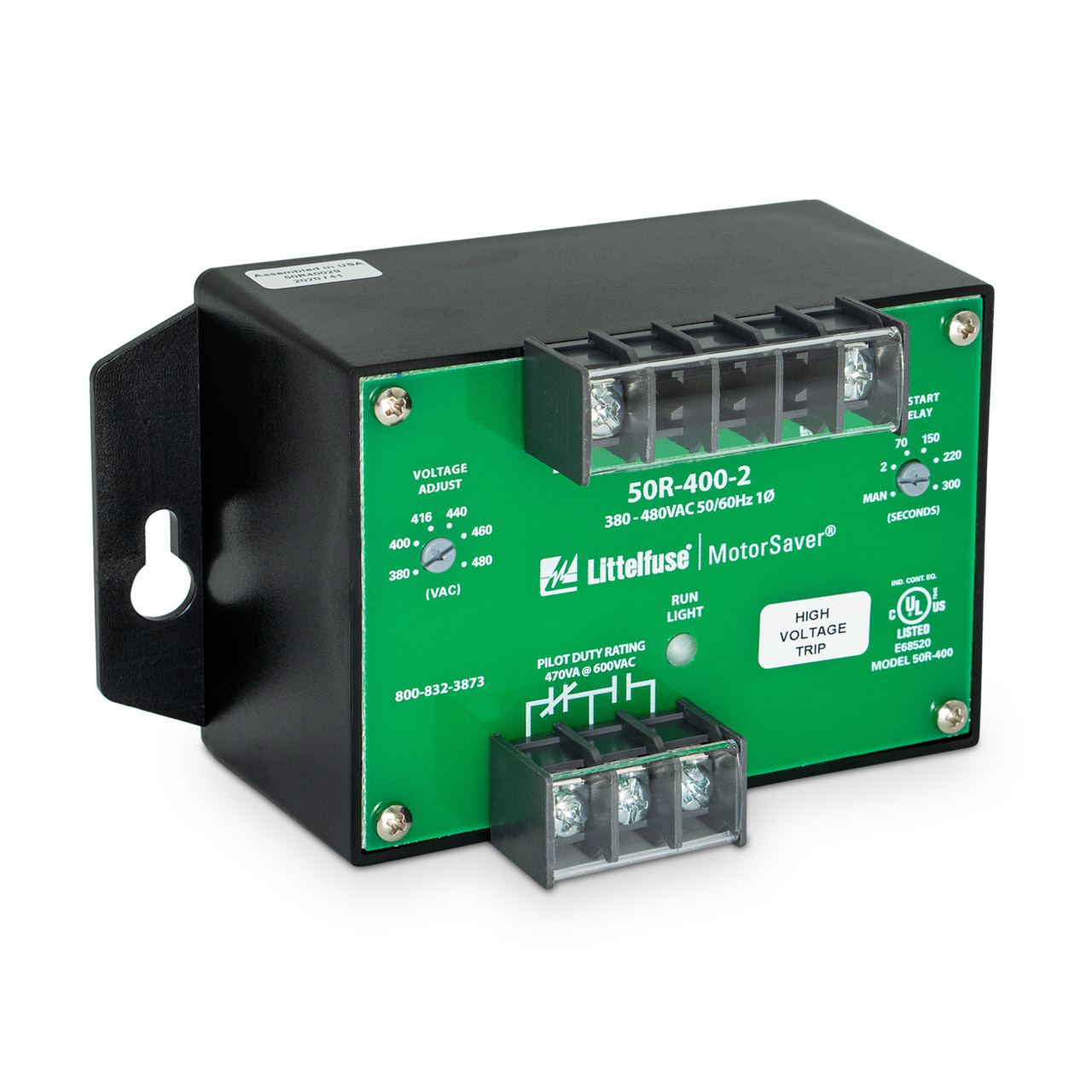

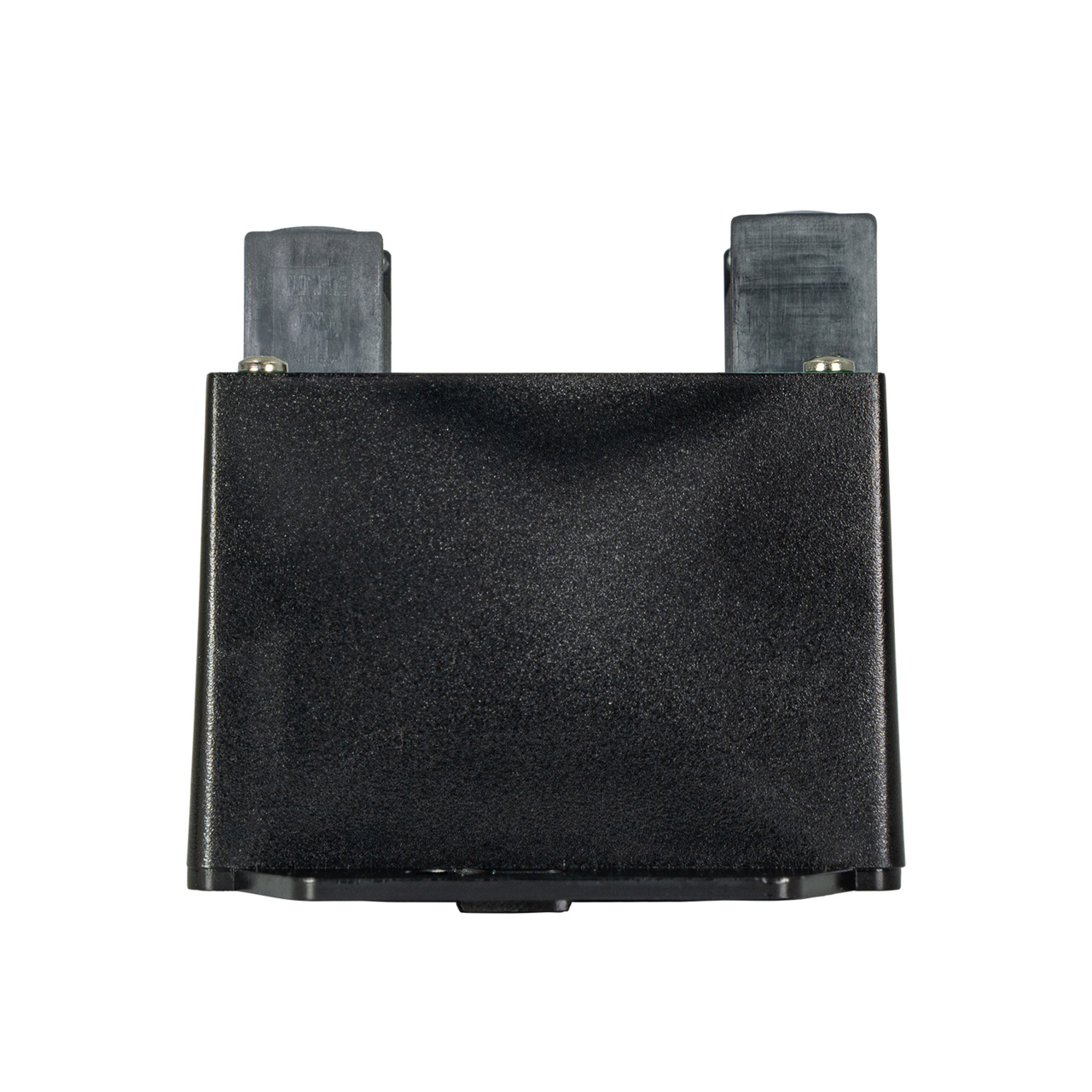

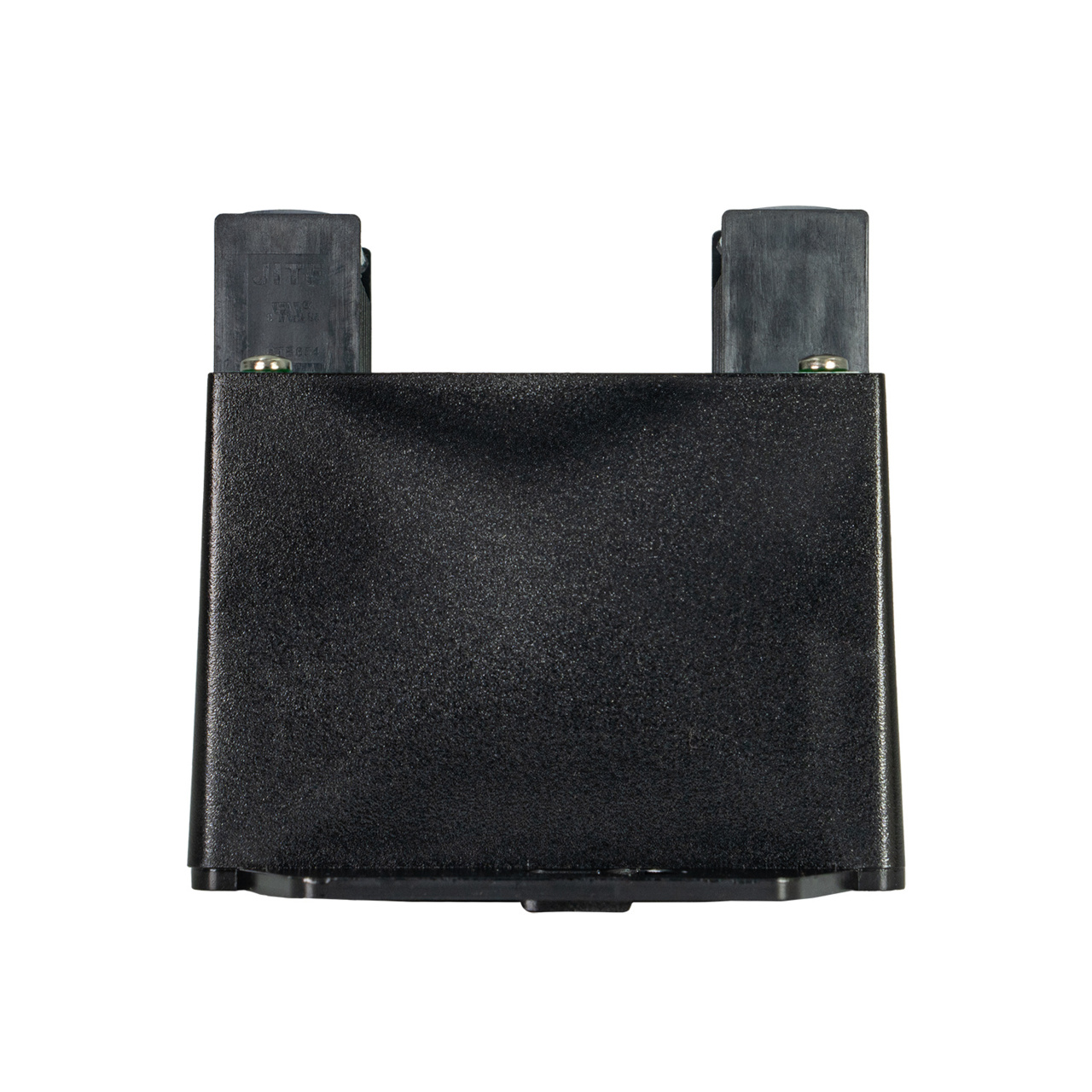

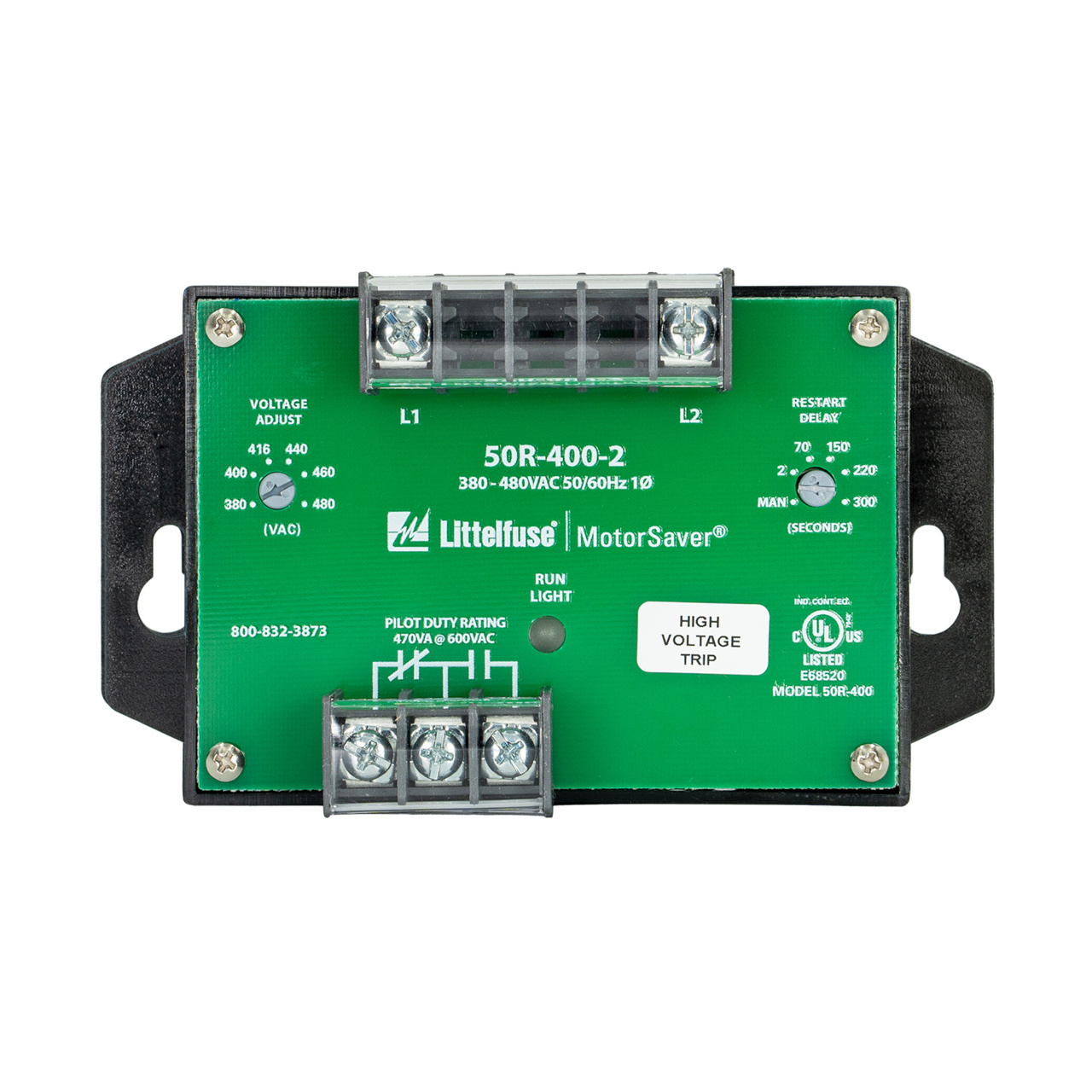

50R40029
1-PHASE VM/ 380-480V/ ADJ RD/ | Series: 50R Voltage RelaysThe 50R single-phase voltage monitor has a voltage-sensing circuit which constantly monitors the single-phase power for a low voltage condition. Single-phase motors on fans, compressors, air conditioners, heat pumps, well pumps, sump pumps and small conveyor motors are all applicable to the Model 50R.
When a harmful condition is detected, the output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.
| Property | Value |
|---|---|
Input Voltage (V) | 380 - 480 Vac |
Output Form | SPDT - 1 Form C |
Termination Type | Torque: 7 in-lbs; Wire Size: 12 - 18 AWG |
Dimensions | 2.93 H x 5.27 W x 2.95 D in. (74.4 x 133.9 x 74.9 mm) |
Weight (kg) | 0 Kg (kilogram) |
Humidity | 10 - 95% non-condensing per IEC 68-2-3 |
Input AC Line Frequency (Hz) | 50 / 60 (50 will increase all delay timers by 20%) |
Maximum Input Power (W) | 5 |
Output Load Rating (VA) | Pilot Duty: 470 VA @ 600 Vac; General Purpose: 10 A @ 240 Vac |
Overvoltage Reset Voltage (%) | 107% |
Overvoltage Trip Voltage (%) | 110% |
Restart Delay Range | Manual; 2 - 300 s |
Trip Delay Range | 4 s |
Undervoltage Reset Voltage (%) | 93% |
Undervoltage Trip Voltage (%) | 90% |
Mounting Method | #8 screws |
Operating Temperature Max (°C) | 70 |
Operating Temperature Maximum Fahrenheit | 158 |
Operating Temperature Min (°C) | -20 |
Operating Temperature Minimum Fahrenheit | -4 |
Storage Temperature Maximum Celsius | 80 |
Storage Temperature Maximum Fahrenheit | 176 |
Storage Temperature Minimum Celsius | -40 |
Storage Temperature Minimum Fahrenheit | -40 |
