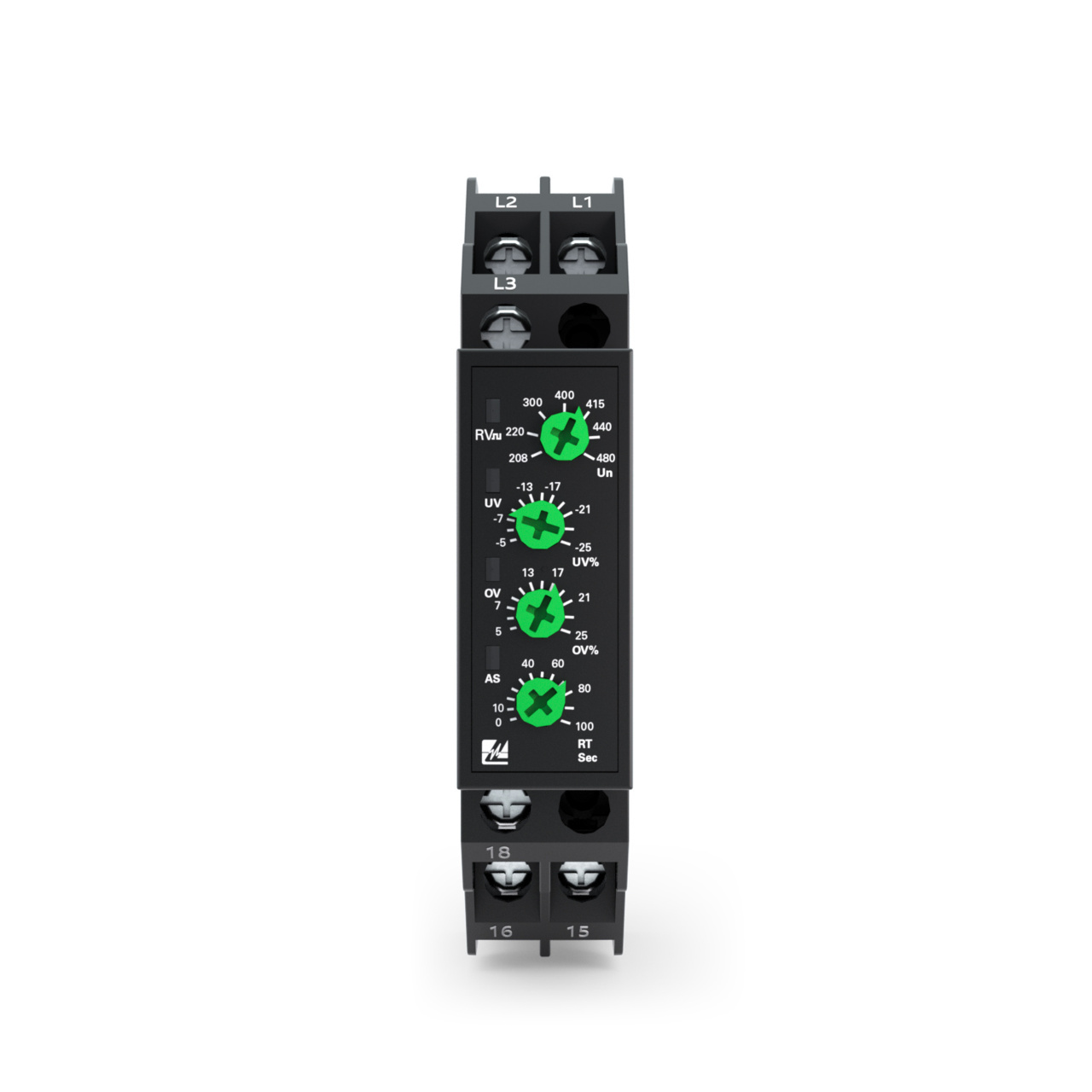

VM110-00-22
VMR 208-480 VAC, Ph.&V Control -OFF Dela | Series: VM110
| Property | Value |
|---|---|
Frequency (Hz) | 50 / 60 Hz, ±3 Hz |
Humidity | 5 to 95% (Rh) |
Input AC Line Frequency (Hz) | 50 / 60 Hz, ±3 Hz |
Input Tolerance (%) | -12% to +10% |
Input Voltage (V) | 208 - 480 Vac |
Insulation Resistance (Ω) | > 50 kohm |
Mount Method | Base / DIN-rail |
Operating Temperature | 15° to 60°C |
Output Contacts | 5 A at 250 Vac / 30 Vdc (Resistive) |
Output Form | 1 Changeover (Form C) |
Overvoltage Trip Voltage (%) | 5 to 25% of supply |
Phase Loss | Applicable feature |
Power Consumption | 4.5 VA |
Protection Class | IP20 for Terminals, IP40 for Housing and IP50 for front facia |
Relay Contacts Config | 1 Changeover (Form C) |
Repeat Accuracy (%) | ±5% |
Reset Time (ms) | Fixed (5 s) & selectable (550ms to 100 s) |
Special Function | Phase and Voltage Control |
Storage Temperature Maximum Celsius | 80 |
Storage Temperature Minimum Celsius | 20 |
Supply Voltage AC | 208-480 |
Termination Type | Screw terminal connection |
Trip Time | Fixed (5 s) & selectable (550ms to 100 s) |
Type of Detection | Phase loss, Under-voltage, Over-voltage, Asymmetry |
Undervoltage Trip Voltage (%) | -5 to -25 % of supply |
