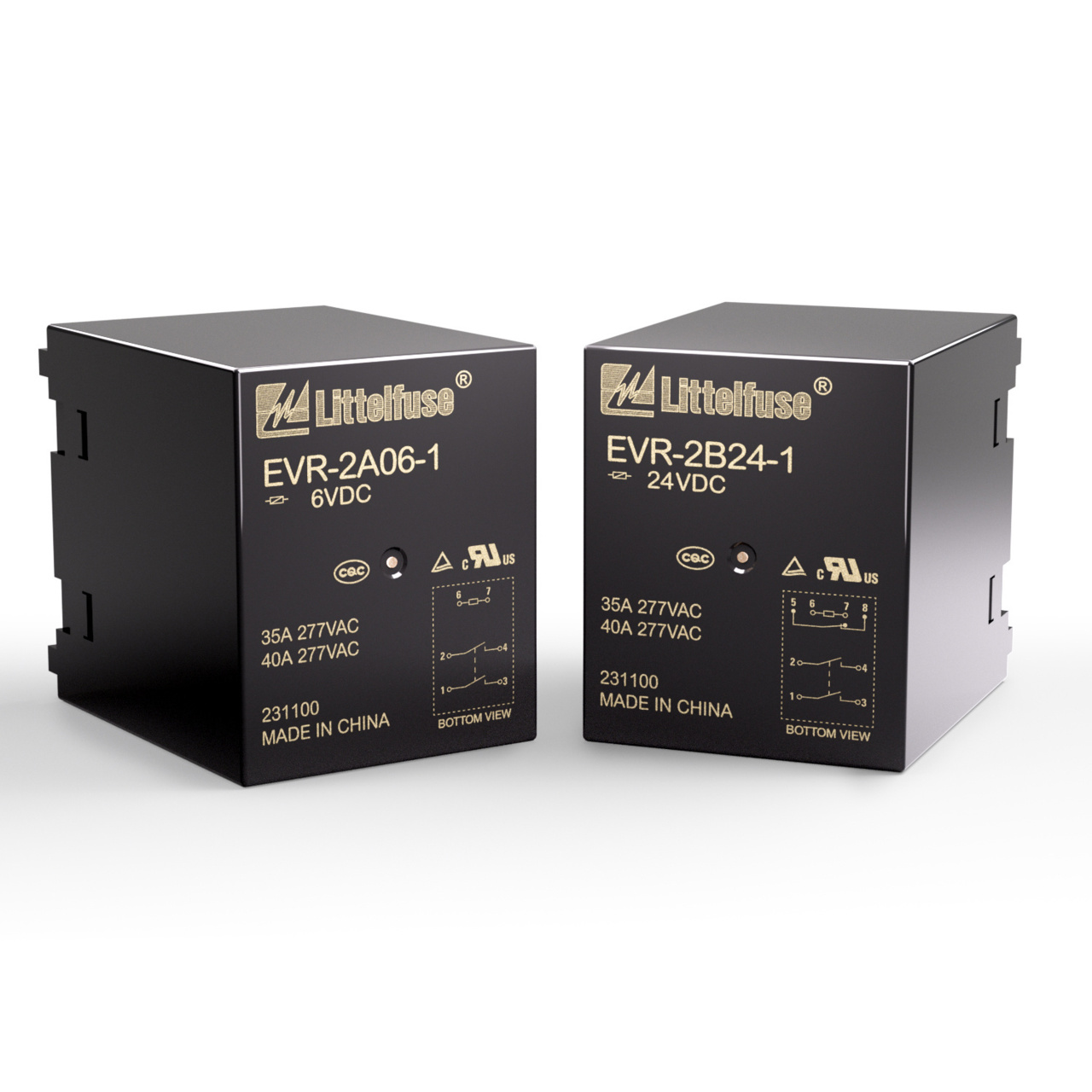

The EVR Series printed circuit board (PCB) two-pole (2P) ac power relay is designed to switch EV charging applications on and off. Its extended contact gap of greater than 3 mm provides better isolation and allows for usage in higher elevation environments. The very compact form factor has a low temperature rise and heavy-duty power switching current up to 40 A/277 V ac. This relay family enables compliance with all EV charging infrastructure standards such as IEC 62955, IEC 62752 and UL 2231.
- Low contact resistance
- Contact rating up to 40 A
- Meets requirements in IEC 62752, IEC 62955, and UL 2231
- Certified to IEC 61810-1: Contact load category CC 2 50,000 cycles @ 85 °C (185 °F) for 35 A load
- Mirror contact mechanism according to IEC 60947-4-1
- Contact gap > 3 mm
- Load switching endurance: 40 A load: 10,000 cycles @ 85 °C (185 °F) 35 A load: 50,000 cycles @ 85 °C (185 °F)
- PCB terminals
- Compact size
- Low temperature rise at rated current
- Suitable for Mode 2 and Mode 3 EV charging defined by IEC 61851-1 and AC Level 2 EV charging defined by SAE J1772
- Single form factor supports global standards and simplifies inventory
- Enables compliance to IEC 61851-1 for switching of main current path
- Enables detection of power contacts welding
- Meets overvoltage category III requirement and provides enhanced protection against shock and vibration for added safety and longevity
- Provides longer lifetime expectancy
- Offers easy installation onto PCBs, enabling high-speed assembly and replacement of DIN rail-mounted ac contactors and associated wiring & assembly
- Smaller footprint than two single-pole relays for similar current rating adding design flexibility
EVR Parts
Link has been copied to clipboard
Filters
EVR Applications
- EV charging station (charging pile)
- Ac wallbox
- In-Cable Control Box (ICCB)
