97297

Product Status| Obsoletei
Forward Reverse Relay Modules - 97297 AR JPG
Littelfuse-Other-Products-and-Accessories-97297

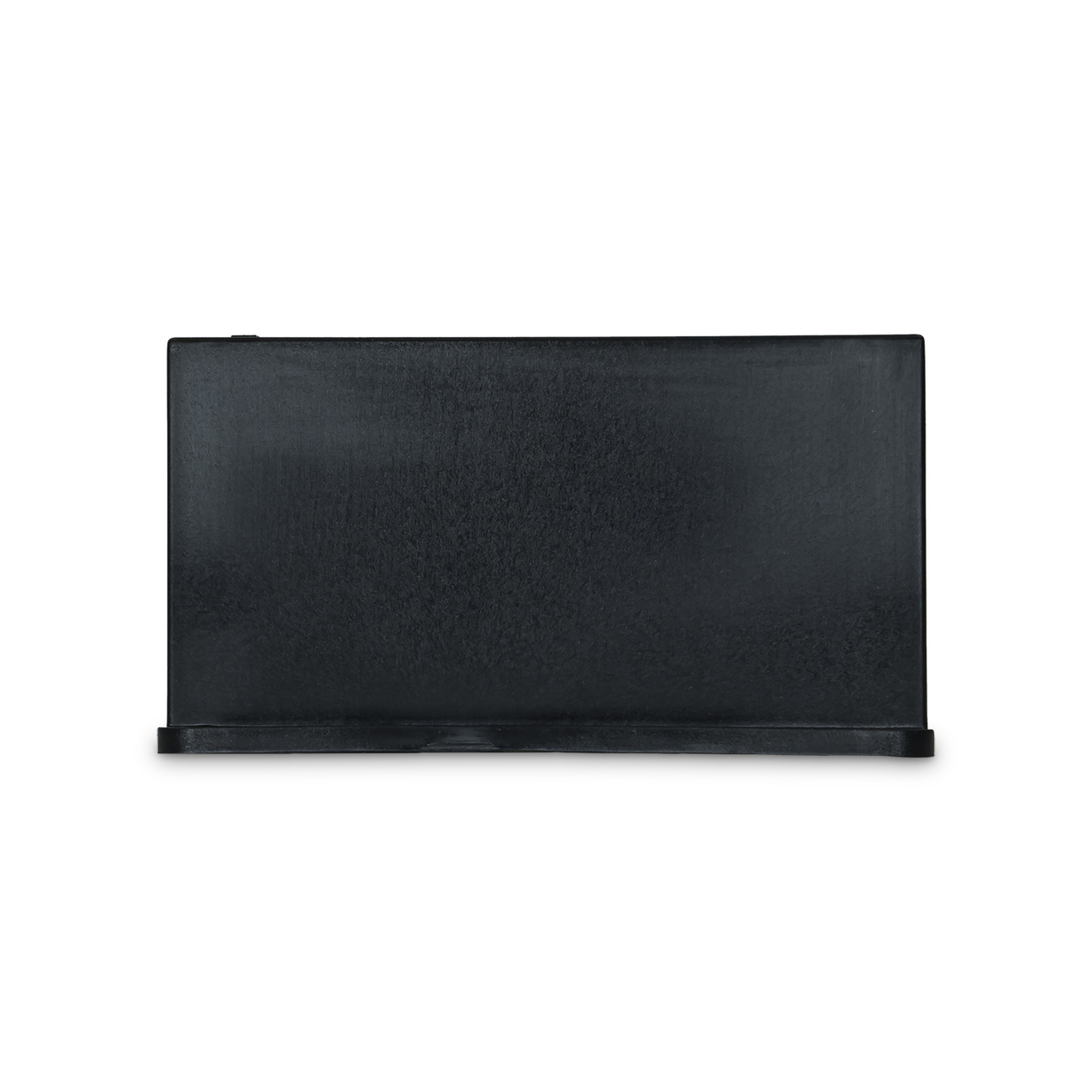

Forward Reverse Relay Modules - 97297 SO Left JPG

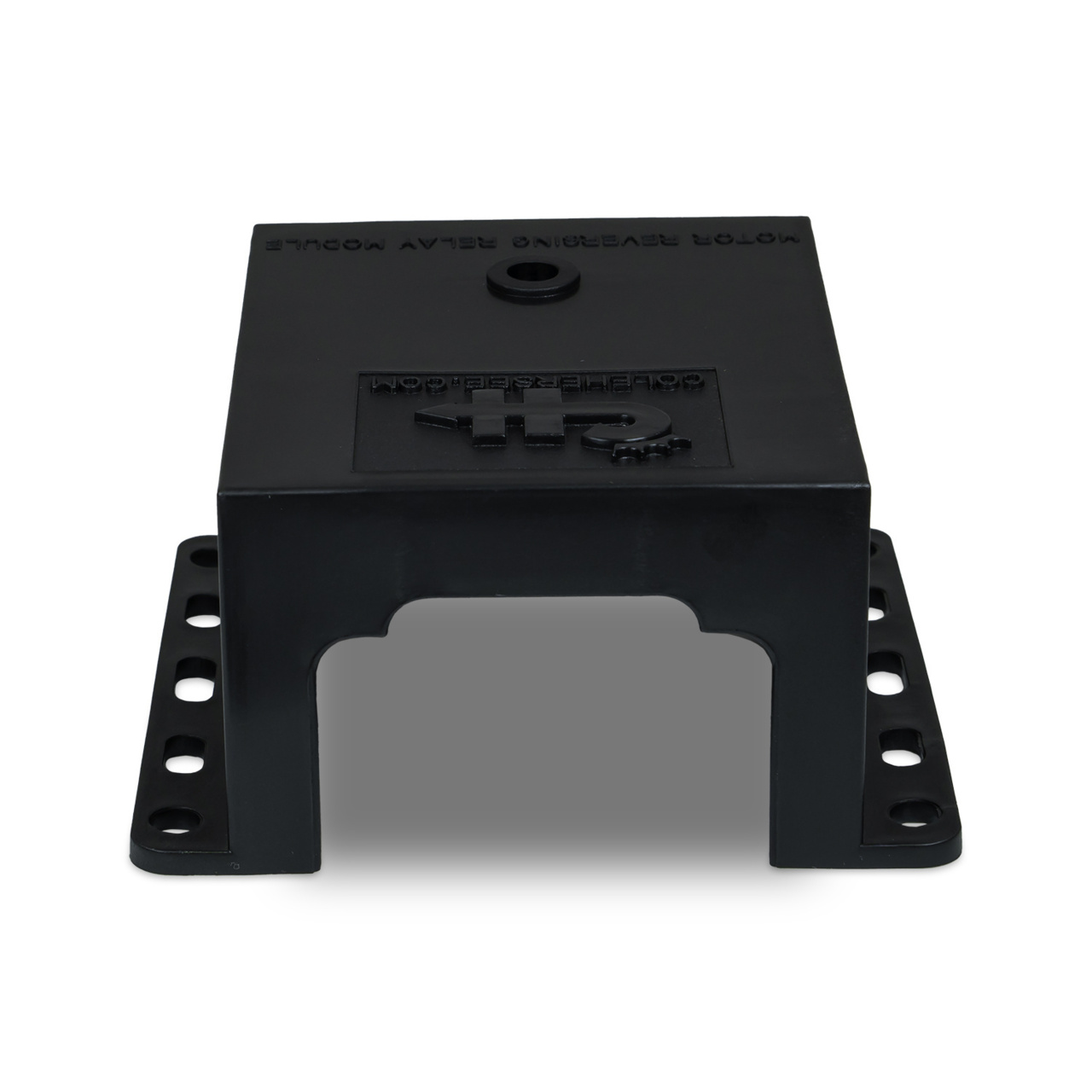

Forward Reverse Relay Modules - 97297 Back JPG

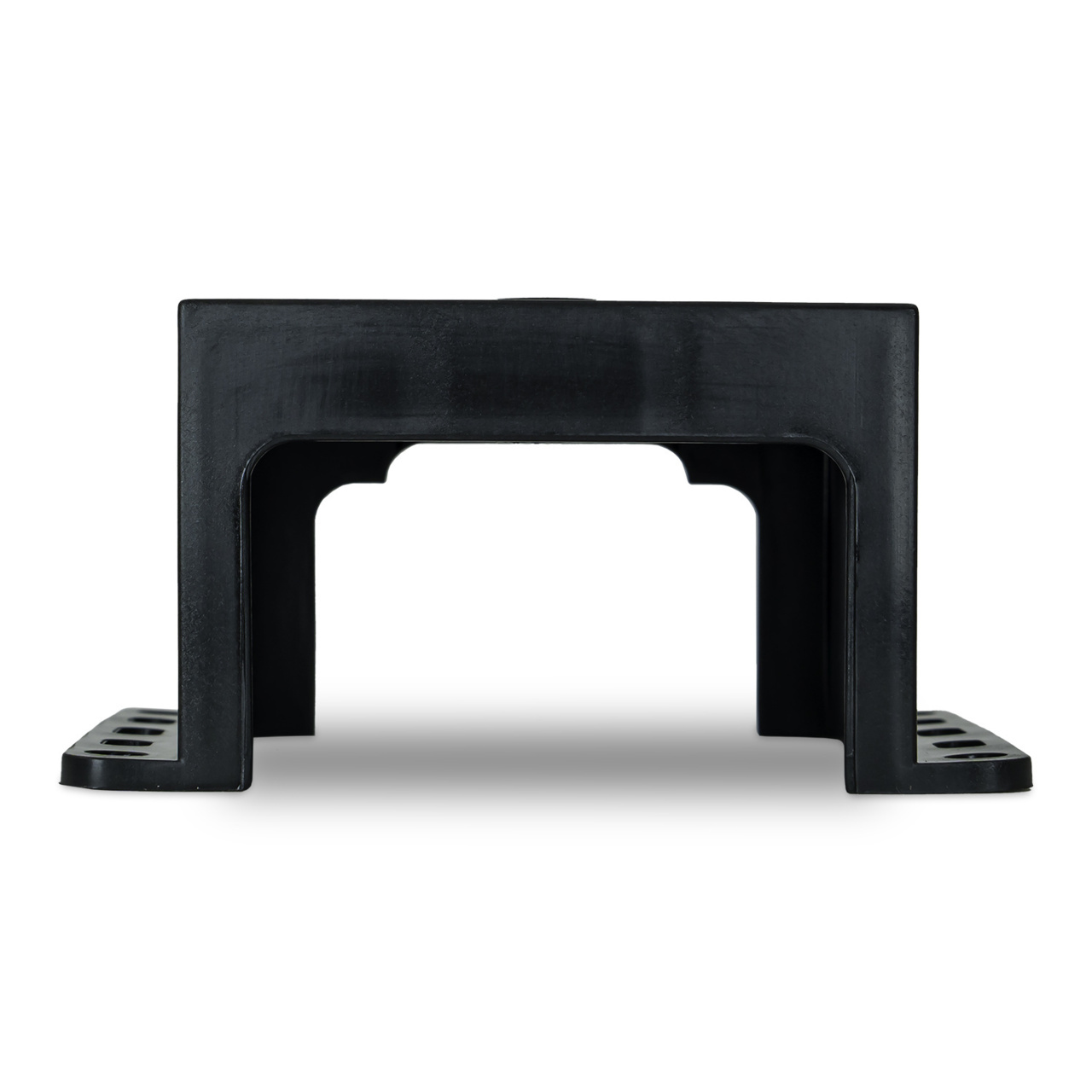

Forward Reverse Relay Modules - 97297 SO Front JPG

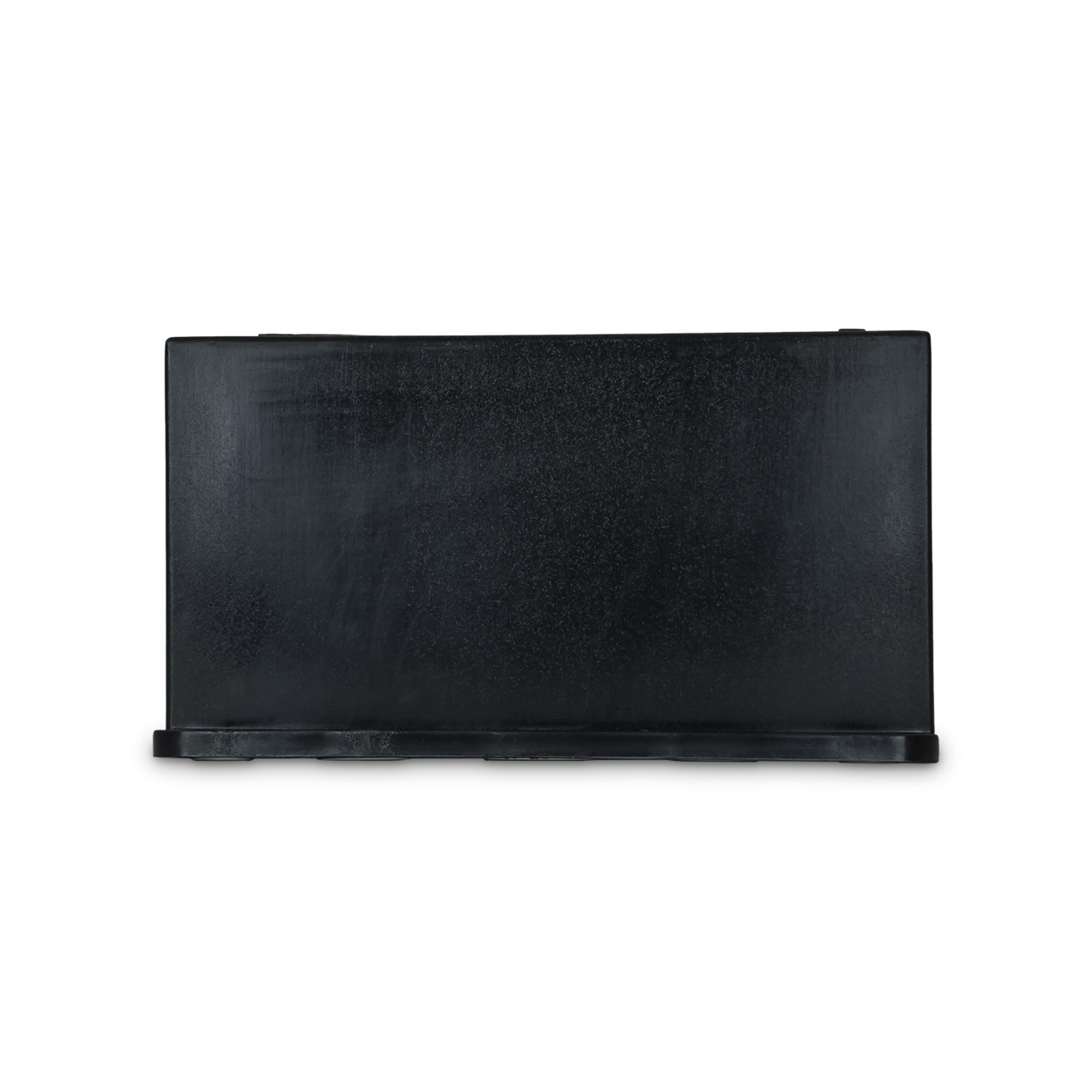

Forward Reverse Relay Modules - 97297 SO Right JPG

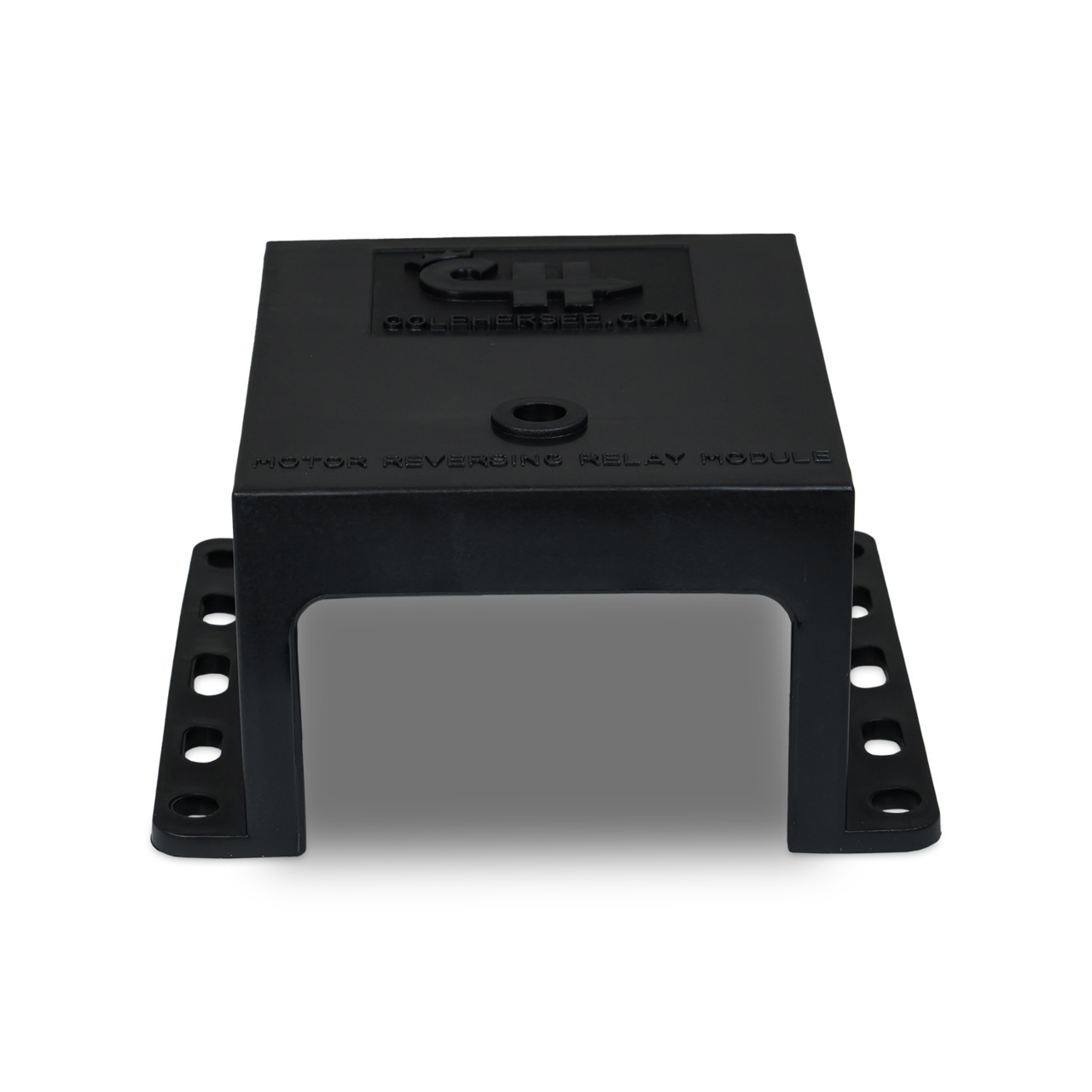

Forward Reverse Relay Modules - 97297 Front JPG

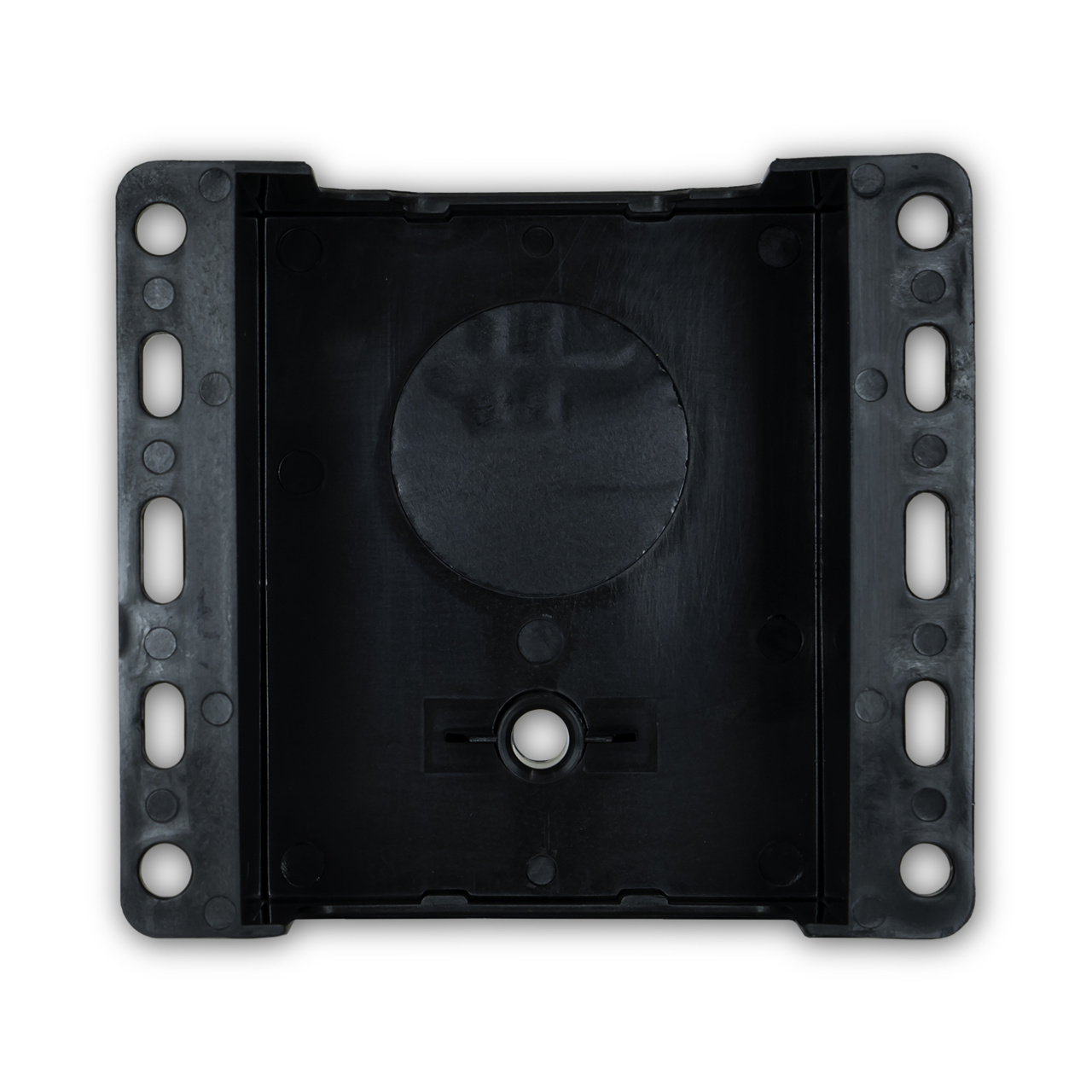

Forward Reverse Relay Modules - 97297 Bottom JPG

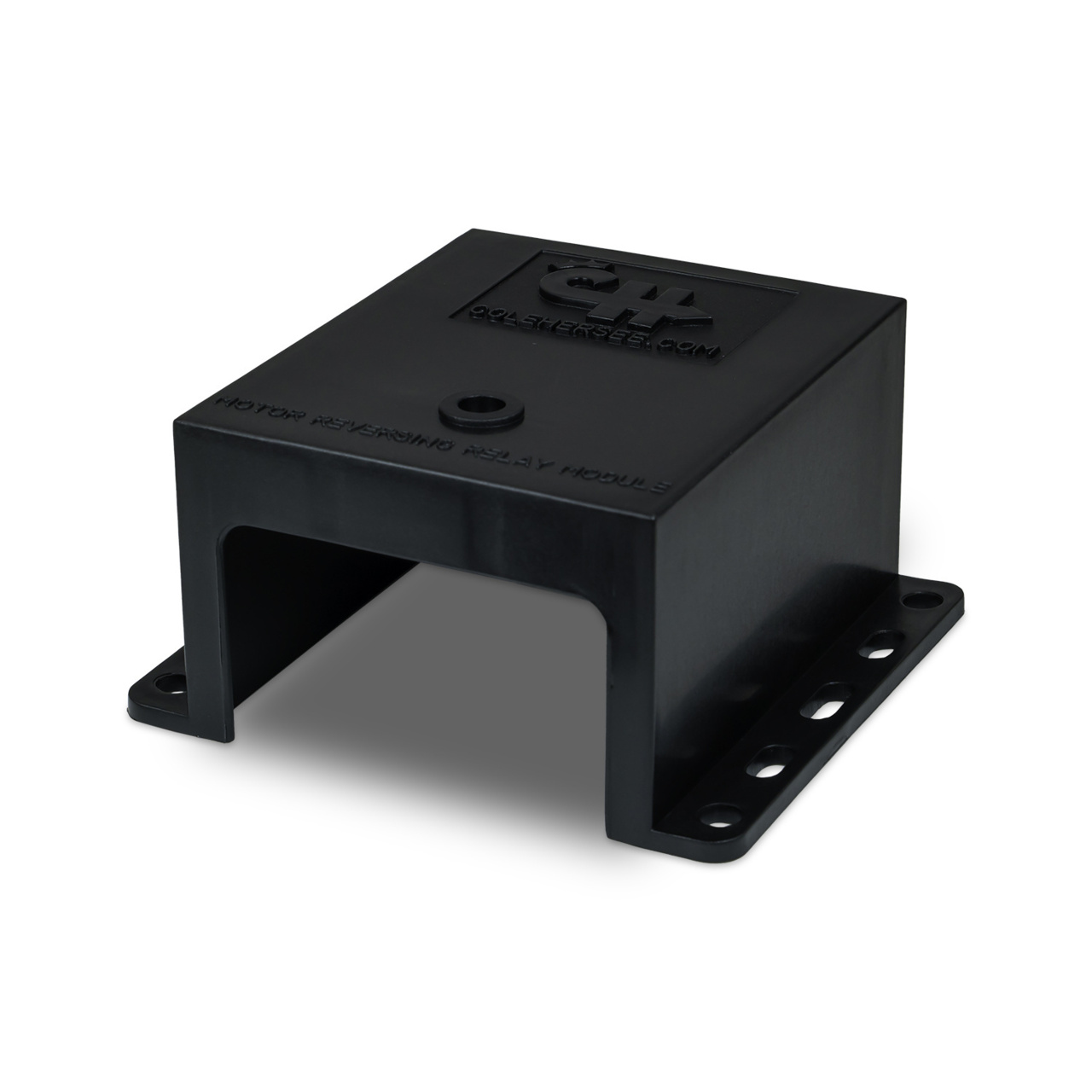

Forward Reverse Relay Modules - 97297 AL JPG

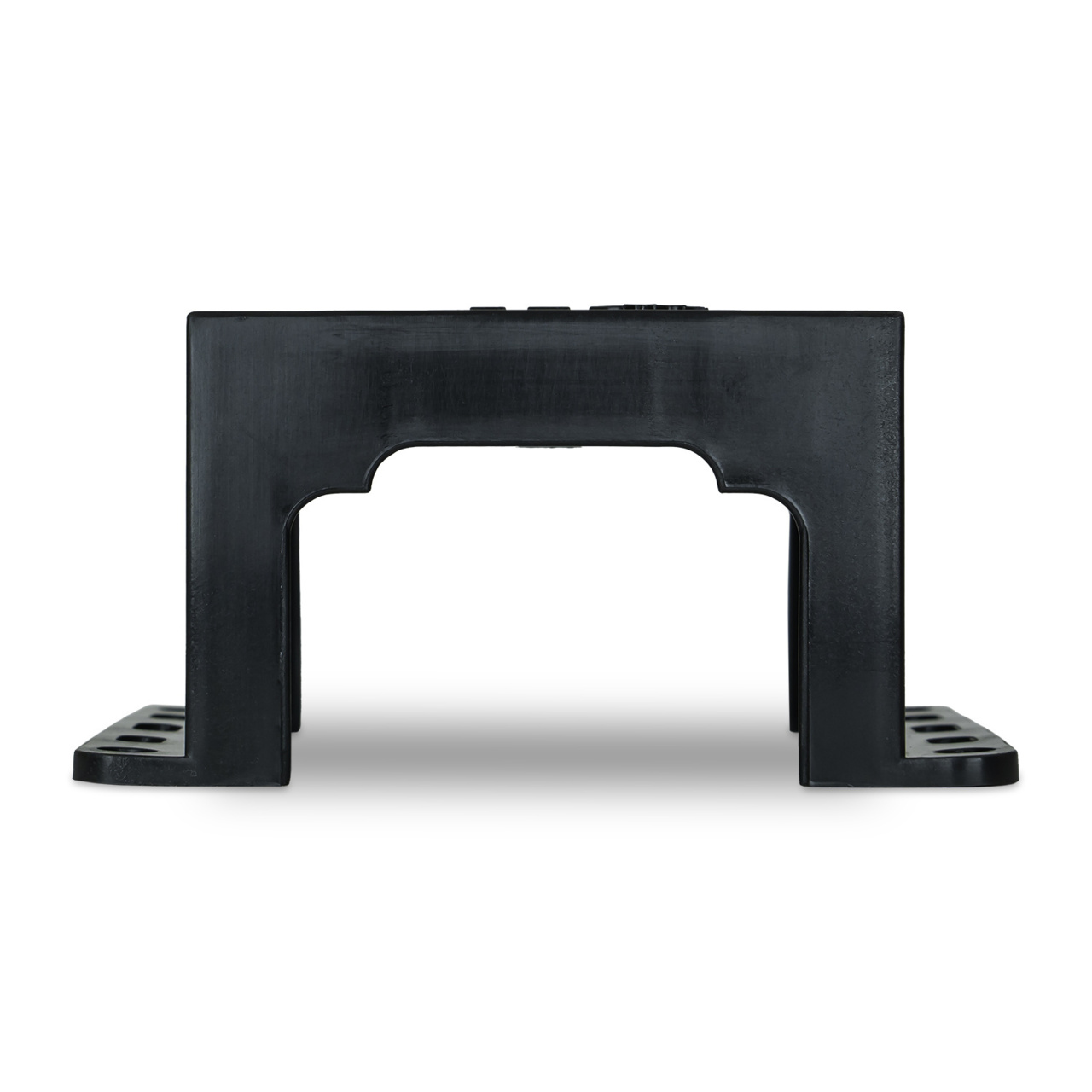

Forward Reverse Relay Modules - 97297 SO Back JPG

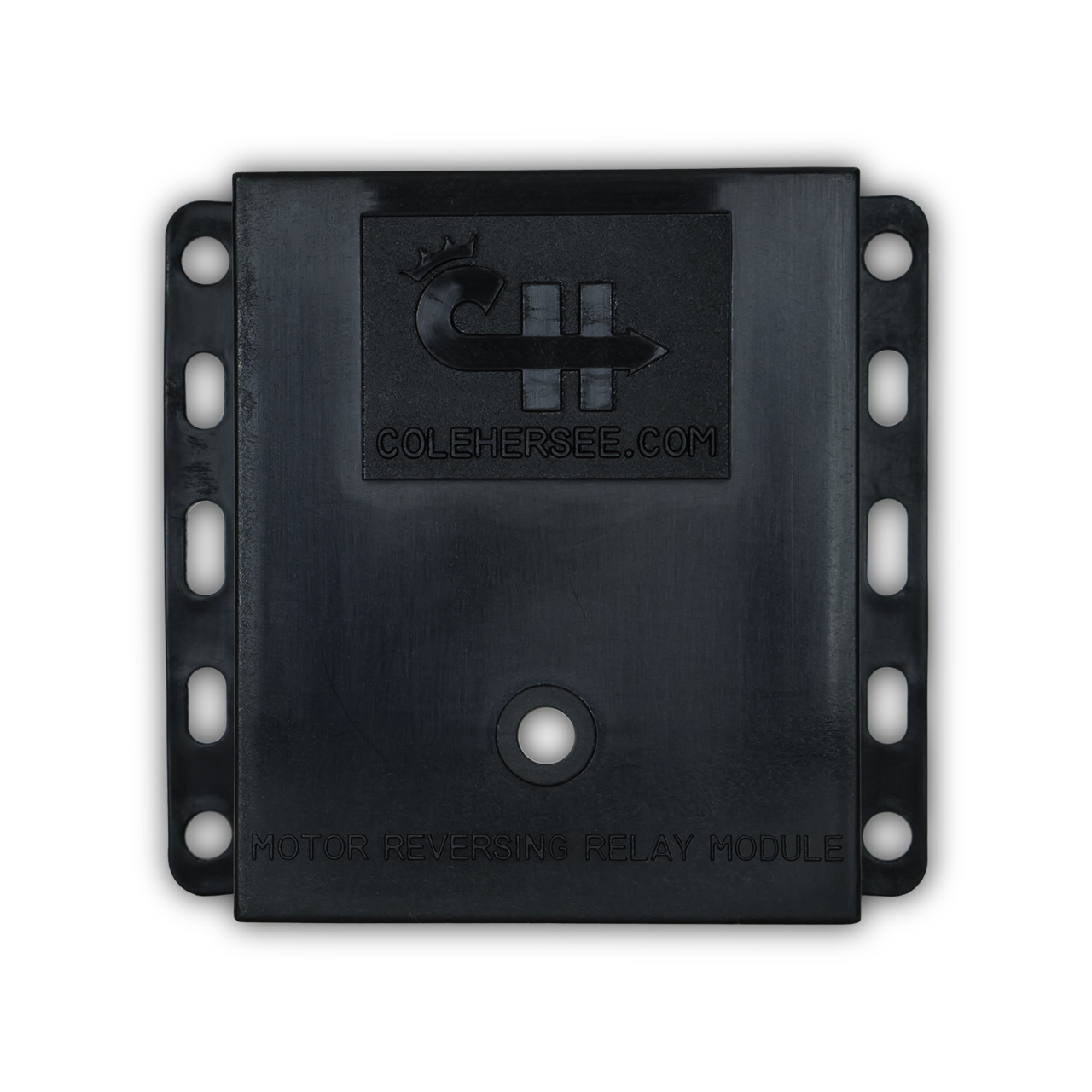

Forward Reverse Relay Modules - 97297 Top JPG

97297

COVER RELAY MODULE | Series: Forward Reverse Relay Modules
info

Ideal for tarp or lift applications. Also used on hoists, hatches, winches, snowplows, intake/exhaust fans, vehicle outriggers and other reversing applications. Module automatically reverses the direction of the motor when the appropriate control circuit is energized with a pulse from a control switch. Dynamic braking stops the motor when the switch returns to Off. Low-profile module saves space. Studs are securely anchored in epoxy.

PropertyValue
Housing
Plastic
  • Dynamic braking.
  • Carries a heavy load current.
  • Intermittent or continuous operation.
  • High performance silver tin oxide contacts assure long cycle life.
  • Fully sealed to IP67 with high strength epoxy for total moisture protection to withstand very harsh environments.
  • Ignition protected.
  • Tin-plated brass studs and hardware for corrosion resistance.
  • For intermittent operation, control switch should be Mom On-Off-Mom On; for continuous operation On-Off-On.

97297 Resources

Showing 1 to 1 of 1 Total Results
Share
Share
Part NumberPart DescriptionRoHSPb-FreeRoHS (2015/863/EU) CertificateREACH (SVHCs) DeclarationREACH (SVHCs)Halogen FreeIPC-Material Declaration
97297COVER RELAY MODULE
