24213

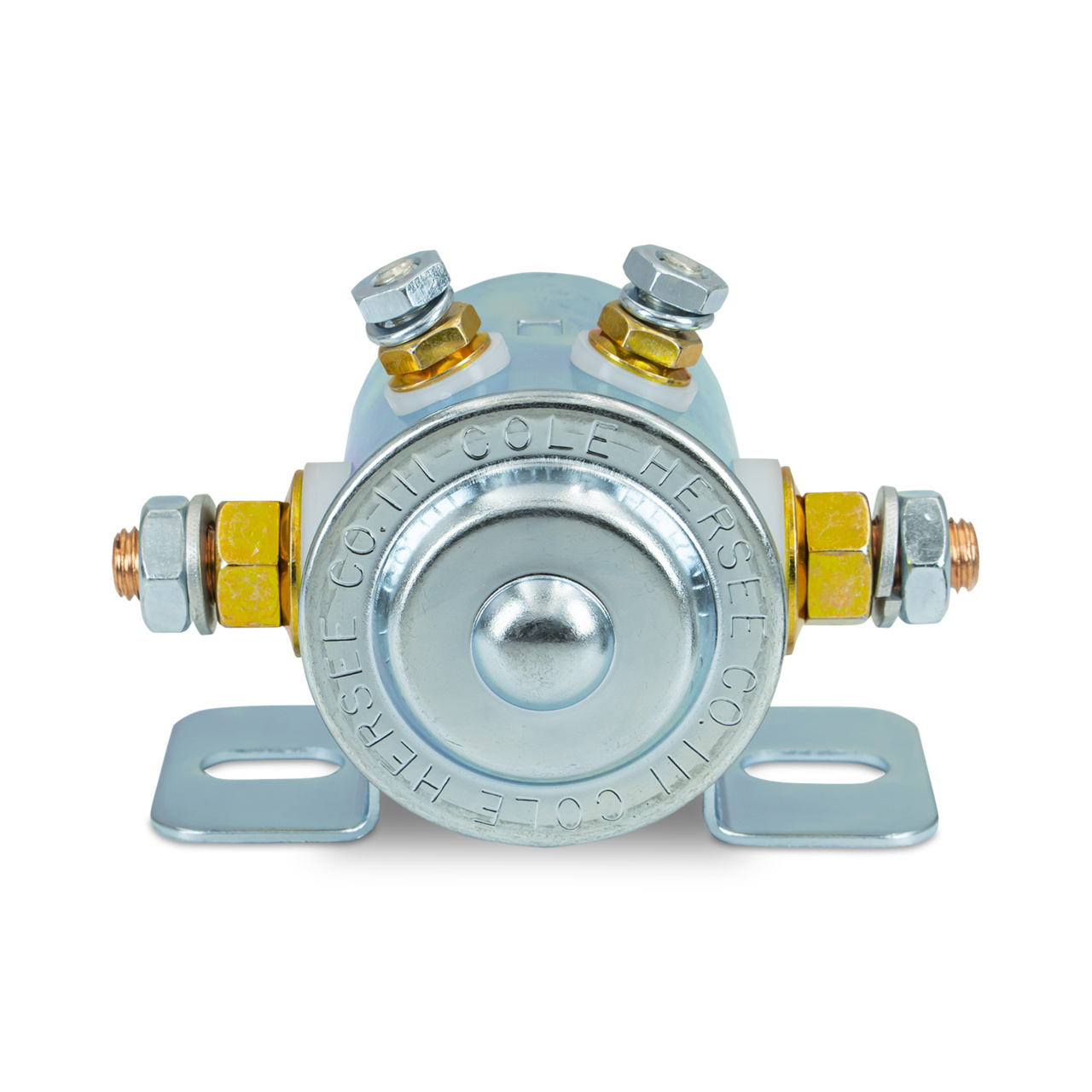

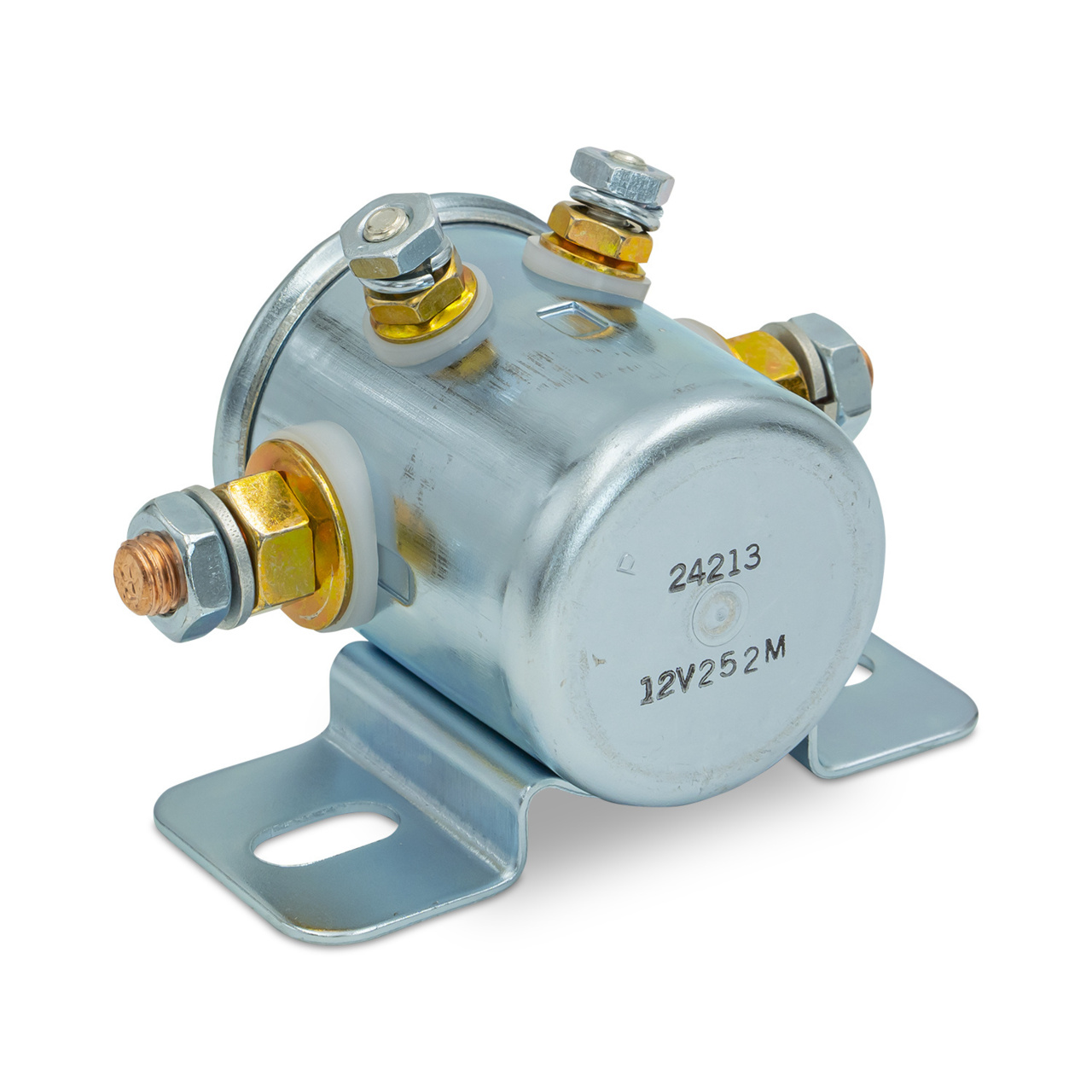

SOL 12V 17.5OHM CONT 4STUD BAG | Series: Continuous Duty SPSTThe 12 V 200 A Continuous-Duty SPST Series Insulated Solenoid Relay (24213) is designed with a plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts. This model features a 12 V coil and a coil impedance of 17.5 ohms.
This insulated solenoid features studs that are electrically isolated from the housing. The heavy-duty, durable contacts and the high contact force developed by the solenoid allow this relay to handle high current loads.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 200 |
Circuitry | SPST |
Contacts | Silver |
Normal Position | Normally Open |
Housing | Plated Steel |
Coil Type | Solenoid |
- 200 A continuous current rating
- 12 V coil and a coil impedance of 17.5 ohms
- Insulated coil design electrically isolates the studs from the housing
- SPST circuitry and normally open contacts
- Two large 5/16"-24 copper power studs and two small #10-32 steel coil studs (control circuit) are heavy and durable
- Flat bracket
- Included hex nuts and lock washers are bagged
24213 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 24213 | SOL 12V 17.5OHM CONT 4STUD BAG |  10/26/2021 | No |  CoC_RoHS9_24213 | REACH219_Declaration_(Contain)_24213 | Contains | Yes10/26/2021 | View More |
