24512-10

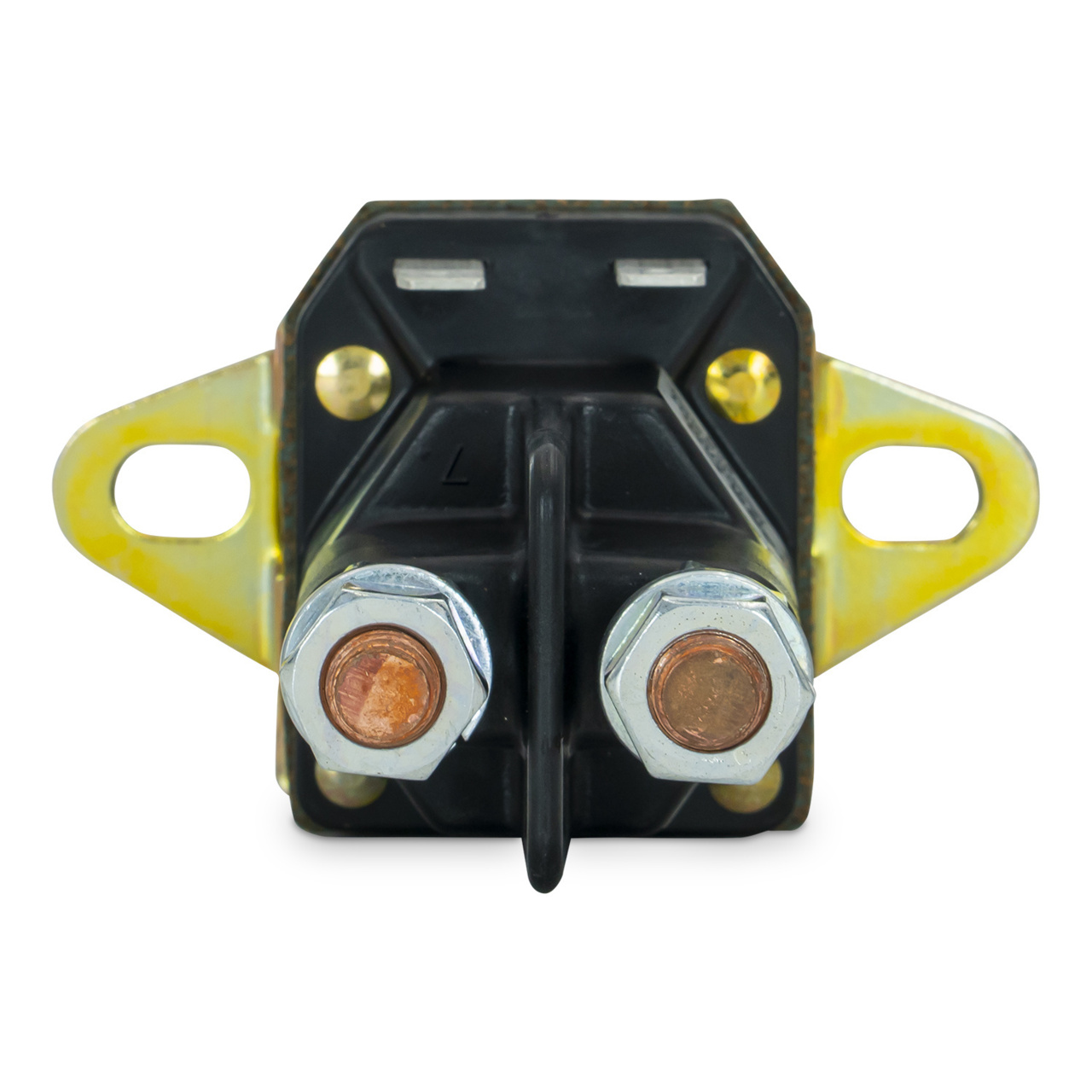

SOL 12V 16OHM CONT | Series: Plastic Body Continuous Duty SPST
Ideal for starting small engines in vehicles like lawn tractors, golf carts, and sweepers, this Plastic-Body Continuous-Duty SPST Series Starter Solenoid Relay (24512-10) features a 12 V insulated coil and two 0.25" (6.35 mm) blade coil terminals.
The Cole Hersee solenoid relay has a 100 A continuous current rating, silver contacts, and an F-style metal bracket.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 100 |
Circuitry | SPST |
Contacts | Silver |
Normal Position | Normally Open |
Housing | Plastic |
Coil Type | Solenoid |
Intermittent Time | 5 sec On - 5 min Off |
- Continuous current rating of 100 A and an inrush rating of 400 A @ 5 seconds ON, 5 minutes OFF, maximum of 20 seconds ON
- 12 V coil rating and 14 V maximum operating voltage
- Coil impedance of 16 ohms
- Silver contacts
- Insulated coil with two blade terminals
- F-style metal bracket
24512-10 Applications
- Small Engines
- Lawn Tractors
- Golf Carts
- Sweepers
